Panasonic CF-H2 - Description of Parts

10
Getting Started

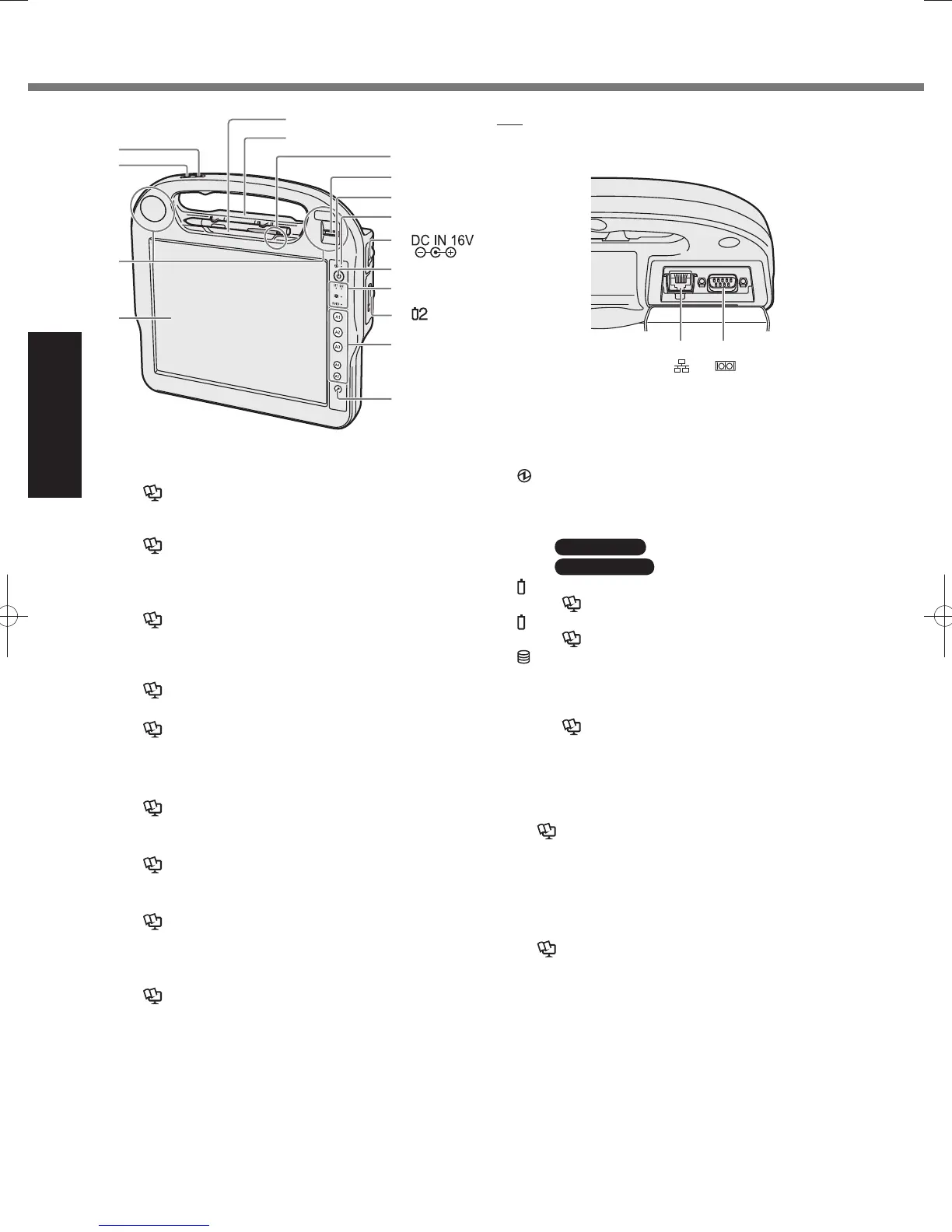

Description of Parts
A
B
C
D
F
E
H
I
G
J
K
L
M
N
O
J
Top
PQ
A : B1 Button
<Only for model with RFID Reader>

Reference Manual “RFID Reader”, “Hardware
Buttons”
<Only for model without RFID Reader>

Reference Manual “Hardware Buttons”
B : Barcode Reader Button*
1
/ B2 Button*
2
*
1
Only for model with Barcode Reader
*
2
Only for model without Barcode Reader

Reference Manual “Barcode Reader”, “Setup
Utility”
C : Wireless WAN Antenna
<Only for model with wireless WAN>

Reference Manual “Wireless WAN”
D : LCD

Reference Manual “Screen Input Operation”
E : Pen Holder
F : Smart Card Slot
<Only for model with Smart Card Slot>

Reference Manual “Smart Card”
G : Bluetooth Antenna
<Only for model with Bluetooth>

Reference Manual “Bluetooth”
H : Fingerprint Reader
<Only for model with Fingerprint Reader>

Reference Manual “Fingerprint Reader”
I : Ambient Light Sensor
Backlight will be turned off with a bright environment
so the battery operation time becomes long.

Reference Manual “Setup Utility”
J : LED Indicator
: Power status
Off: Power off/Hibernation
•
Green: Power on
•
Blinking green
•
Windows 7
: Sleep
Windows XP
: Standby
1
: Battery 1 status

Reference Manual “Battery Power”
2
: Battery 2 status

Reference Manual “Battery Power”
: Hard disk drive status
RFID:
<Only for model with RFID Reader>
RFID Reader status

Reference Manual “RFID Reader”
K : DC-IN Jack
L : Power Switch
M : Battery 2 Case
N : Application Buttons 1-5

Reference Manual “Hardware Buttons”
O : Security Button
P : LAN Port*
3
/ 2nd USB 2.0 Port *
4
*
3
Only for model with LAN
*
4
Only for model with 2nd USB 2.0 Port
Q : Serial Port

Reference Manual “Serial Port”
