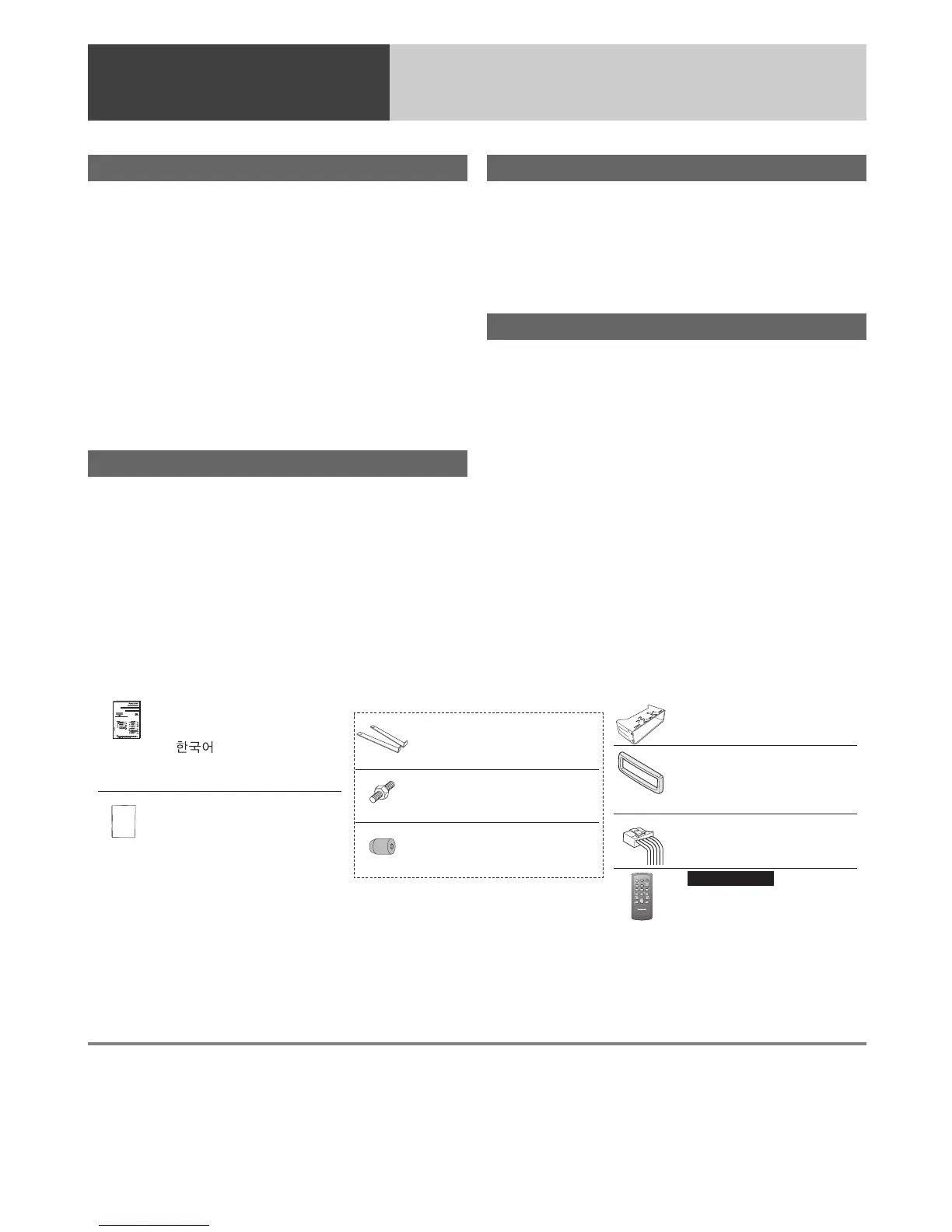

Specifications
YFM284C495CA PTW1205-2 Printed in China(Y)
Accessories
Operating Instructions
(English : YFM284C495CA)
(êÛÒÒÍËÈ : YFM284C496CA)
(: YFM284C497CA)
(Arabic : YFM284C498CA)
Q'ty: 1 set
Installation Instructions
(YFM284C503CA)
Q'ty: 1
Installation kit
(ZZBISC1101U-J)
Lock Cancel Plate
(FX0214C385ZA)
Q'ty: 2
Mounting Bolt
(YEJV014C002N)
Q'ty: 1
Rubber Bushing
(YFS014C095ZA)
Q'ty: 1
Mounting Collar
(FX0214C384ZA)
Q'ty: 1
Trim Plate
CQ-C1333W: (YFC054C081YA)
CQ-C1303W: (YFC054C079YA)
Q'ty: 1
Power Connector
(YGAJ021009)
Q'ty: 1
Remote Control Unit
(includes a battery)
(EUR7641010)
Q'ty: 1
CQ-C1333W
Notes:
¡ The number in parentheses underneath each accessory part name is the part number for maintenance and service.
¡ Accessories and their part numbers are subject to modification without prior notice due to improvements.
¡ Mounting Collar and Trim Plate are mounted on the main unit at shipment.
General
Power supply :DC 12 V (11 – 16 V), test voltage
14.4 V, negative ground
Current consumption :Less than 2.2 A (CD mode; 0.5 W x
4 channels)
Maximum power output :50 W x 4 channels (at 1 kHz), vol-
ume control maximum
Power output :
18 W x 4 channels (1 kHz, 1 %, 4 Ω)
Tone adjustment range :Bass: ±12 dB at 100 Hz, Treble: ±12
dB at 10 kHz
Speaker impedance :4 – 8 Ω
Pre-amp output voltage :2.5 V (CD mode, 1 kHz, 0 dB)
Pre-amp output impedance :200 Ω
Dimensions (W x H x D) :178 x 50 x 155 mm
Weight :1.3 kg
Front AUX input
Input impedance :10 kΩ
Allowable external input :2.0 V
Connector :3.5 mm
ø stereo mini-pin
Disc Player
Sampling frequency :8 times oversampling
DA converter :1 bit DAC System
Pick-up type :Astigma 3-beam
Light source :Semiconductor laser
Wave length :790 nm
Frequency response :20 Hz – 20 kHz (±1 dB)
Signal to noise ratio :96 dB
Total harmonic distortion :0.01 % (1 kHz)
Wow and flutter :Below measurable limits
Channel separation :75 dB
FM Stereo Radio
Frequency range :87.50 MHz – 108.00 MHz
Usable sensitivity :6 dB/µV (S/N 30 dB)
Frequency response :30 Hz – 15 kHz (±3 dB)
Alternate channel selectivity :75 dB
Stereo separation :35 dB (1 kHz)
Image rejection ratio :55 dB
IF rejection ratio :100 dB
Signal to noise ratio : 62 dB
AM Radio
Frequency range :531 kHz – 1 602 kHz
Usable sensitivity :28 dB/µV (S/N 20 dB)
Notes:
¡ Specifications and design are subject to modification without
notice due to improvements.
¡ Some figures and illustrations in this manual may be different
from your product.
