Panasonic CQ-DF201U - Remove the Unit

Installation Guide (continues

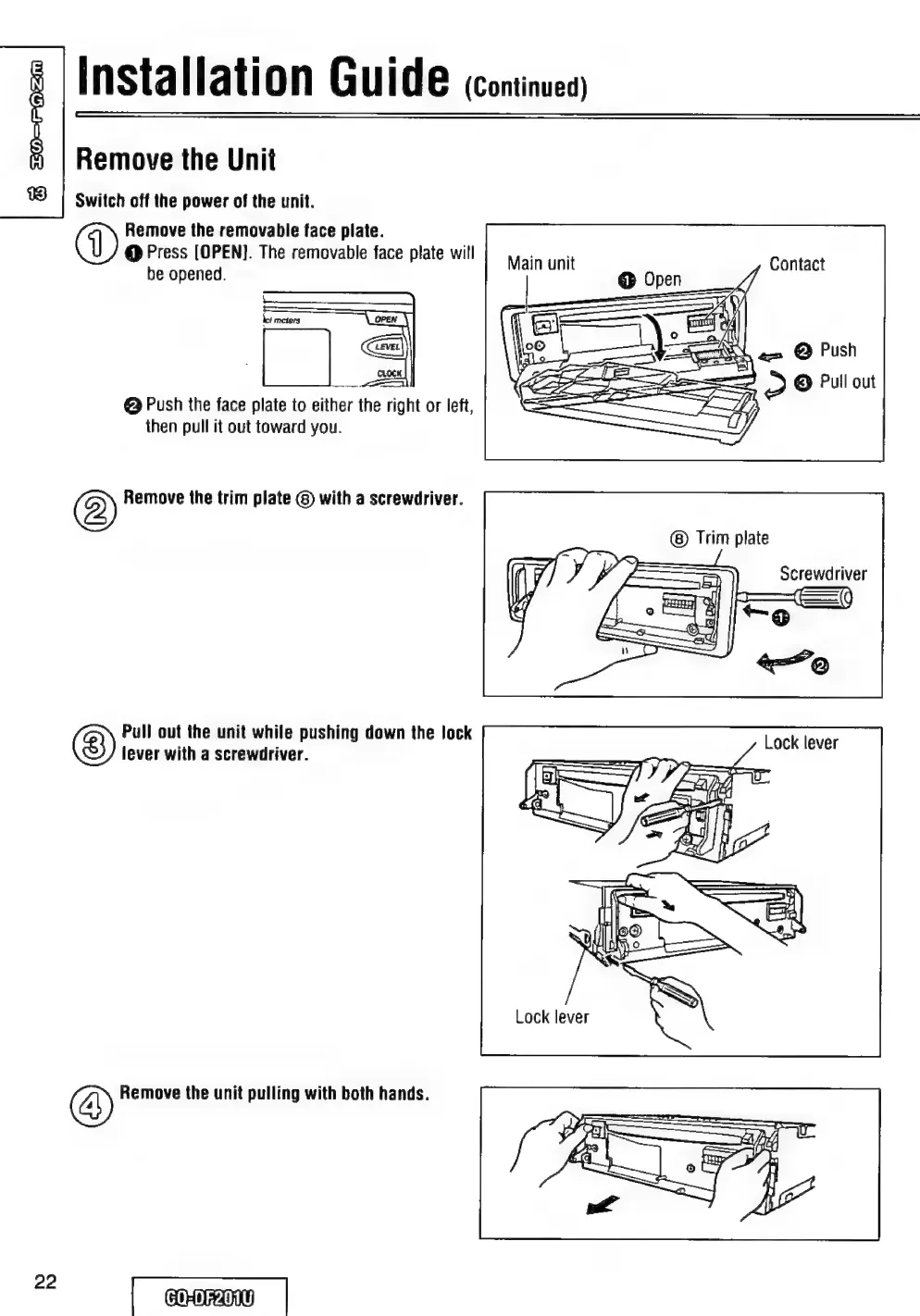

Remove the Unit
19 Switch off the power of the unit.
Remove the removable face plate.
O Press [OPEN]. The removable face plate will
be opened.
| LL send |
@ Push the face plate to either the right or left,
then pull it out toward you.
Main unit Contact
AGEN «= © Push
o
jo © Pull out
(2) Remove the trim plate @ with a screwdriver.
Trim plate
Pull out the unit while pushing down the lock
©) lever with a screwdriver.
Lock lever
Remove the unit pulling with both hands.
2 | cam |
