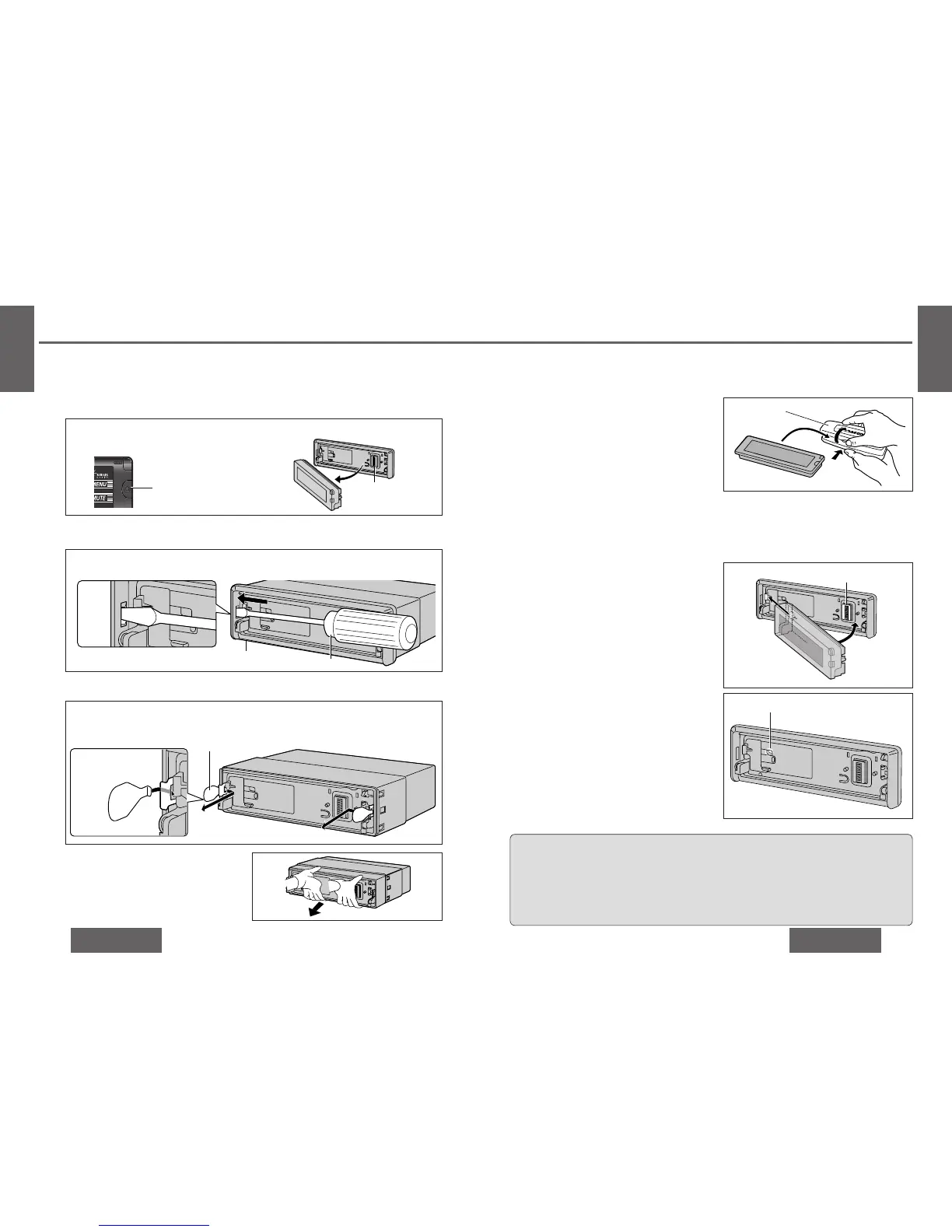

Remove the Unit
Switch off the power of the unit.
7 Trim plate
Remove the trim plate 7 with a screwdriver.
≥ First remove one side, then the other.
Remove the unit with a lock cancel plate ;.
Remove the unit pulling with both hands.
1
2
3
4
Contact
Security Indicator
The security indicator blinks when the removable
face plate is removed from the unit.
The function is activated when the security function
is on. (page 54)
Panel Removal Alarm
This alarm sounds to warn you not to forget to re-
move the panel before leaving your car.
The function is activated when the security function is
on. (page 54)
Install Removable Face Plate
1 Slide the left side of the removable face plate in
place.
2 Press the right end of removable face plate until
“click” is heard.
Caution:
≥ This face plate is not waterproof. Do not expose
it to water or excessive moisture.
≥ Do not remove the face plate while driving your
car.
≥ Do not place the face plate on the dashboard or
nearby areas where the temperature rises to
high level.
≥ Do not touch the contacts on the face plate or
on the main unit, since this may result in poor
electrical contacts.
≥ If dirt or other foreign substances get on the
contacts, wipe them off with a clean and dry cloth.
≥ To avoid damaging the front panel, do not push
it down or place objects on it while it is open.
This unit is equipped with a removable face plate.
Removing this face plate makes the radio totally in-
operable. The security indicator will blink.
Place the Removable Face
Plate into Case
1 Switch off the power of the unit.
2 Remove the removable face plate. (page 68)
3 Gently press the bottom of the case and open
the cover. Place the face plate into the case and
take it with you when you leave the car.
Removable face plate case
Security indicator
['] (Release)
1 Press ['] (release).
The removable face plate will be released.
2 Pull on the right side of the unit.
1 Fit the screwdriver into the hole of the
trim plate.
2 Pull out the unit while pushing the plates
further inside.
1 Insert the lock cancel plates ; along
the grooves on both sides of the main
unit until “click” is heard.
“Click”
Contact
Note:
≥ Be sure to keep the front panel with the remov-
able face plate case (included) when it has been
detached from the main unit.
≥ Take care not to drop the front panel when it has
been detached from the main unit. Also take care
not to bump the top surface of the touch panel
into anything. If you do so, you may break the
glass on the top surface of the touch panel.
; Lock cancel plate
Insert the tab end
in the outer
groove.
Screwdriver
2 Insert the screwdriver until “click” is heard.
