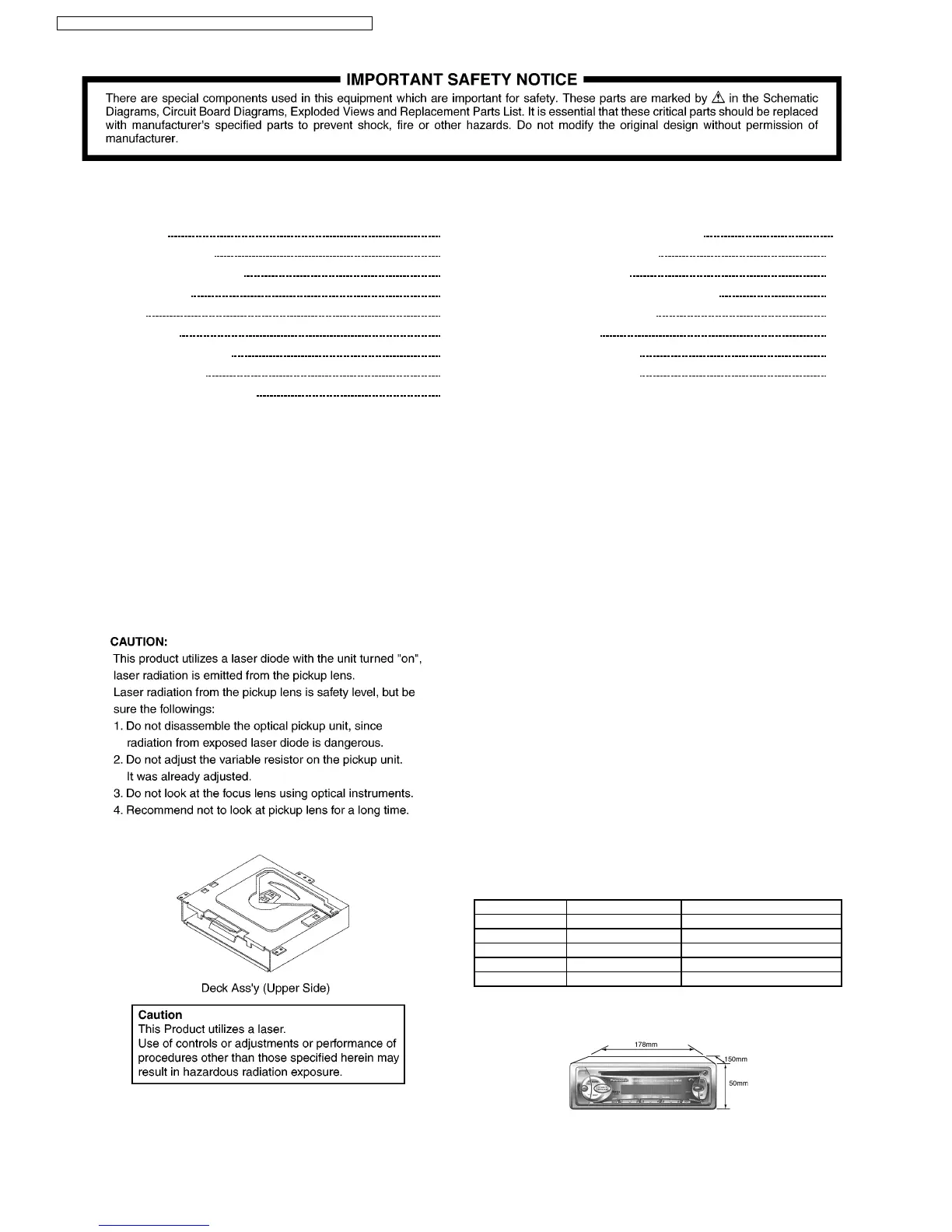

1 FEATUERS 2
2 LASER PRODUCTS
2
3 REPLACEING THE FUSE
2
4 MAINTENANCE
2
5 NOTES
2
6 DIMENSIONS
2
7 WIRING CONNECTION
3
8 BLOCK DIAGRAM
4
9 TERMINALS DESCRIPTION
5
1 FEATUERS
∙
PLL (Phase Locked Loop) synthesized tuning.
∙
18-FM, 6-AM presets with preset scan
∙
RDS (Radio Data System) reception.
∙
Digital servo for reliable CD playback.
∙
Removable face plate.
2 LASER PRODUCTS
10 PACKAGE AND IC BLOCK DIAGRAM 7
11 REPLACEMENT PARTS LIST
10
12 EXPLODED VIEW (Unit)
15
13 CD PLAYER MECHANICAL PARTS LIST
16
14 EXPLODED VIEW (CD Deck)
17
15 WIRING DIAGRAM
18
16 SCHEMATIC DIAGRAM -1
22
17 SCHEMATIC DIAGRAM -2
23
3 REPLACEING THE FUSE
Use fuses of the same specified rating (15A). Using different
substitutes or fuses with higher ratings, or connecting the
product directly without a fuse, could cause fire or damage to
the stereo unit.
4 MAINTENANCE
Your products is designed and manufactured to ensure a
minimum of maintenance. Use a dry, a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
5 NOTES
[RADIO BLOCK]
Do not align the AM/FM package block. When the package
block is necessary, it will be supplied already aligned at the
factory.
[CD DECK BLOCK]
This model has no servo alignment points because
microcomputer controls the servo circuit.
[OTHER]
This operating instruction manual applies to the five models
below. All illustrations represent model CQ-RDP162N unless
otherwise specified.
Changer Control Illumination Color
CQ-RDP162N Yes Amber
CQ-RDP112N Yes Green
CQ-RDP152N None Amber
CQ-RDP142N None Red
CQ-RDP102N None Green
6 DIMENSIONS
CONTENTS
Page Page
2
CQ-RDP162N / CQ-RDP112N / CQ-RDP152N / CQ-RDP142N / CQ-RDP102N
To Next Page
