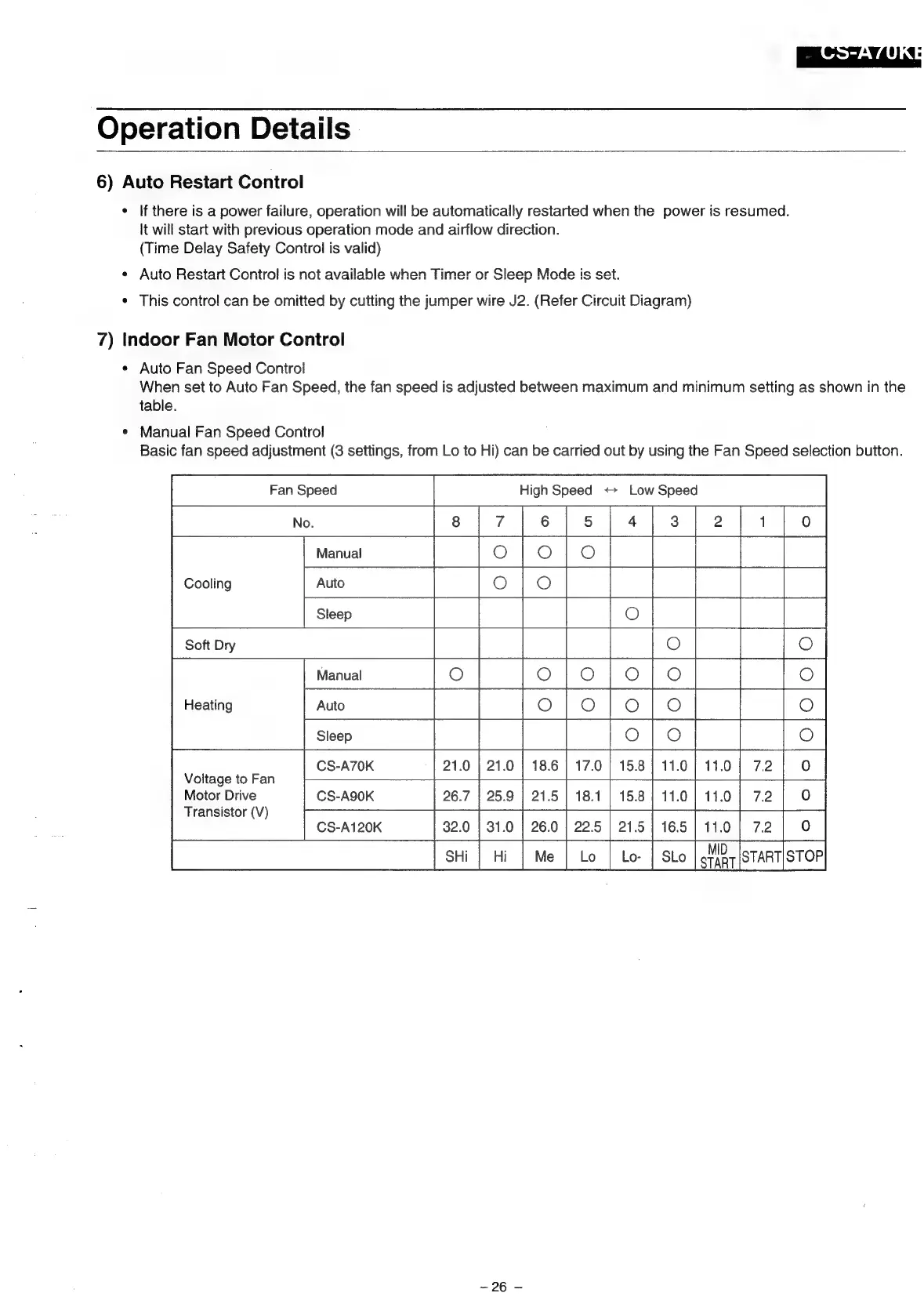

Operation Details
6) Auto Restart Control
* lf there is a power failure, operation will be automatically restarted when the power is resumed.
it will start with previous operation mode and airflow direction.
(Time Delay Safety Control is valid)
¢ Auto Restart Control is not available when Timer or Sleep Mode is set.
¢ This control can be omitted by cutting the jumper wire J2. (Refer Circuit Diagram)
7) Indoor Fan Motor Control
e Auto Fan Speed Control
When set to Auto Fan Speed, the fan speed is adjusted between maximum and minimum setting as shown in the
table.
¢ Manual Fan Speed Control
Basic fan speed adjustment (3 settings, from Lo to Hi) can be carried out by using the Fan Speed selection button.
Fan Speed High Speed <> Low Speed
a4
Manual
CS-A70K
Voltage to Fan
Motor Drive CS-A90K
Transistor (V)
CS-A120K
—~26 -
