CS-A70KE
Servicing Information

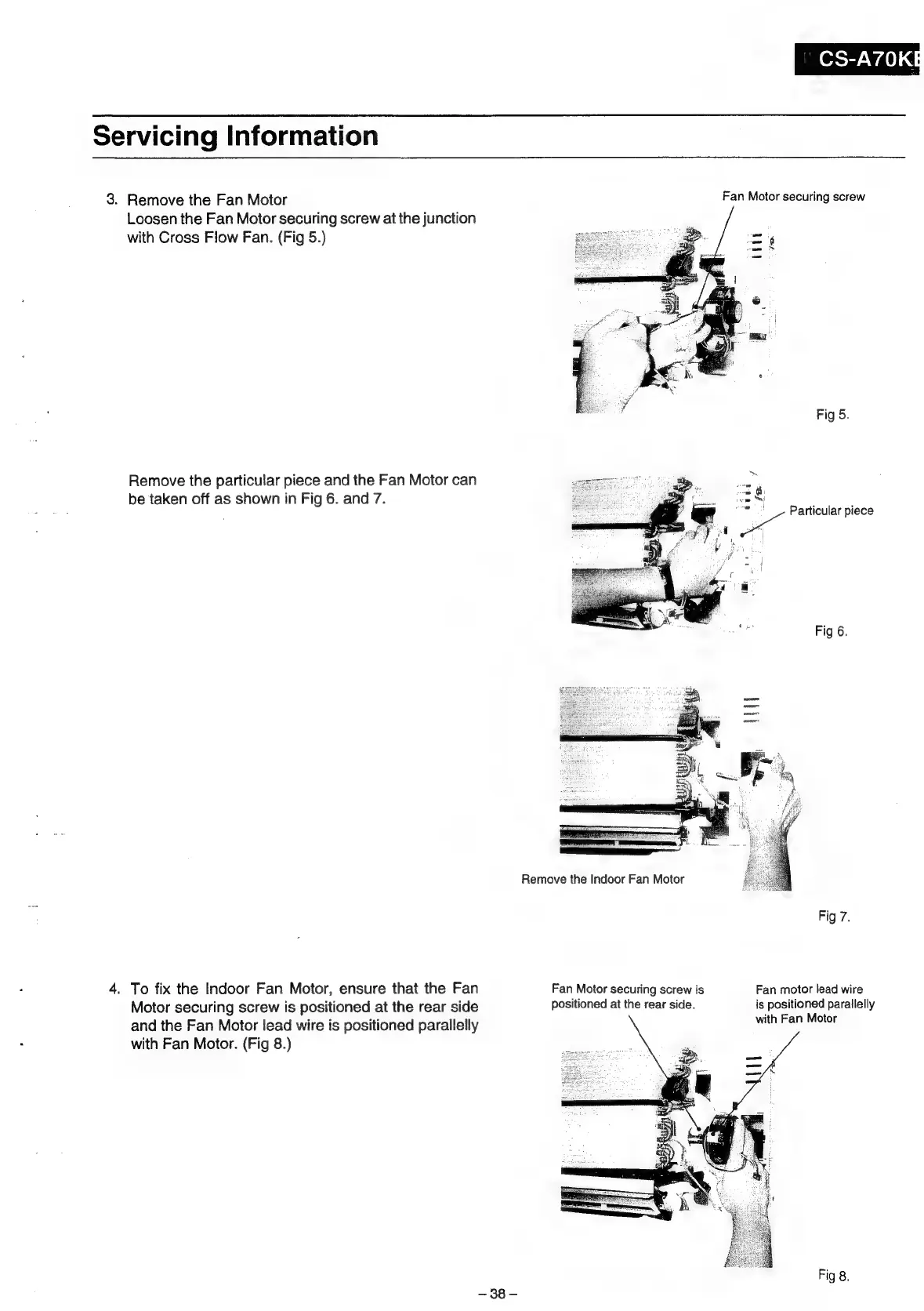

3. Remove the Fan Motor Fan Motor securing screw
Loosen the Fan Motor securing screw at the junction
with Cross Fiow Fan. (Fig 5.)
Fig 5.
Remove the particular piece and the Fan Motor can
be taken off as shown in Fig 6. and 7.
Particular piece
Fig 6.
Remove the Indoor Fan Motor
Fig 7.
4. To fix the Indoor Fan Motor, ensure that the Fan Fan Motor securing screw is Fan motor lead wire
Motor securing screw is positioned at the rear side positioned at the rear side. is positioned parallelly
and the Fan Motor lead wire is positioned parallelly Mili ani ciss
with Fan Motor. (Fig 8.)
Fig 8.
