CS-A70KE
Servicing Information

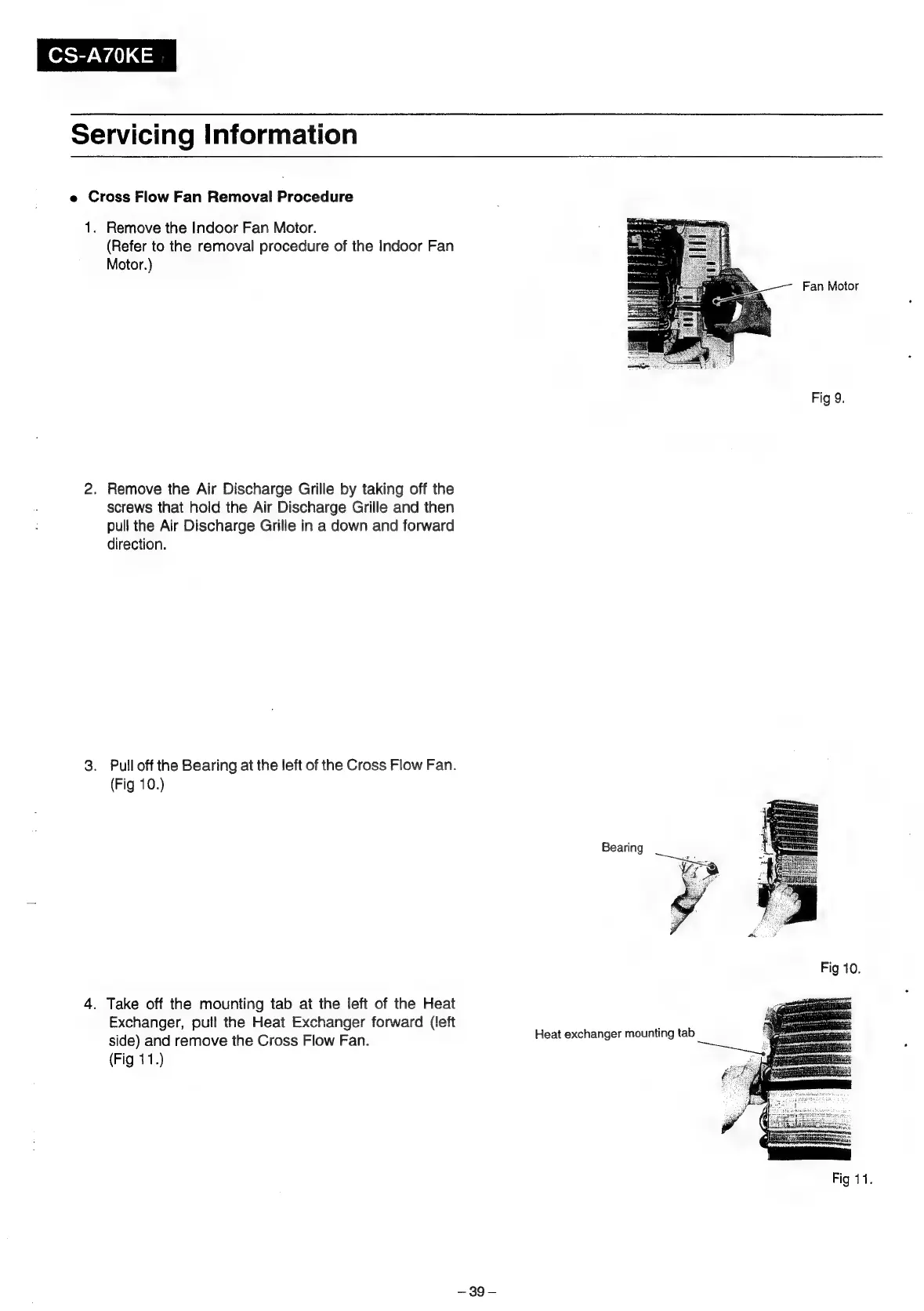

e Cross Flow Fan Removal Procedure
1. Remove the Indoor Fan Motor.
(Refer to the removal procedure of the Indoor Fan
Motor.)
Fan Motor
Fig 9.
2. Remove the Air Discharge Grille by taking off the
screws that hold the Air Discharge Grille and then
pull the Air Discharge Grille in a down and forward
direction.
3. Pull off the Bearing at the left of the Cross Flow Fan.
(Fig 10.)
Bearing
Fig 10.
4. Take off the mounting tab at the left of the Heat
Exchanger, pull the Heat Exchanger forward (left peak
side) and remove the Cross Flow Fan. aa ea ak
(Fig 11.)
—39-—
