Panasonic CS-A90KE User Manual

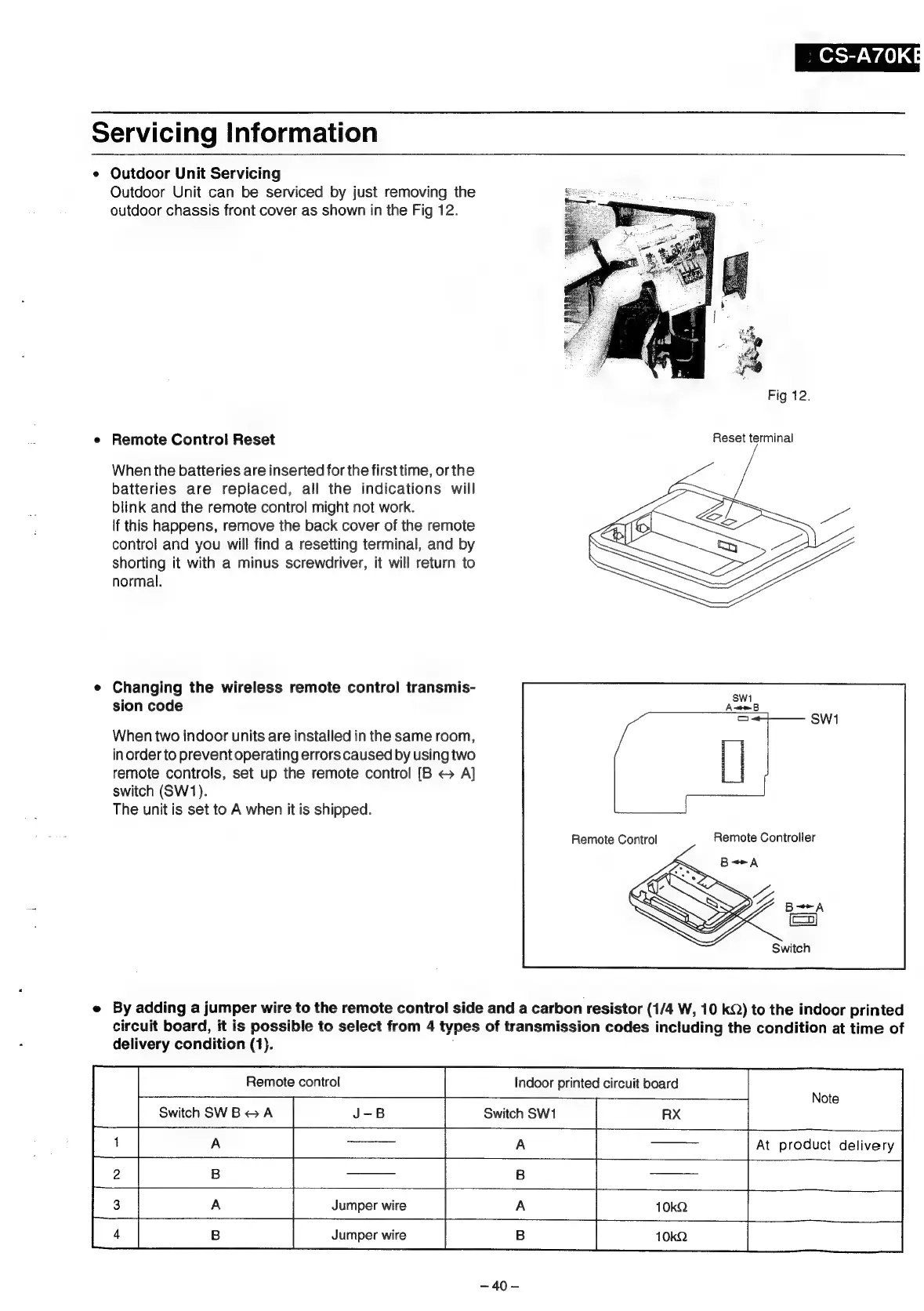

Servicing Information
¢ Outdoor Unit Servicing
Outdoor Unit can be serviced by just removing the
outdoor chassis front cover as shown in the Fig 12.
Fig 12.
e Remote Control Reset Reset terminal
When the batteries are inserted for the first time, orthe
batteries are replaced, all the indications will
blink and the remote control might not work.
if this happens, remove the back cover of the remote
control and you will find a resetting terminal, and by
shorting it with a minus screwdriver, it will return to
normal.
e Changing the wireless remote control transmis-
sion code po
=o Swi
When two indoor units are installed in the same room,
in order to prevent operating errors caused by using two
remote controls, set up the remote control [B — A]
switch (SW1).
The unit is set to A when it is shipped.
Remote Control Remote Controller
e
By
adding
a
jumper
wire
to
the
remote
control
side
and
a
carbon
resistor
(1/4
W,
10
kQ)
to
the
indoor
printed
circuit
board,
it
is
possible
to
select
from
4
types
of
transmission
codes
including
the
condition
at
time
of
delivery
condition (1).
Jumper wire
Jumper wire
Indoor printed circuit board
Switch SW1
1
At product delivery
w
Oi}; > |] o
-~40-
