106

18.2 Operation Characteristics

18.2.1 CS-A9PKD CU-A9PKD

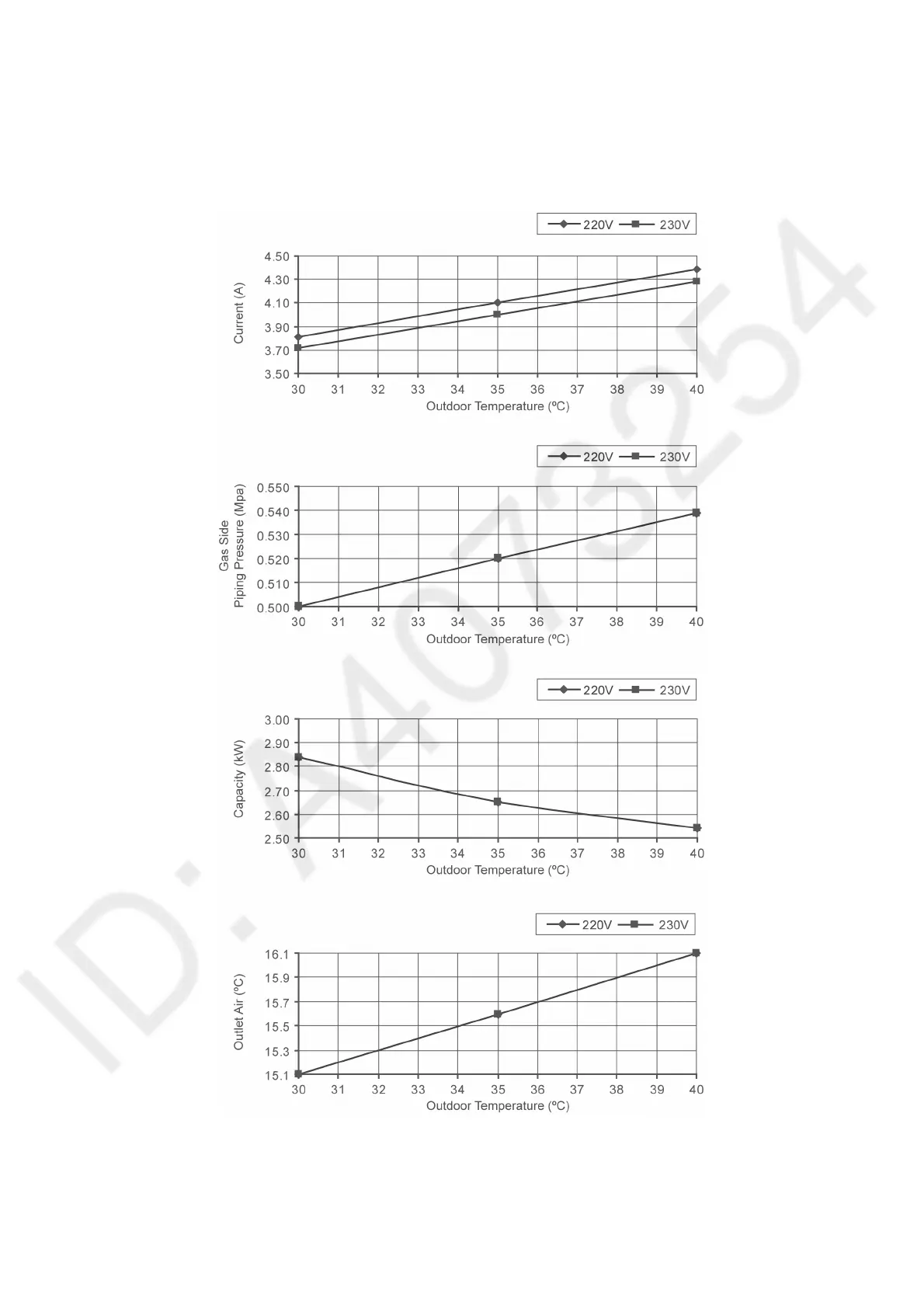

• Cooling Characteristic

o Room temperature: 27°C (DBT), 19°C (WBT)

o Operation condition: High fan speed

o Piping length: 7.5m
