Panasonic CS-A9PKD Service Manual

25

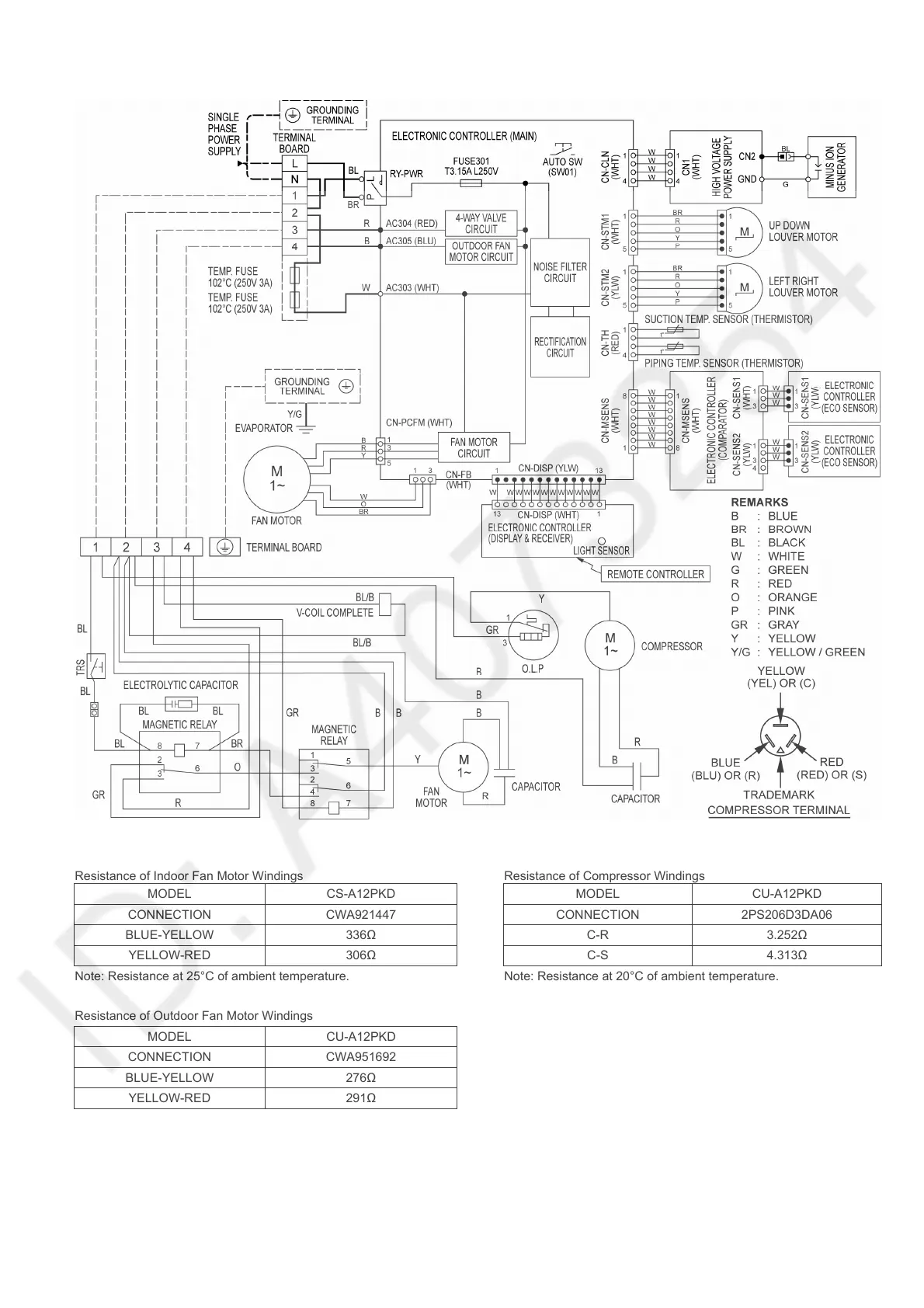

8.2 CS-A12PKD CU-A12PKD
Resistance of Indoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CS-A12PKD MODEL CU-A12PKD
CONNECTION CWA921447 CONNECTION 2PS206D3DA06
BLUE-YELLOW 336Ω C-R 3.252Ω
YELLOW-RED 306Ω C-S 4.313Ω
Note: Resistance at 25°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A12PKD
CONNECTION CWA951692
BLUE-YELLOW 276Ω
YELLOW-RED 291Ω
Note: Resistance at 20°C of ambient temperature.
