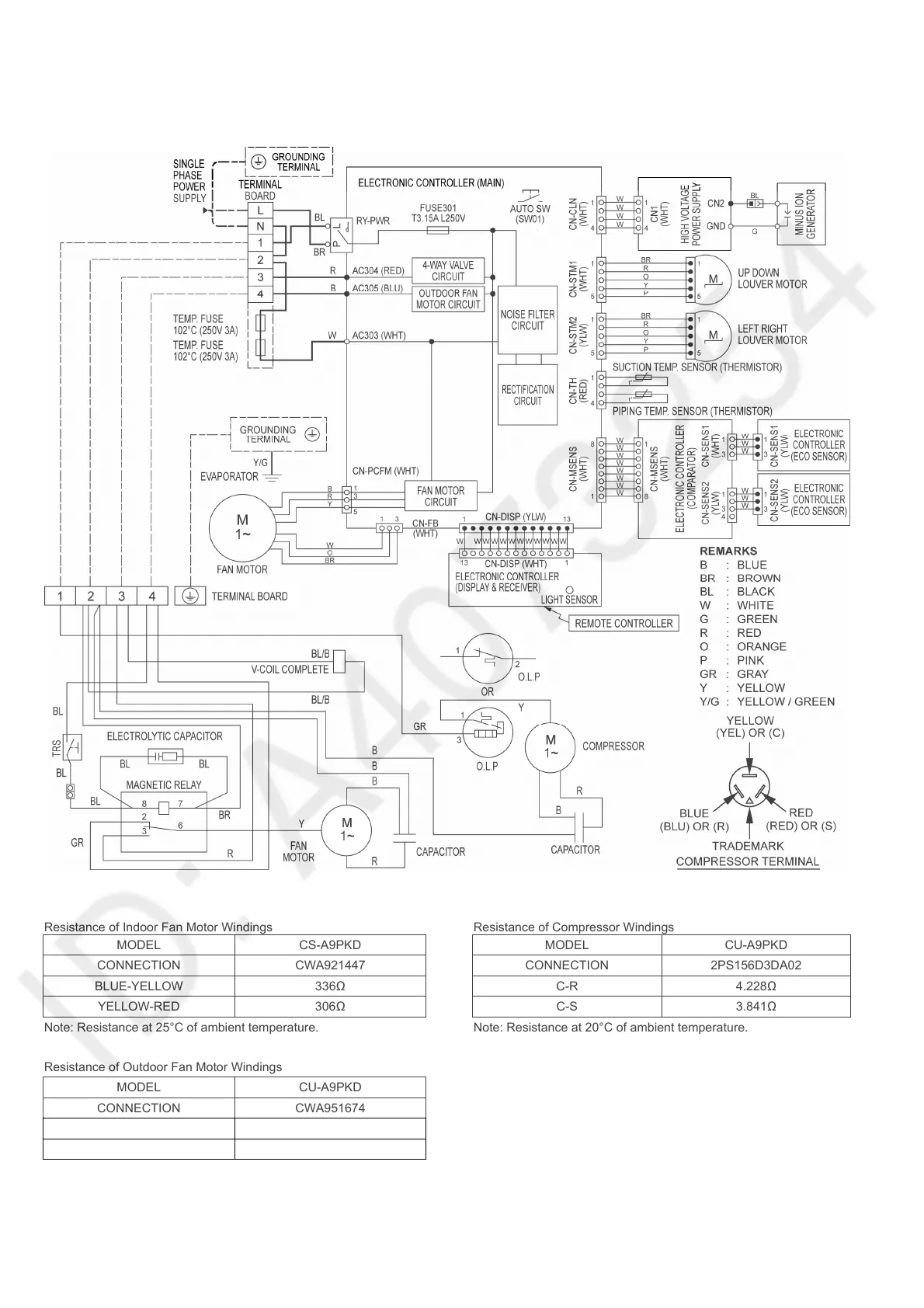

8. Wiring Connection Diagram
8.1 CS-A9PKD CU-A9PKD
Resistance of Indoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CS-A9PKD MODEL CU-A9PKD
CONNECTION CWA921447 CONNECTION 2PS156D3DA02
BLUE-YELLOW 336Ω C-R 4.228Ω
YELLOW-RED 306Ω C-S 3.841Ω
Note: Resistance at 25°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A9PKD
CONNECTION CWA951674
BLUE-YELLOW 396Ω
YELLOW-RED 295Ω
Note: Resistance at 20°C of ambient temperature.
