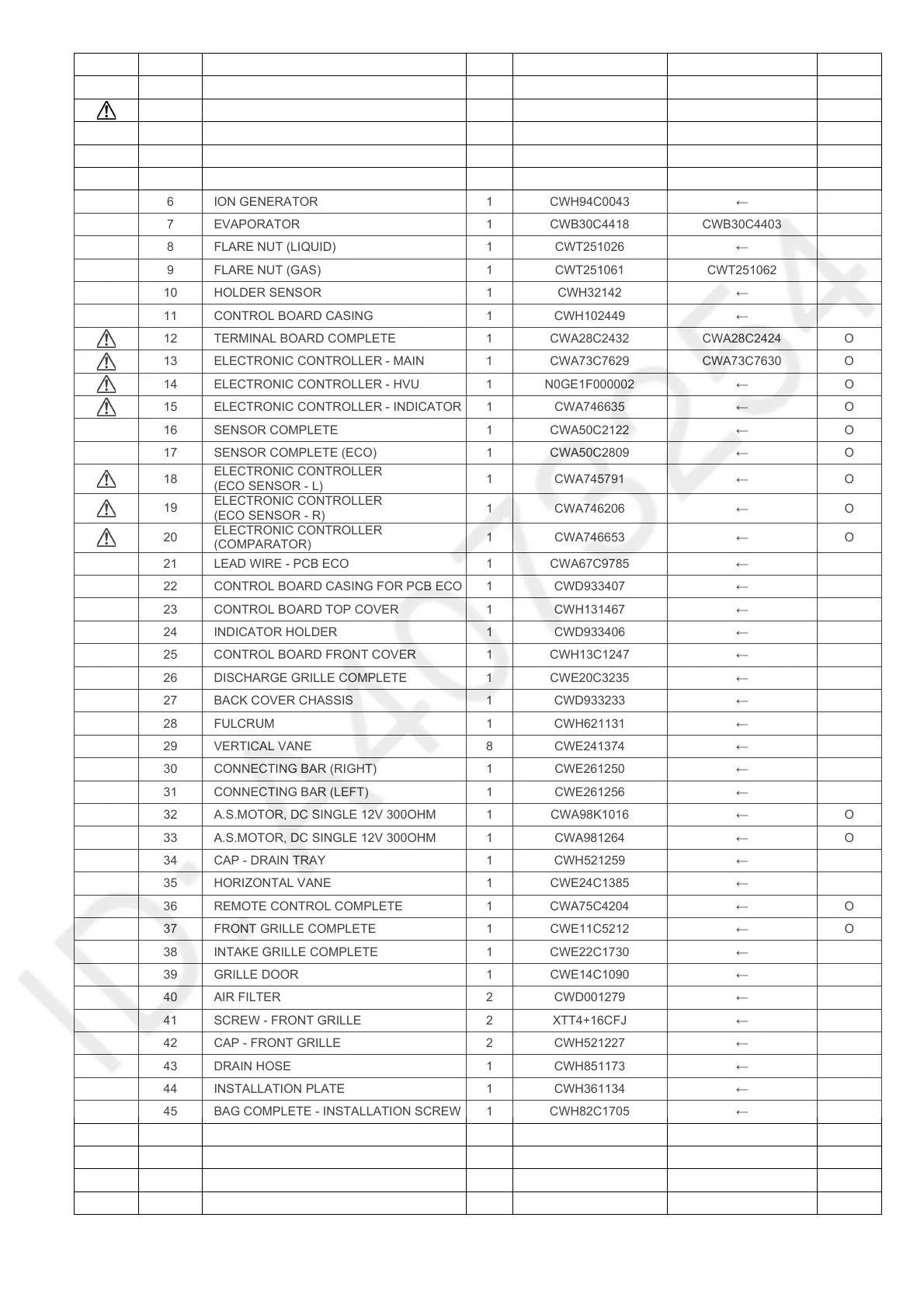

SAFETY REF. NO. PART NAME & DESCRIPTION QTY. CS-A9PKD CS-A12PKD REMARK
1 CHASSIS COMPLETE 1 CWD50C1653 ←
2 FAN MOTOR 1 CWA921447 ← O
3 CROSS FLOW FAN COMPLETE 1 CWH02C1149 ←
4 BEARING ASS’Y 1 CWH64K007 ←
5 SCREW - CROSS FLOW FAN 1 CWH551146 ←
6 ION GENERATOR 1 CWH94C0043 ←
7 EVAPORATOR 1 CWB30C4418 CWB30C4403
8 FLARE NUT (LIQUID) 1 CWT251026 ←
9 FLARE NUT (GAS) 1 CWT251061 CWT251062
10 HOLDER SENSOR 1 CWH32142 ←
11 CONTROL BOARD CASING 1 CWH102449 ←
12 TERMINAL BOARD COMPLETE 1 CWA28C2432 CWA28C2424 O
13 ELECTRONIC CONTROLLER - MAIN 1 CWA73C7629 CWA73C7630 O
14 ELECTRONIC CONTROLLER - HVU 1 N0GE1F000002 ← O
15 ELECTRONIC CONTROLLER - INDICATOR 1 CWA746635 ← O
16 SENSOR COMPLETE 1 CWA50C2122 ← O
17 SENSOR COMPLETE (ECO) 1 CWA50C2809 ← O
18
ELECTRONIC CONTROLLER
(ECO SENSOR - L)
1 CWA745791 ← O
19
ELECTRONIC CONTROLLER
(ECO SENSOR - R)
1 CWA746206 ← O
20
ELECTRONIC CONTROLLER
(COMPARATOR)
1 CWA746653 ← O
21 LEAD WIRE - PCB ECO 1 CWA67C9785 ←
22 CONTROL BOARD CASING FOR PCB ECO 1 CWD933407 ←
23 CONTROL BOARD TOP COVER 1 CWH131467 ←
24 INDICATOR HOLDER 1 CWD933406 ←
25 CONTROL BOARD FRONT COVER 1 CWH13C1247 ←
26 DISCHARGE GRILLE COMPLETE 1 CWE20C3235 ←
27 BACK COVER CHASSIS 1 CWD933233 ←
28 FULCRUM 1 CWH621131 ←
29 VERTICAL VANE 8 CWE241374 ←
30 CONNECTING BAR (RIGHT) 1 CWE261250 ←
31 CONNECTING BAR (LEFT) 1 CWE261256 ←
32 A.S.MOTOR, DC SINGLE 12V 300OHM 1 CWA98K1016 ← O
33 A.S.MOTOR, DC SINGLE 12V 300OHM 1 CWA981264 ← O
34 CAP - DRAIN TRAY 1 CWH521259 ←
35 HORIZONTAL VANE 1 CWE24C1385 ←
36 REMOTE CONTROL COMPLETE 1 CWA75C4204 ← O
37 FRONT GRILLE COMPLETE 1 CWE11C5212 ← O
38 INTAKE GRILLE COMPLETE 1 CWE22C1730 ←
39 GRILLE DOOR 1 CWE14C1090 ←
40 AIR FILTER 2 CWD001279 ←
41 SCREW - FRONT GRILLE 2 XTT4+16CFJ ←
42 CAP - FRONT GRILLE 2 CWH521227 ←
43 DRAIN HOSE 1 CWH851173 ←
44 INSTALLATION PLATE 1 CWH361134 ←
45 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C1705 ←
46 OPERATING INSTRUCTION 1 CWF568955 ←
47 INSTALLATION INSTRUCTION 1 CWF615793 ←
48 INSTALLATION INSTRUCTION 1 CWF615795 ←
49 INSTALLATION INSTRUCTION 1 CWF615794 ←
