Panasonic CS-A9PKD Service Manual

134

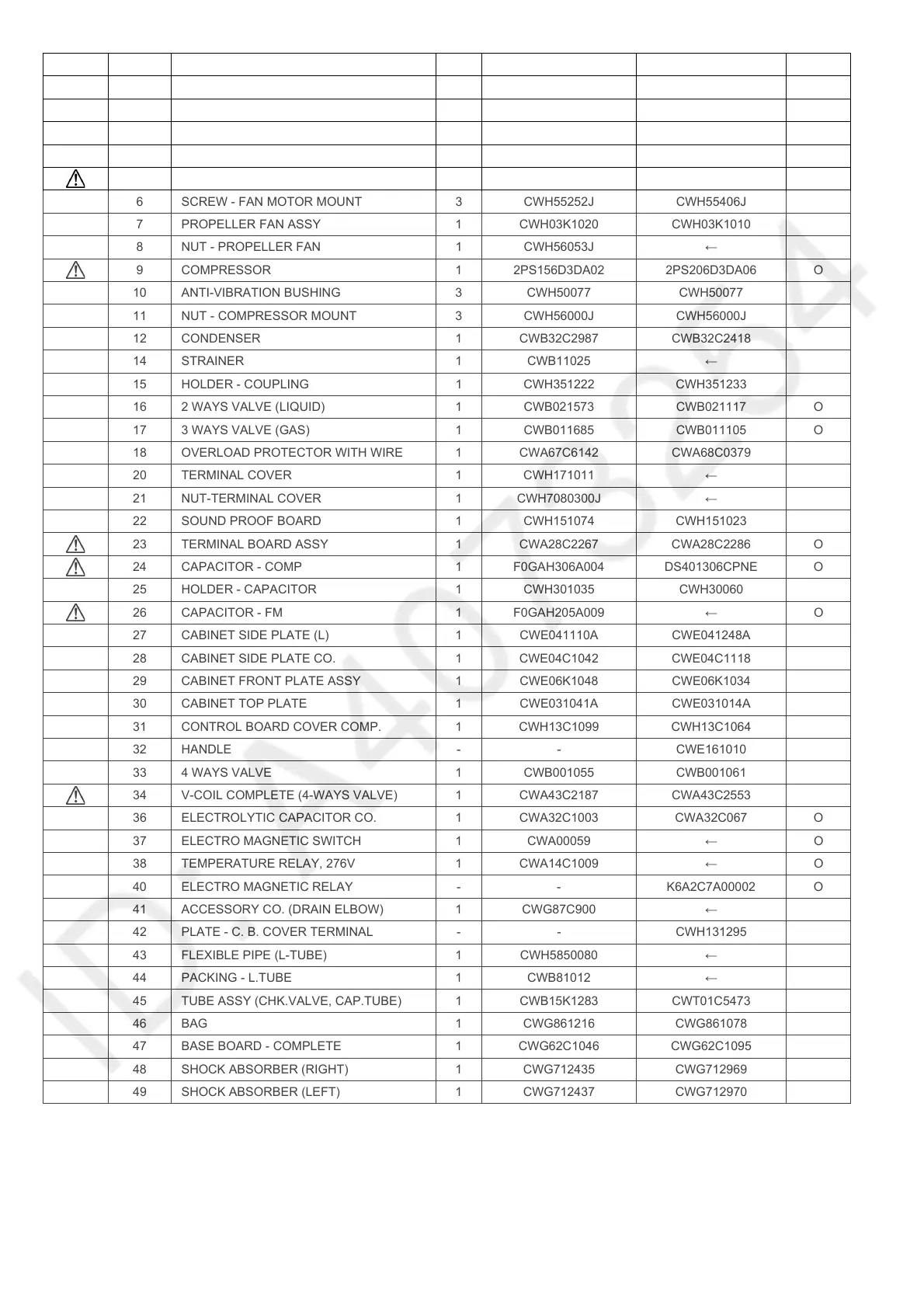

SAFETY REF. NO. PART NAME & DESCRIPTION QTY. CU-A9PKD CU-A12PKD REMARK
1 CHASSIS ASSY 1 CWD50K2112 CWD52K1308
2 SOUND PROOF MATERIAL 1 CWG302255 CWG302110
3 FAN MOTOR BRACKET 1 CWD541075 CWD541157
4 SCREW - FAN MOTOR BRACKET 2 CWH551217 ←
5 FAN MOTOR 1 CWA951674 CWA951692 O
6 SCREW - FAN MOTOR MOUNT 3 CWH55252J CWH55406J
7 PROPELLER FAN ASSY 1 CWH03K1020 CWH03K1010
8 NUT - PROPELLER FAN 1 CWH56053J ←
9 COMPRESSOR 1 2PS156D3DA02 2PS206D3DA06 O
10 ANTI-VIBRATION BUSHING 3 CWH50077 CWH50077
11 NUT - COMPRESSOR MOUNT 3 CWH56000J CWH56000J
12 CONDENSER 1 CWB32C2987 CWB32C2418
14 STRAINER 1 CWB11025 ←
15 HOLDER - COUPLING 1 CWH351222 CWH351233
16 2 WAYS VALVE (LIQUID) 1 CWB021573 CWB021117 O
17 3 WAYS VALVE (GAS) 1 CWB011685 CWB011105 O
18 OVERLOAD PROTECTOR WITH WIRE 1 CWA67C6142 CWA68C0379
20 TERMINAL COVER 1 CWH171011 ←
21 NUT-TERMINAL COVER 1 CWH7080300J ←
22 SOUND PROOF BOARD 1 CWH151074 CWH151023
23 TERMINAL BOARD ASSY 1 CWA28C2267 CWA28C2286 O
24 CAPACITOR - COMP 1 F0GAH306A004 DS401306CPNE O
25 HOLDER - CAPACITOR 1 CWH301035 CWH30060
26 CAPACITOR - FM 1 F0GAH205A009 ← O
27 CABINET SIDE PLATE (L) 1 CWE041110A CWE041248A
28 CABINET SIDE PLATE CO. 1 CWE04C1042 CWE04C1118
29 CABINET FRONT PLATE ASSY 1 CWE06K1048 CWE06K1034
30 CABINET TOP PLATE 1 CWE031041A CWE031014A
31 CONTROL BOARD COVER COMP. 1 CWH13C1099 CWH13C1064
32 HANDLE - - CWE161010
33 4 WAYS VALVE 1 CWB001055 CWB001061
34 V-COIL COMPLETE (4-WAYS VALVE) 1 CWA43C2187 CWA43C2553
36 ELECTROLYTIC CAPACITOR CO. 1 CWA32C1003 CWA32C067 O
37 ELECTRO MAGNETIC SWITCH 1 CWA00059 ← O
38 TEMPERATURE RELAY, 276V 1 CWA14C1009 ← O
40 ELECTRO MAGNETIC RELAY - - K6A2C7A00002 O
41 ACCESSORY CO. (DRAIN ELBOW) 1 CWG87C900 ←
42 PLATE - C. B. COVER TERMINAL - - CWH131295
43 FLEXIBLE PIPE (L-TUBE) 1 CWH5850080 ←
44 PACKING - L.TUBE 1 CWB81012 ←
45 TUBE ASSY (CHK.VALVE, CAP.TUBE) 1 CWB15K1283 CWT01C5473
46 BAG 1 CWG861216 CWG861078
47 BASE BOARD - COMPLETE 1 CWG62C1046 CWG62C1095
48 SHOCK ABSORBER (RIGHT) 1 CWG712435 CWG712969
49 SHOCK ABSORBER (LEFT) 1 CWG712437 CWG712970
