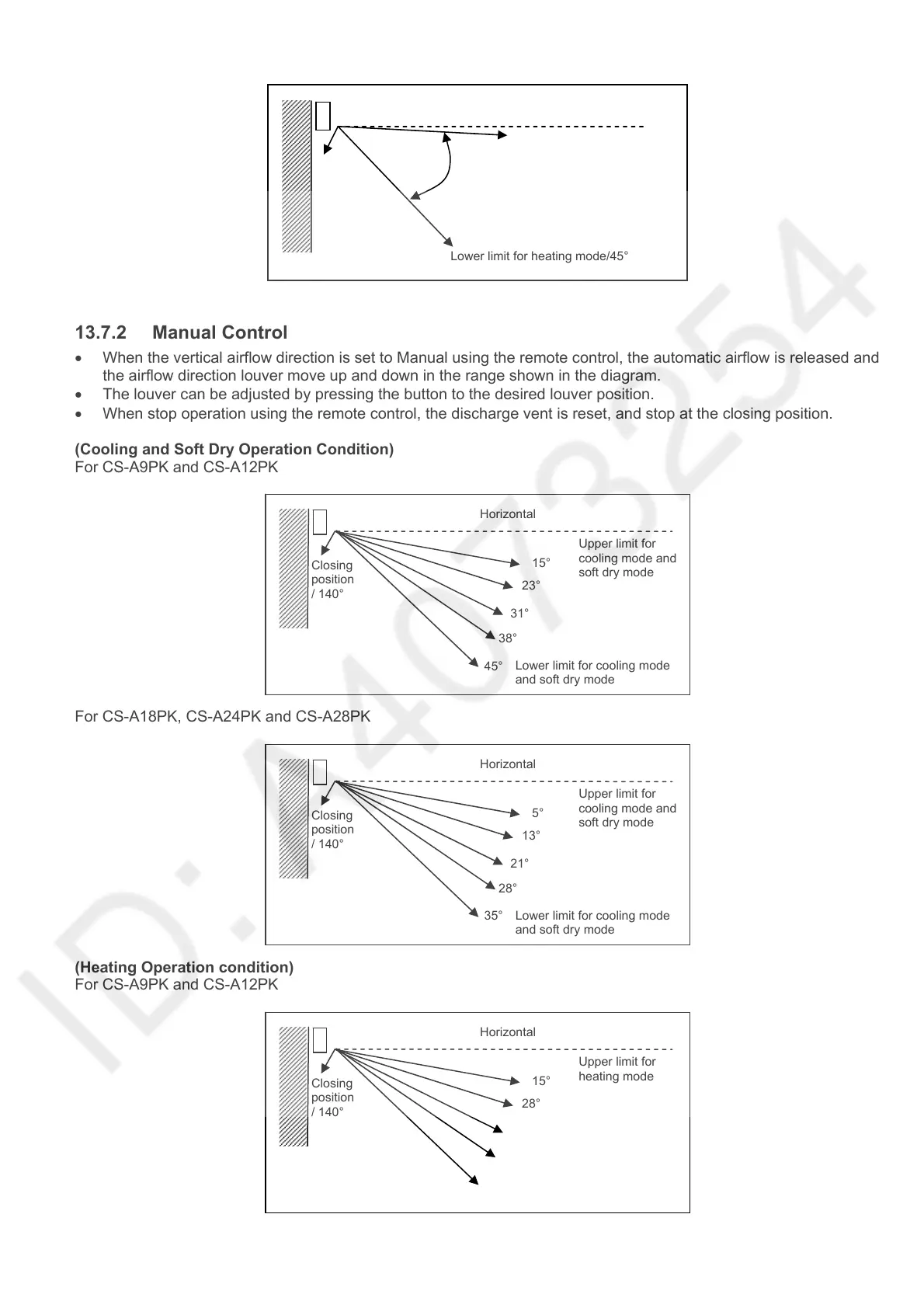

13.7.2 Manual Control
• When the vertical airflow direction is set to Manual using the remote control, the automatic airflow is released and
the airflow direction louver move up and down in the range shown in the diagram.
• The louver can be adjusted by pressing the button to the desired louver position.
• When stop operation using the remote control, the discharge vent is reset, and stop at the closing position.
(Cooling and Soft Dry Operation Condition)
For CS-A9PK and CS-A12PK
For CS-A18PK, CS-A24PK and CS-A28PK
(Heating Operation condition)
For CS-A9PK and CS-A12PK
Closing
position
/ 140°
Lower limit for cooling mode
and soft dry mode
Horizontal
15°
23°
38°
31°
45°
Upper limit for
cooling mode and
soft dry mode
40°
Closing
position
/ 140°
Lower limit for heating mode/45°
Horizontal
Upper limit/5°
Closing
position
/ 140°
Lower limit for cooling mode
and soft dry mode
Horizontal
5°
13°
28°
21°
35°
Upper limit for
cooling mode and
soft dry mode
Closing
position
/ 140°
Lower limit for heating mode
Horizontal
15°
28°
53°
41°
65°
Upper limit for
heating mode
