78
13.16.1.9 ECONAVI Demo Mode

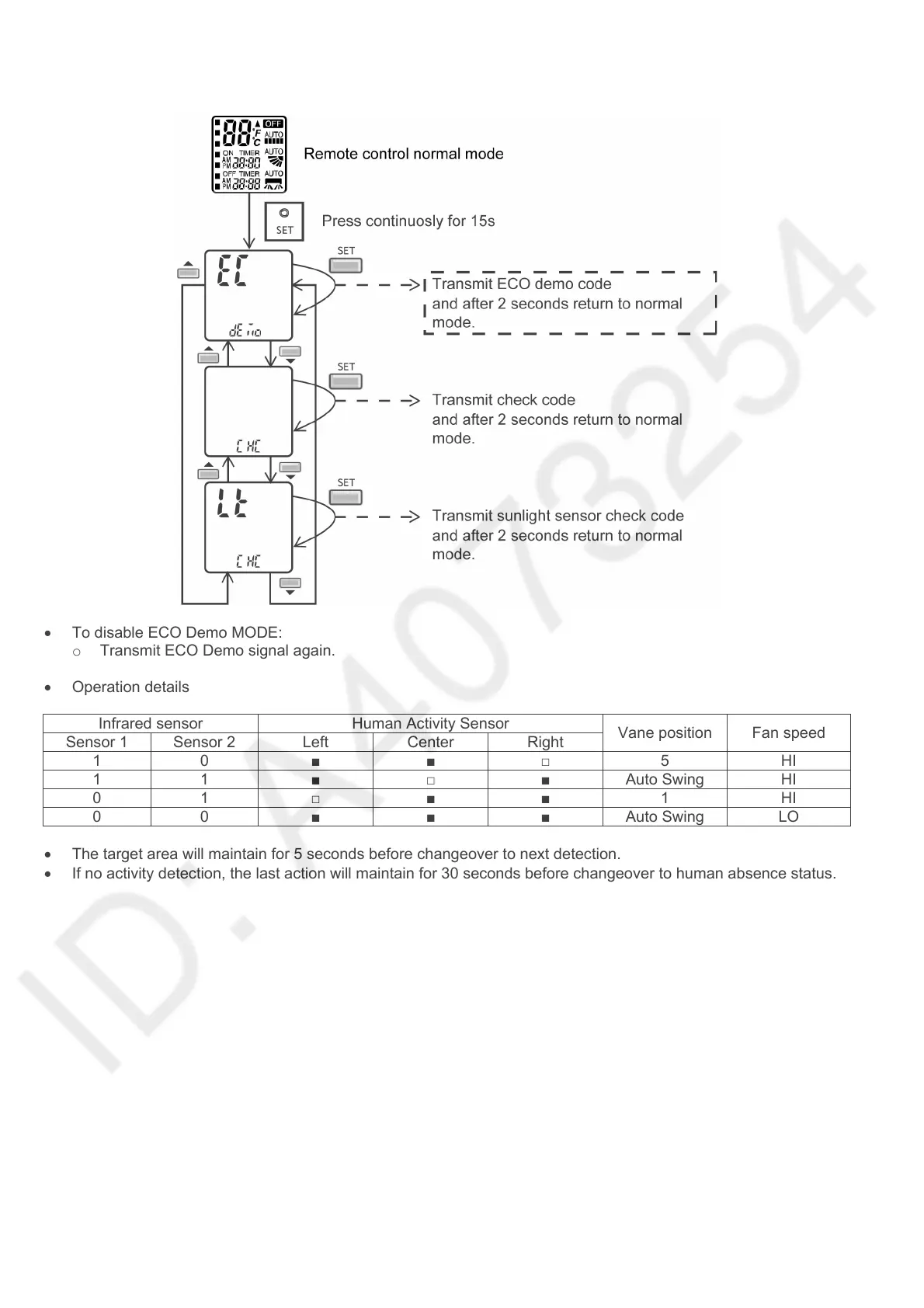

• To enable ECO DEMO mode, during unit is OFF (power standby):
• To disable ECO Demo MODE:
o Transmit ECO Demo signal again.
• Operation details
Infrared sensor Human Activity Sensor
Sensor 1 Sensor 2 Left Center Right
Vane position Fan speed
1 0 ■ ■ □ 5 HI
1 1 ■ □ ■ Auto Swing HI
0 1 □ ■ ■ 1 HI
0 0 ■ ■ ■ Auto Swing LO
• The target area will maintain for 5 seconds before changeover to next detection.
• If no activity detection, the last action will maintain for 30 seconds before changeover to human absence status.
