14 Disassembly and Assembly Instructions
14.1. Indoor Electronic Controllers Removal Procedures

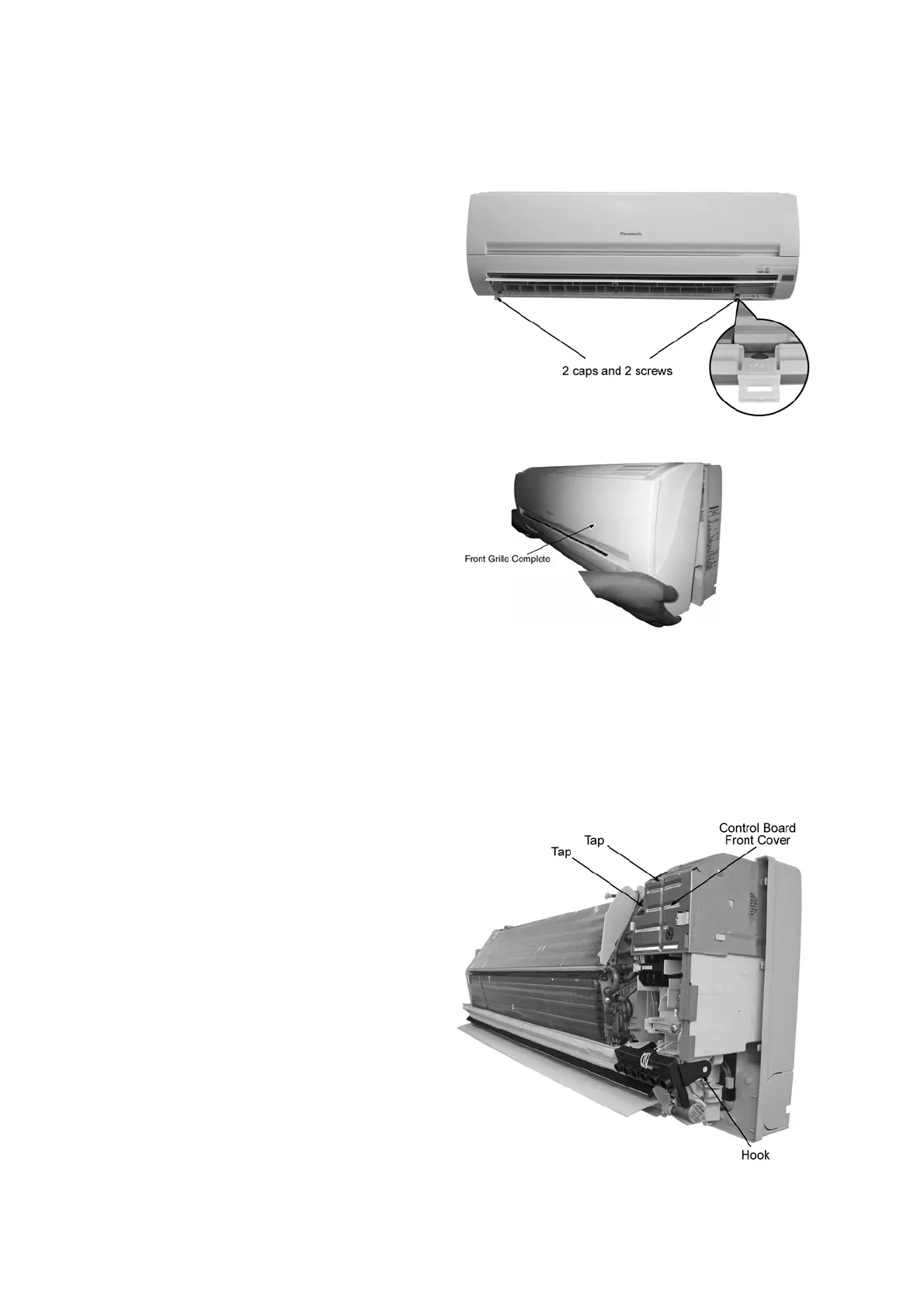

• Remove the 2 caps and 2 screws at the bottom of the Front
Grille. (Fig. 1)
Fig. 1
• Remove the Front Grille Complete. (Fig. 2)
Fig. 2
• Release the taps on the top and on the right side of Control
Board Front Cover. (Fig. 3)
• Then remove the Control Board Front Cover. (Fig. 3)
• Remove the Indicator Complete. (Fig. 3)
Fig. 3
