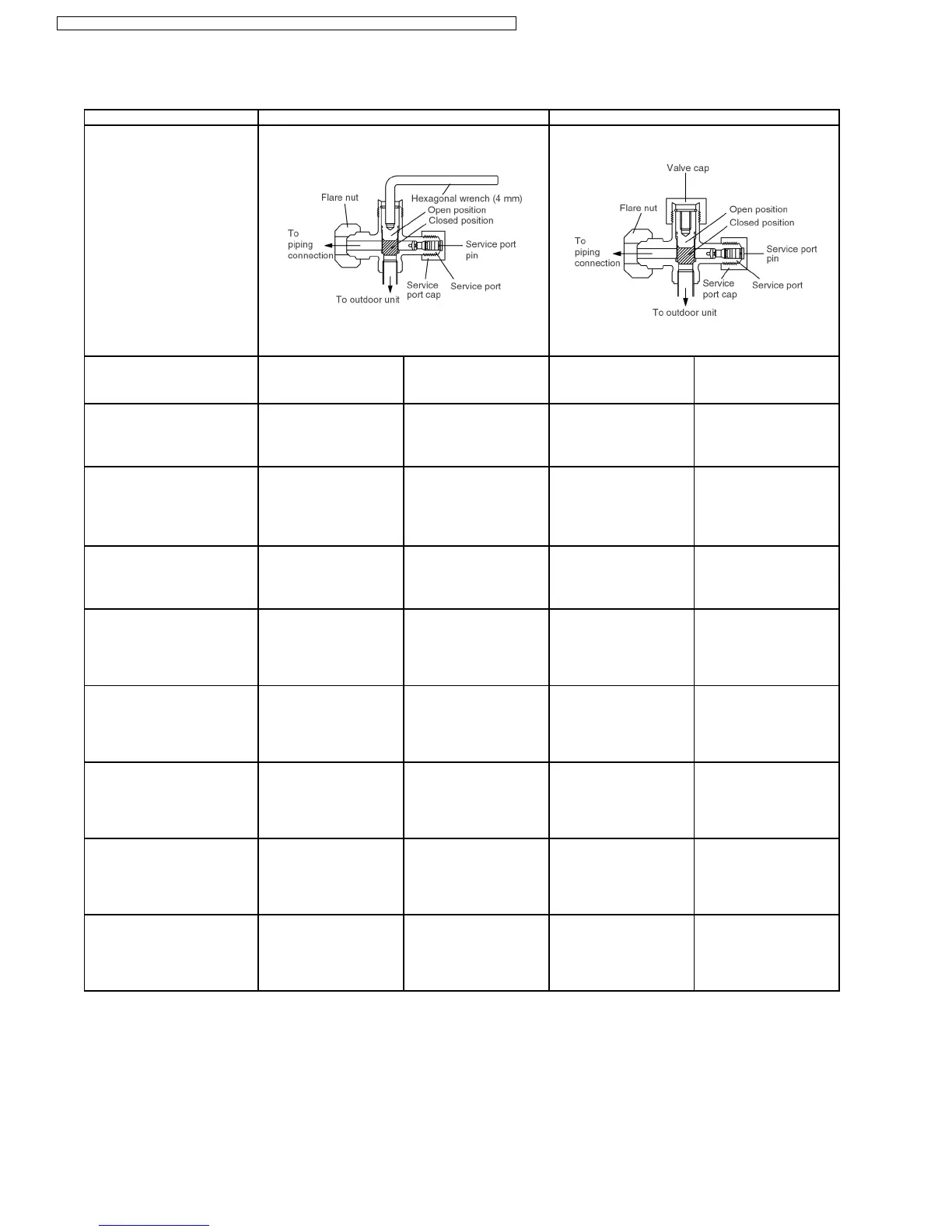

11 3-way Valve
3-way Valve (Liquid Side) 3-way Valve (Gas Side)
Works Shaft Position Service Port Shaft Position Service Port
Shipping Closed Closed Closed Close
(With valve cap) (With cap) (With valve cap) (With cap)
(Installation and Closed Open Closed Open
Re-installation) (Clockwise) (Connected manifold (Clockwise) (Push-pin)
gauge w/charging cylinder)
Operation Open Closed Open Closed
(With valve cap) (With cap) (With valve cap) (With cap)
Pumping down Closed Closed Open Open
(Transferring) (Clockwise) (With cap) (Counter-Clockwise) (Connected manifold
gauge)
Evacuation Open Open Open Open
(Servicing) (Counter-clockwise) (Connected manifold
gauge)
(Counter-clockwise) (Connected manifold
gauge)
Gas charging Open Open Open Open
(Servicing) (Counter-clockwise) (Connected manifold
gauge)
(Counter-clockwise) (Connected manifold
gauge)
Pressure check Open Closed Open Open
(Servicing) (Counter-clockwise) (With cap) (Counter-clockwise) (Connected manifold
gauge)
Gas releasing Open Open Open Open
(Servicing) (Counter-clockwise) (Connected manifold
gauge)
(Counter-clockwise) (Connected manifold
gauge)
44
CS-C18BKP CU-C18BKP5 / CS-C18BKP CU-C18BKP6 / CS-C24BKP CU-C24BKP5 / CS-C24BKP CU-C24BKP6
