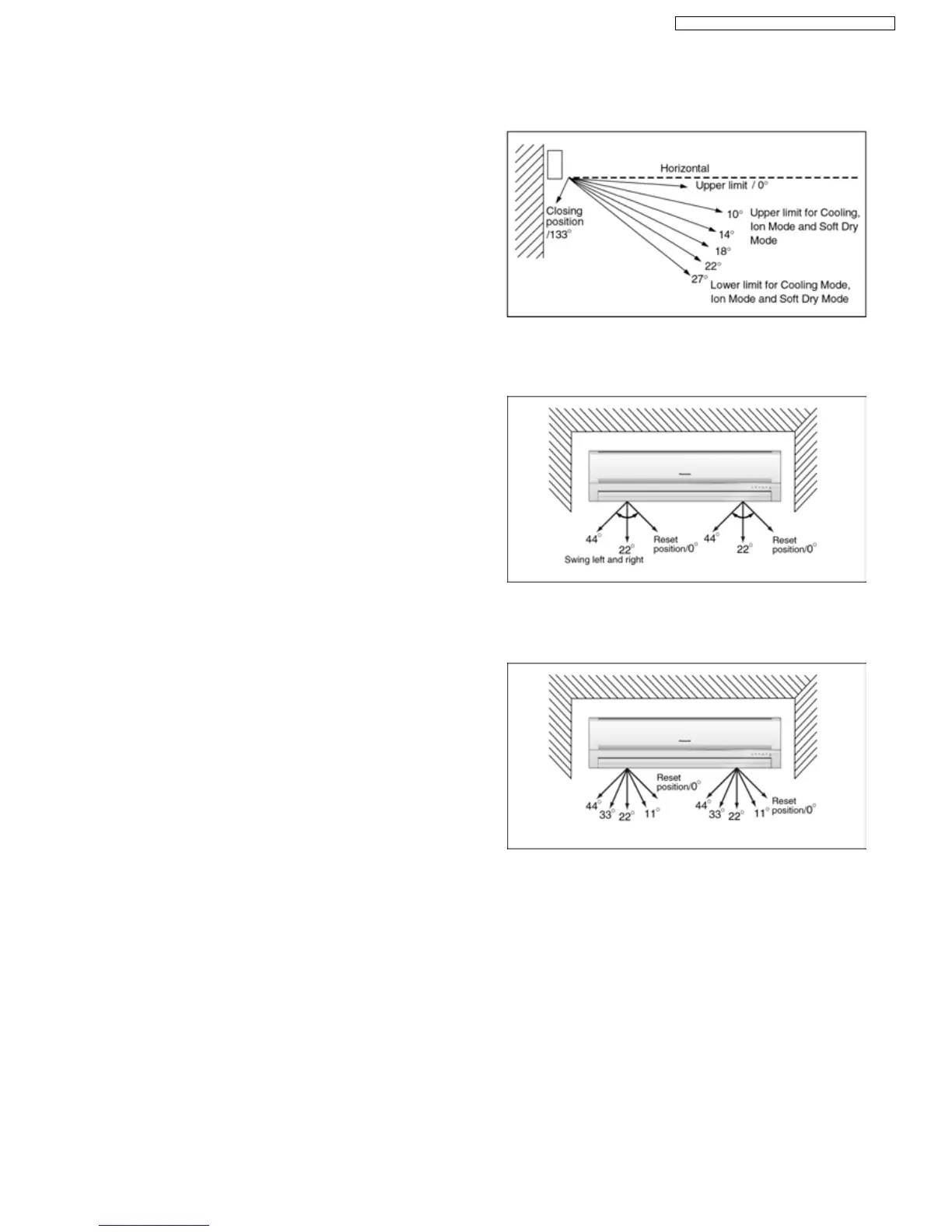

When the vertical airflow direction is set to Manual using the
remote control, the automatic airflow is released and the
airflow direction louver move up and down in the range
shown in the diagram.
The louver can be adjusted by pressing the button to the
desired louver position.
When stopped with remote control, the discharge vent is
reset, and stop at the closing position.
8.8.1. Auto Control
When the horizontal airflow direction is set to Auto using the
remote control, the vanes swings left and right as shown in
the diagram.
When stopped with remote control, the discharge vane is
reset, and stop at the reset position.
During Cooling operation or Soft Dry operation, indoor fan
motor may stop to rotate at certain periods. At that
condition, the vane will stop swinging and rest at 22° angle.
When the horizontal airflow direction is set to Manual using
the remote control, the automatic airflow is released and the
airflow direction vane move left and right in the range shown
in the diagram.
The louver can be adjusted by pressing the button to the
desired vane position.
When stopped with remote control, the vanes is reset, and
stopped at reset position.
8.7.2. Manual Control
8.8. Horizontal Airflow Direction Control
8.8.2. Manual Control
8.9. Powerful Operation
The Powerful operation is to achieve the setting temperature quickly.
When Powerful operation is set, the setting temperature will be automatically decreased 3°C internally against the present
setting temperature (Lower temperature limit: 16°C).
This operation automatically will be running under SHi Fan Speed (Cooling).
Vertical Airflow Direction:-
- In “Manual” setting, the vane will automatically shift down 10° lower than previous setting.
- In “Auto” setting, the vane will automatically swing up and down. However the lower limit will be shifted 10° downward.
25
CS-C18DKD CU-C18DKD / CS-C24DKD CU-C24DKD
