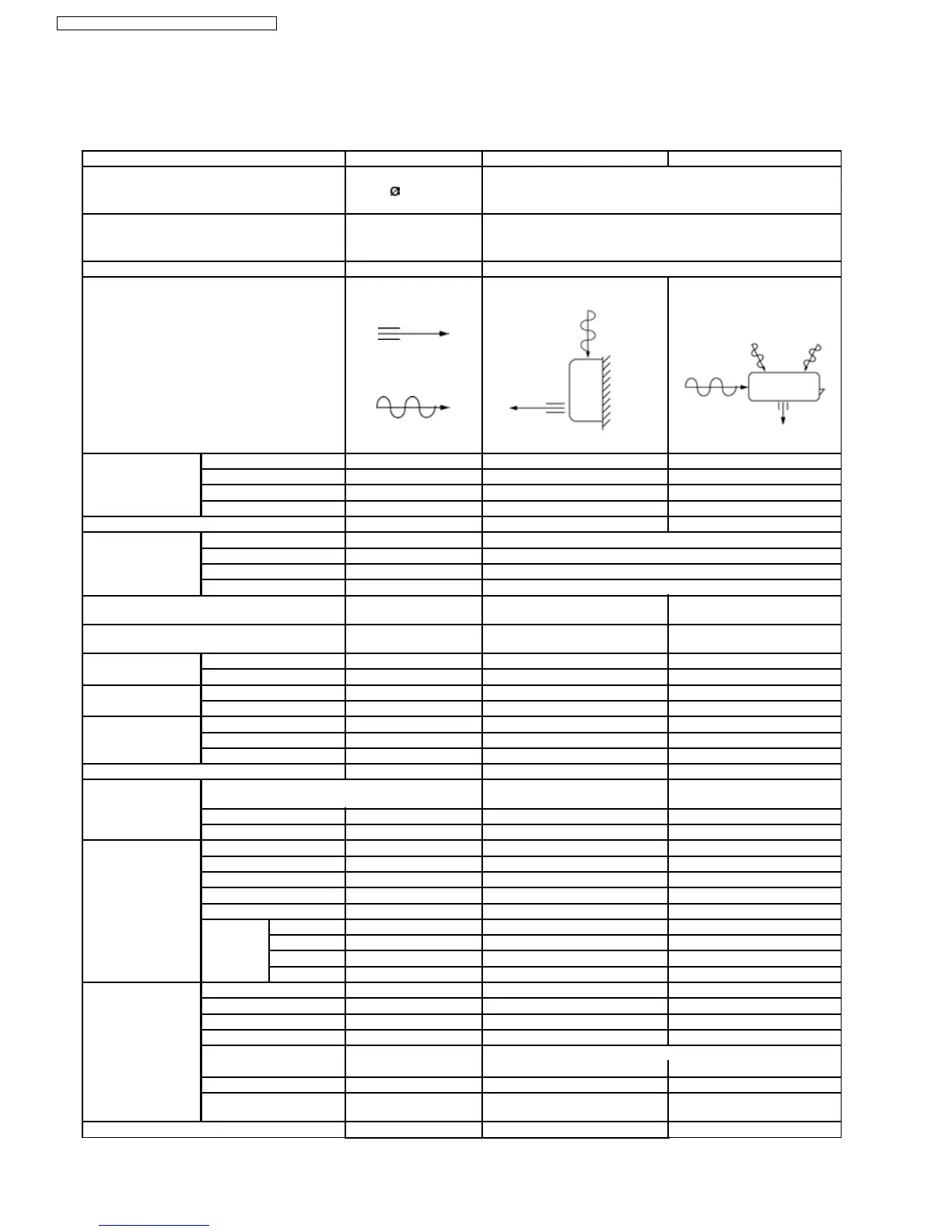

3 Product Specifications
3.1. CS-C18DKD CU-C18DKD
Unit CS-C18DKD CU-C18DKD
Power Source (Phase, Voltage, Cycle) ,V,Hz Single, 220 - 230, 50
Cooling Capacity kW (BTU/h) 5.30 (18,100) - 5.30 (18,100)
Moisture Removal l/h (Pint/h) 2.9 (6.1)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) 12.5 (440) - 12.5 (440) —
Me m
3
/min (cfm) 13.6 (480) - 13.6 (480) —
Hi m
3
/min (cfm) 14.8 (520) - 14.8 (520) 30.3 (1,070) - 30.8 (1,090)
SHi m
3
/min (cfm) 15.5 (550) - 15.5 (550) —
Noise Level dB (A) High 42 - 42, Low 37 - 37 High 53 - 54
Electrical Data Input Power kW 1.72 - 1.76
Running Current A 8.2 - 8.3
EER W/W (BTU/hW) 3.08 - 3.01 (10.52 - 10.28)
Starting Current A 36.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (1.5 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 39 - 9/32 (998) 30 - 23/32 (780)
Depth inch (mm) 9 - 1/16 (230) 11 - 3/8 (289)
Net Weight lb (kg) 24 (11.0) 90 (41.0)
Compressor Description — Rotary (1 cylinder)
rolling piston type
Motor Type — Induction (2-poles)
Rated Output kW — 1.5
Air Circulation Description Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (6-poles)
Input W 65.1 86.5
Rated Output W 30 36
Fan Speed Low rpm 1,150 - 1,150 —
Medium rpm 1,250 - 1,250 —
High rpm 1,360 - 1,360 830 - 855
SuperHigh rpm 1,420 - 1,420 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×24
FPI 21 16
Size (W × H × L) mm 810 × 315 × 25.4 723.5
744.2
× 504.0 × 25.4
Refrigerant Control Device — Capillary Tube
6
CS-C18DKD CU-C18DKD / CS-C24DKD CU-C24DKD
