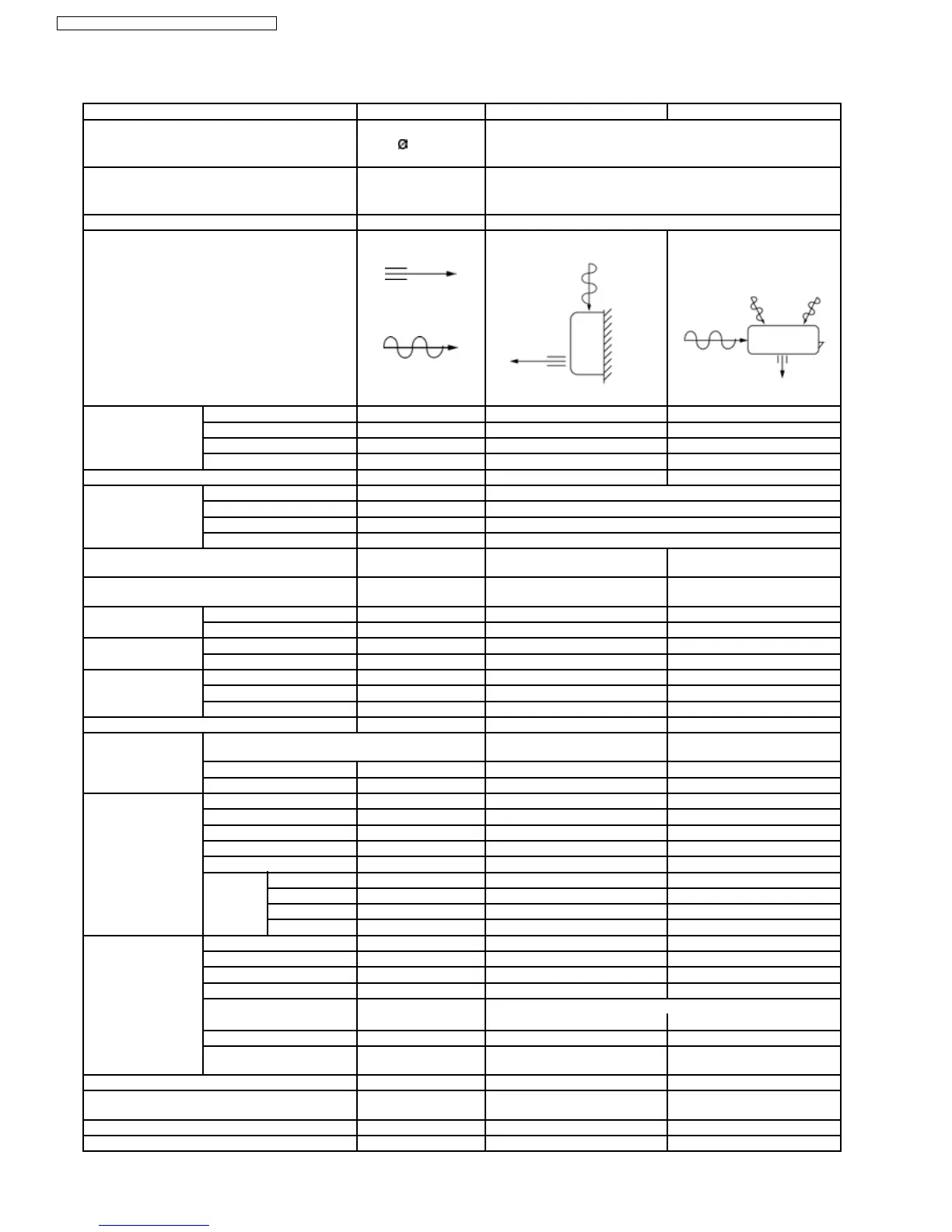

Panasonic CS-C18DKD User Manual

3.2. CS-C24DKD CU-C24DKD
Unit CS-C24DKD CU-C24DKD
Power Source (Phase, Voltage, Cycle) ,V,Hz Single, 220 - 230, 50
Cooling Capacity kW (BTU/h) 7.03 (24,000) - 7.03 (24,000)
Moisture Removal l/h (Pint/h) 4.0 (8.5)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) 13.9 (492) - 13.9 (492)
←
Me m
3
/min (cfm) 15.4 (544) - 15.4 (544) —
Hi m
3
/min (cfm) 16.9 (597) - 16.9 (597)
←
SHi m
3
/min (cfm) 17.5 (617) - 17.5 (617) —
Noise Level dB (A) High 46 - 46, Low 40 - 40 High 53 - 54
Electrical Data Input Power kW 2..35 - 2.41
Running Current A 11.5 - 11.6
EER W/W (BTU/hW) 2.99 - 2.92 (10.21 - 9.96)
Starting Current A 65.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (2.5 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)
Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)
Depth inch (mm) 9 - 1/16 (230) 13 - 19/32 (345)
Net Weight lb (kg) 24 (11.0) 128 (58.0)
Compressor Description — Rotary (1 cylinder) rolling piston
type
Motor Type — Induction (2-poles)
Rated Output kW — 2.2
Air Circulation Description Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (6-poles)
Input W 47.3 133.5
Rated Output W 30 66
Fan Speed Low rpm 1,250 - 1,250 420 - 450
Medium rpm 1,390 - 1,390 —
High rpm 1,530 - 1,530 770 - 785
SuperHigh rpm 1,590 - 1,590 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×34
FPI 21 18
Size (W × H × L) mm 810 × 315 × 25.4 850.5
870.5
× 714 × 25.4
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (cm
3
) — SUNISO 4GDID or ATMOS
M60 or ATMOS 56M
Refrigerant (R-22) g (oz) — 1,440 (50.8)
Thermostat — Mechanical Control
8
CS-C18DKD CU-C18DKD / CS-C24DKD CU-C24DKD
