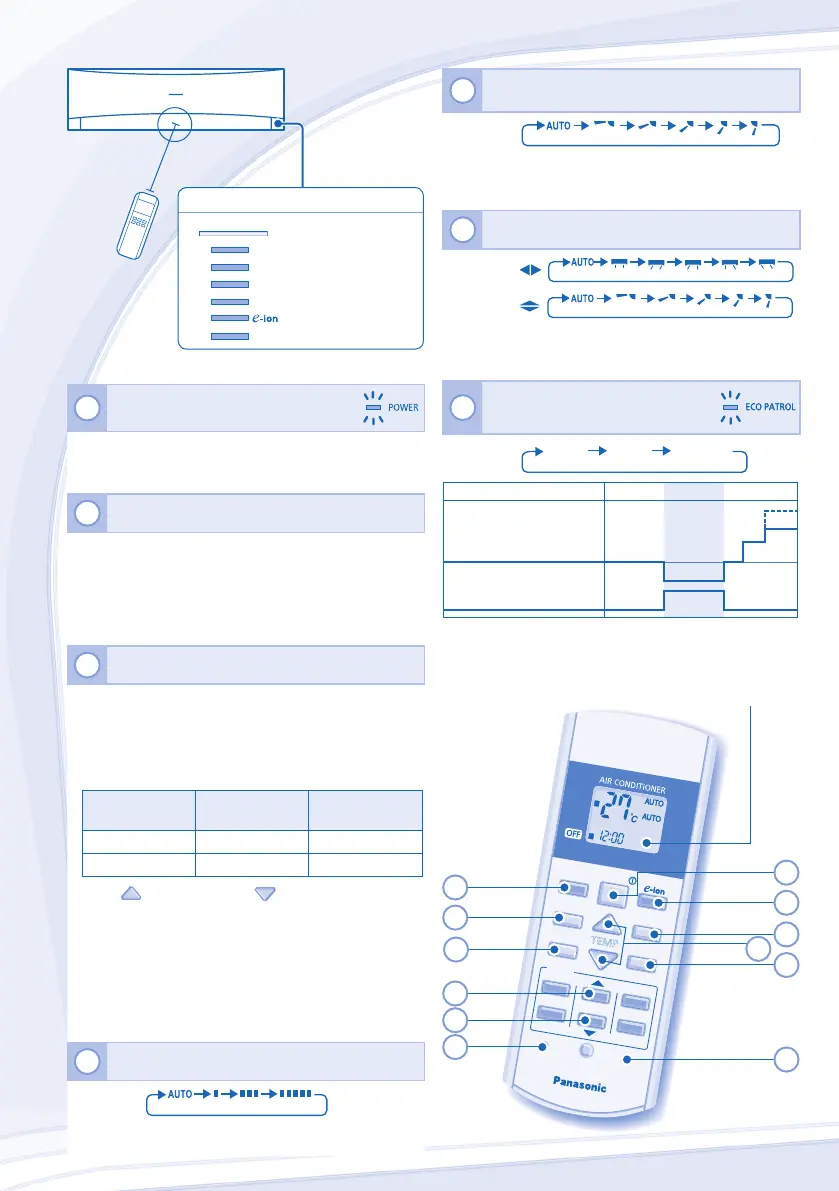

REMOTE CONTROL
(PAGE 5)
FAN SPEED
AIR SWING
ECO
PAT
ROL
PATROL/
QUIET/
POWERF
UL
MODE
TEM
P
OFF/ON
TIMER
SET
CAN
CEL
ON
OFF
1
2
3
SET
CLOCK
RESET
OFF
TIMER
ON
TIMER
AUTO
COOL
DRY
FAN
SPEED
AIR
SWING
5
TO ADJUST VERTICAL AIRFLOW DIRECTION
(5 OPTIONS)
AIR SWING
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing
up/down automatically.
6
TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)
AIR SWING
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing
left/right and up/down automatically.
7
TO MONITOR HUMAN PRESENCE
& ACTIVITY FOR ENERGY SAVING
ECO
PATROL
ECO 1 ECO 2 ECO OFF
Heat Source & Movement
Low
High
+3°C
Set Temperature
≤ Medium
Fan
Set Fan Speed
-1°C
+1 tap
None
+2°C
• — ECO 1 - To optimize comfort and energy saving.
• --- ECO 2 - To maximize energy saving.
Press the remote control’s button
1
TO TURN ON OR OFF THE UNIT
• Please be aware of the OFF indication on the remote
control display to prevent the unit from starting/stopping
improperly.
2
TO SET TEMPERATURE
• For cool and dry modes, the range of temperature for
selection is 16˚C ~ 30˚C.
• Operating the unit within the recommended temperature
could induce energy saving.
COOL mode : 26˚C ~ 28˚C.
DRY mode : 1˚C ~ 2˚C lower than room temperature.
3
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects the operation mode according to the room
temperature.
• Once auto mode is selected, the unit will operate at the
standard setting temperature.
Room
temperature
Operation mode
Standard setting
temperature
23˚C & above Cool 25˚C
Below 23˚C Dry 22˚C
• Press
for “HI” to +2˚C or for “LO” to -2˚C to the
standard setting temperature.
COOL mode - To enjoy cool air
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
4
TO SELECT FAN SPEED (3 OPTIONS)
FAN
PEED
• For AUTO, the indoor fan speed is automatically adjusted
according to the operation mode.
Maximum
distances: 8m
INDICATOR
PATROL SENSOR
(Red/Orange/Blue)
POWER
(Green)
TIMER
(Orange)
QUIET
(Orange)
POWERFUL
(Orange)
(Blue)
ECO PATROL
(Green)
C9KKV, C9KKV-6, C12KKV, C12KKV-6
C9KKV, C9KKV-6, C12KKV, C12KKV-6
7
3
11
8
4
2
5
14
1
12
13
15
Remote Control display
To Next Page
