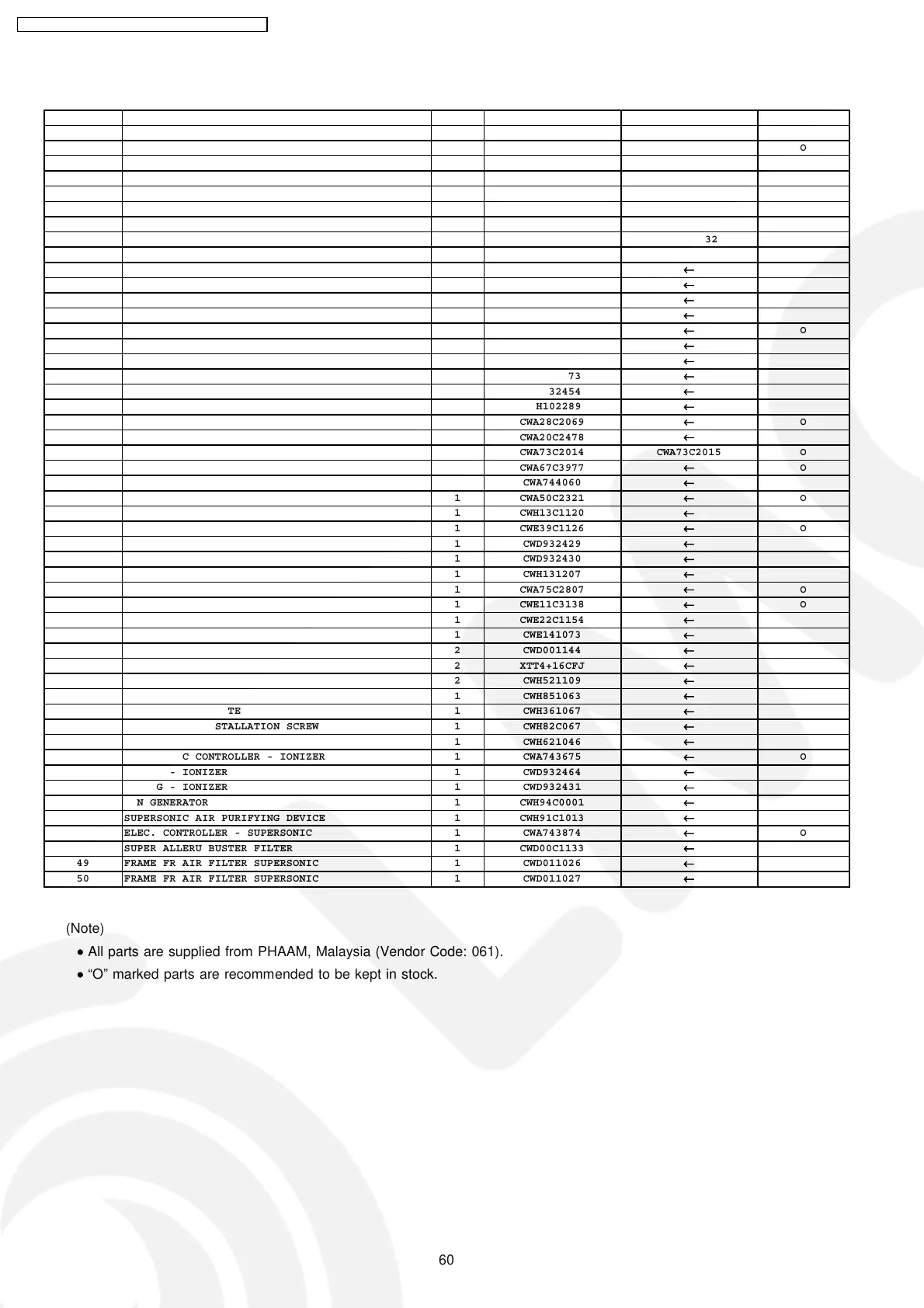

17.2. CS-E9EKEB CS-E12EKEB
REF. NO. PART NAME & DESCRIPTION QTY. CS-E9EKEB CS-E12EKEB Remarks
1 CHASSY COMPLETE 1 CWD50C1431 ←
2 FAN MOTOR, DC 30W 3PH 1 CWA981149J ← O
3 CROSS FLOW FAN COMPLETE 1 CWH02C1045 ←
4 BEARING ASSY 1 CWH64K007 ←
5 SCREW - CROSS FLOW FAN 1 CWH551146 ←
6 EVAPORATOR CO. 1 CWB30C1832 CWB30C1833
7 FLARE NUT (1/4) 1 CWT251030 ←
8 FLARE NUT (3/8) (1/2) 1 CWT251031 CWT251032
9 CLIP FOR SENSOR 1 CWH32143 ←
10 DISCHARGE GRILLE COMPLETE 1 CWE20C2343 ←
11 VERTICAL VANE 9 CWE241150 ←
12 CONNECTING BAR 1 CWE261072 ←
13 CONNECTING BAR 1 CWE261065 ←
14 A.S.MOTOR, DC SINGLE 12V 300Ω 2 CWA98260+MJ ← O
15 LEADWIRE - AIR SWING MOTOR 1 CWA67C3849 ←
16 CAP - DRAIN TRAY 1 CWH521096 ←
17 HORIZONTAL VANE 1 CWE241173 ←
18 BACK COVER CHASSIS 1 CWD932454 ←
19 CONTROL BOARD CASING 1 CWH102289 ←
20 TERMINAL BOARD COMPLETE 1 CWA28C2069 ← O
21 P.S CORD WITHOUT PLUG 1 CWA20C2478 ←
22 ELECTRONIC CONTROLLER - MAIN 1 CWA73C2014 CWA73C2015 O
23 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3977 ← O
24 ELECTRONIC CONTROLLER - POWER 1 CWA744060 ←
25 SENSOR COMPLETE 1 CWA50C2321 ← O
26 CONTROL BOARD FRONT COVER CO. 1 CWH13C1120 ←
27 INDICATOR COMPLETE 1 CWE39C1126 ← O
28 INDICATOR HOLDER 1 CWD932429 ←
29 INDICATOR HOLDER 1 CWD932430 ←
30 CONTROL BOARD TOP COVER 1 CWH131207 ←
31 REMOTE CONTROL COMPLETE 1 CWA75C2807 ← O
32 FRONT GRILLE CO. 1 CWE11C3138 ← O
33 INTAKE GRILLE COMPLETE 1 CWE22C1154 ←
34 GRILLE DOOR 1 CWE141073 ←
35 AIR FILTER 2 CWD001144 ←
36 SCREW - FRONT GRILLE 2 XTT4+16CFJ ←
37 CAP - FRONT GRILLE 2 CWH521109 ←
38 DRAIN HOSE 1 CWH851063 ←
39 INSTALLATION PLATE 1 CWH361067 ←
40 BAG COMP. - INSTALLATION SCREW 1 CWH82C067 ←
41 FULCRUM 1 CWH621046 ←
42 ELECTRONIC CONTROLLER - IONIZER 1 CWA743675 ← O
43 CASING - IONIZER 1 CWD932464 ←
44 CASING - IONIZER 1 CWD932431 ←
45 ION GENERATOR 1 CWH94C0001 ←
46 SUPERSONIC AIR PURIFYING DEVICE 1 CWH91C1013 ←
47 ELEC. CONTROLLER - SUPERSONIC 1 CWA743874 ← O
48 SUPER ALLERU BUSTER FILTER 1 CWD00C1133 ←
49 FRAME FR AIR FILTER SUPERSONIC 1 CWD011026 ←
50 FRAME FR AIR FILTER SUPERSONIC 1 CWD011027 ←
(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).
• “O” marked parts are recommended to be kept in stock.
60
CS-E9EKEB CU-E9EKEB / CS-E12EKEB CU-E12EKEB
