183

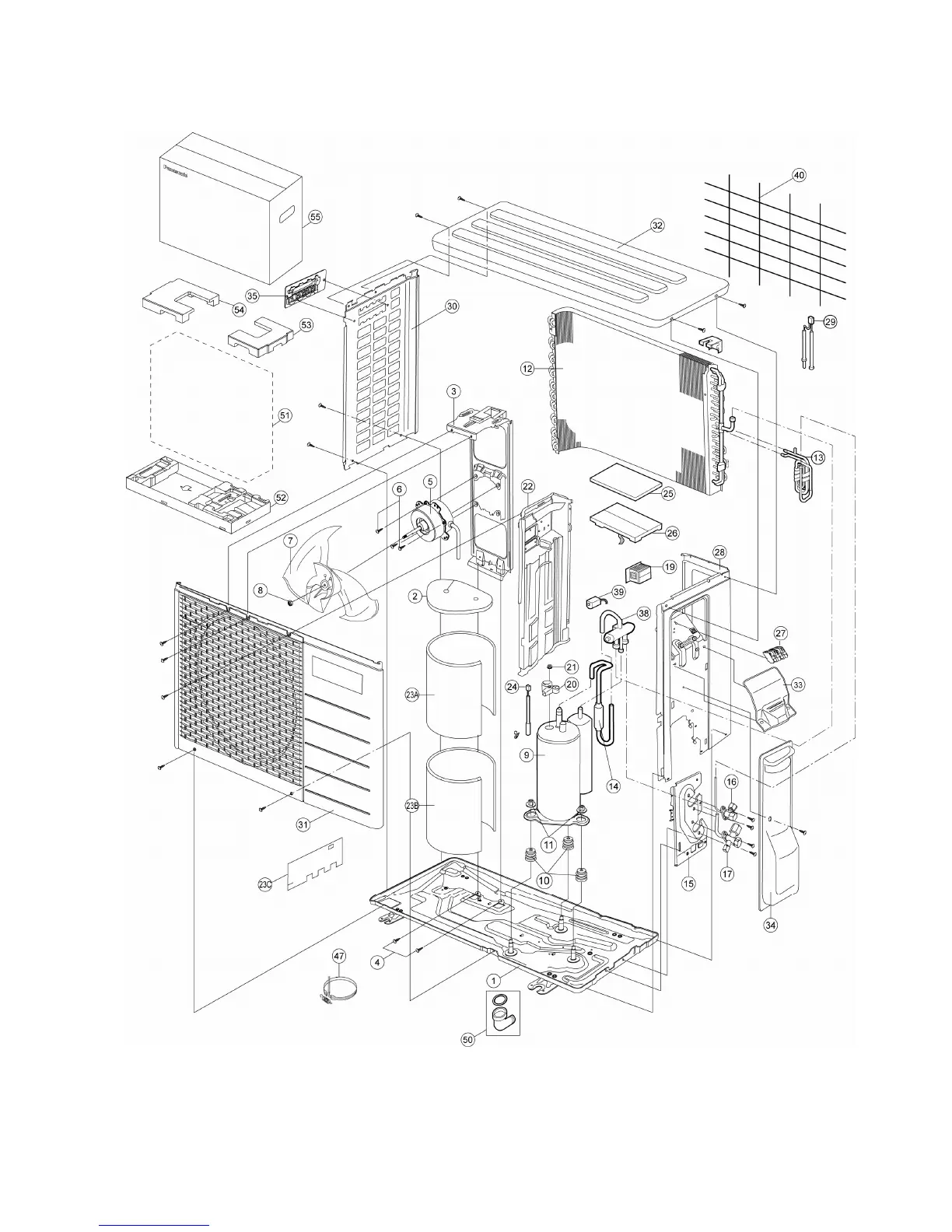

19.2 Outdoor Unit
19.2.1 CU-E7NKE CU-E9NKE CU-E7NKE-3 CU-E9NKE-3 CU-E12NKE-3
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
