5 Secure the power supply cord and connection cable onto the control board with the holder.
6 Attach the control board cover back to the original position with the screw.
7 For wire stripping and connection requirement, refer to instruction 11.2.4 of the indoor unit.
WARNING
This equipment must be properly earthed.

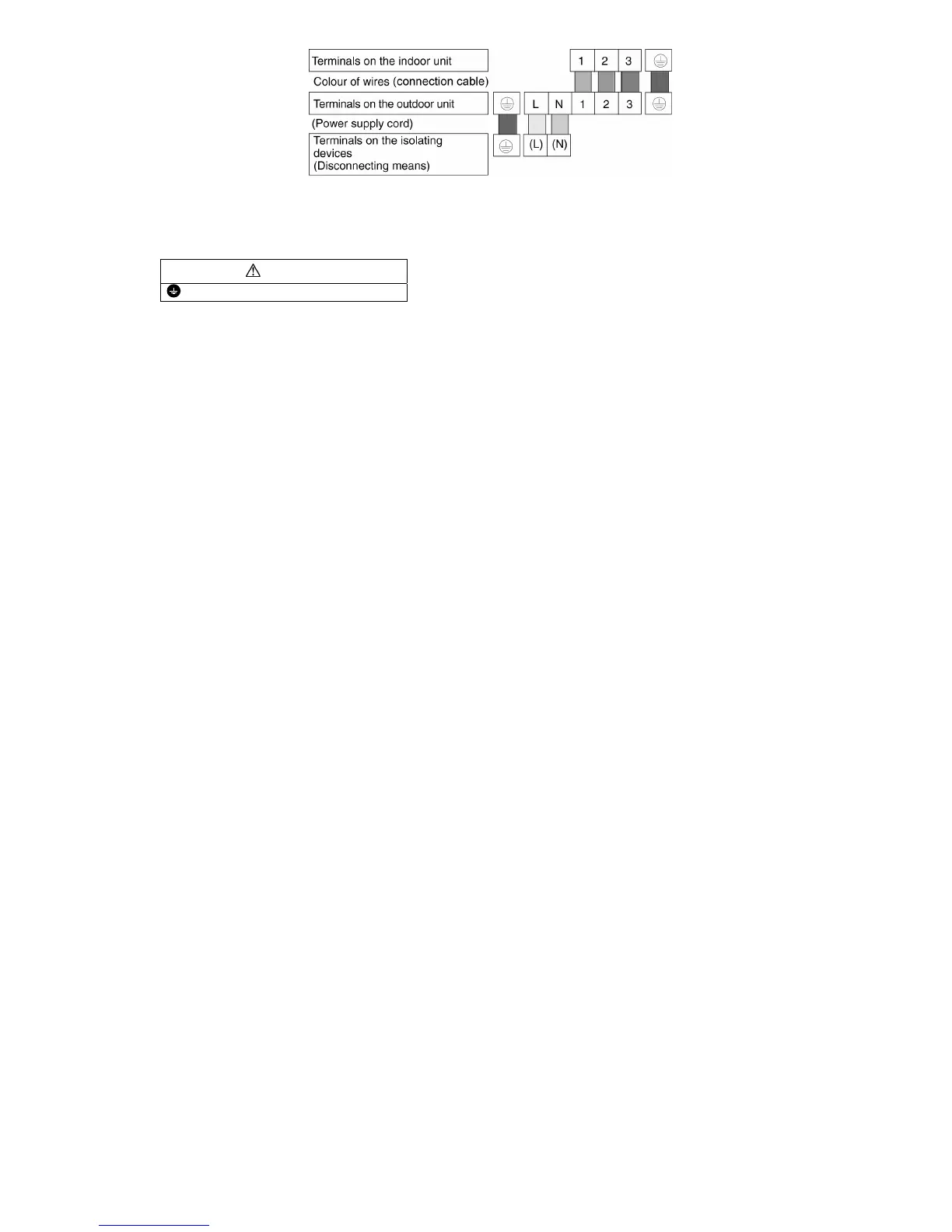

Note: Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.
Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.
11.3.5 Piping Insulation
1 Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation
Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.
2 If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by
using POLY-E FOAM with thickness 6 mm or above.
