Panasonic CS-E18GFEW Service Manual

4

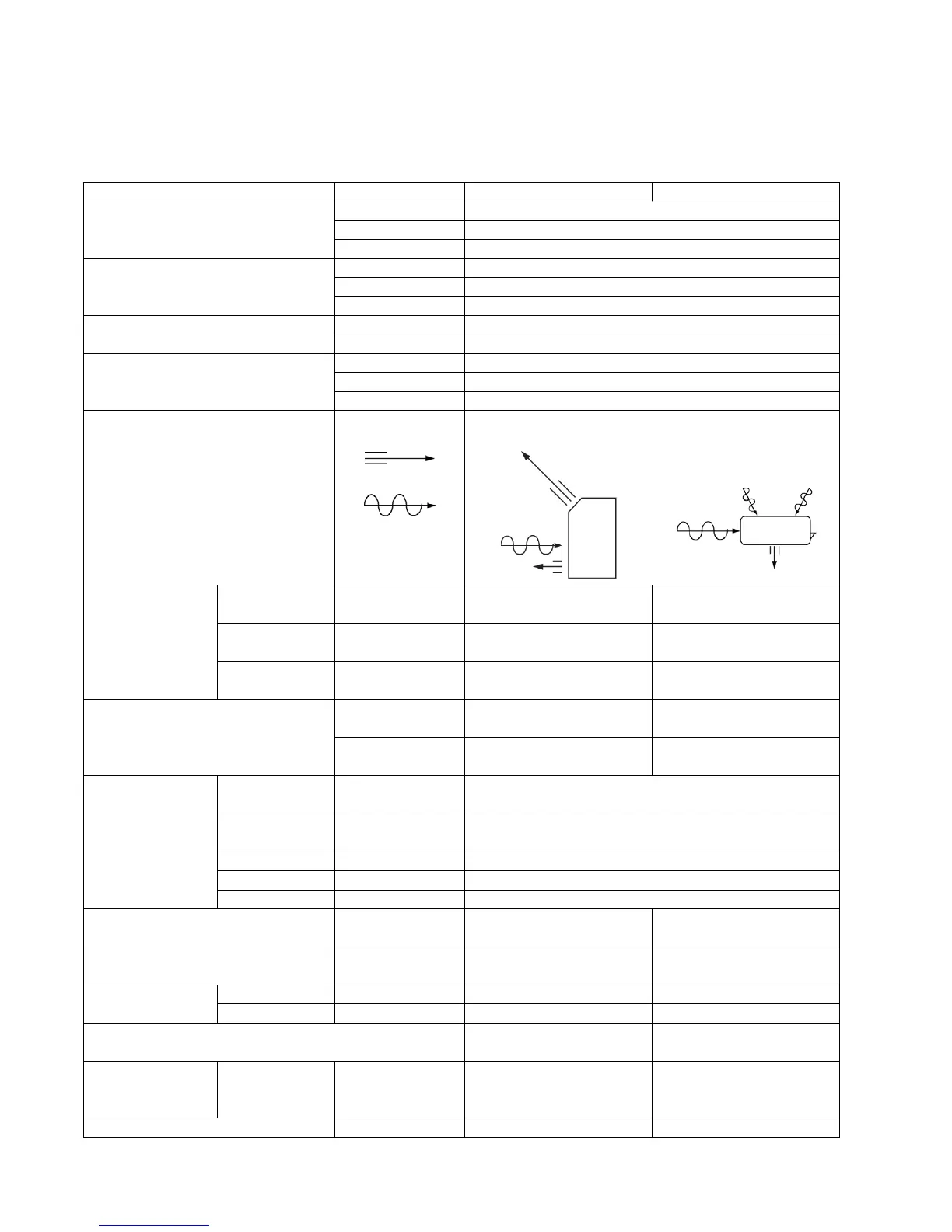

2 Specifications
2.1. Floor Type
2.1.1. CS-E9GFEW CU-E9GFE
ITEM UNIT CS-E9GFEW CU-E9GFE
Cooling Capacity
kW 2.50 (0.80 ~ 3.00)
kCal/h 2,150 (690 ~ 2,580)
BTU/h 8,500 (2,700 ~ 10,200)
Heating Capacity
kW 3.60 (0.80 ~ 5.00)
kCal/h 3,100 (690 ~ 4,300)
BTU/h 12,300 (2,700 ~ 17,100)
Moisture Removal
l/h 1.4
pt/h (2.9)
Power Source
Phase Single
V 220 / 230 / 240
Cycle 50
Airflow Method OUTLET
INTAKE
SIDE VIEW
TOP VIEW
Air Volume
Indoor Air (Lo)
m
3
/min (cfm)
Cooling; 5.6 (198)
—
Heating; 5.6 (198)
Indoor Air (Me)
m
3
/min (cfm)
Cooling; 7.4 (261)
—
Heating; 7.6 (268)
Indoor Air (Hi)
m
3
/min (cfm)
Cooling; 9.3 (328) Cooling; 29.8 (1,050)
Heating; 9.6 (339) Heating; 29.8 (1,050)
Noise Level
dB (A)
Cooling; High 38, Low 27 Cooling; 46
Heating; High 38, Low 28 Heating; 47
Power Level dB
Cooling; High 54 Cooling; 59
Heating; High 54 Heating; 60
Electrical Data
Input W
Cooling; 570 (175 - 780)
Heating; 865 (165 - 1,360)
Running Current A
Cooling; 2.75 / 2.70 / 2.65
Heating; 4.20 / 4.05 / 3.90
EER W/W(kcal/hw), BTU/hw Cooling; 4.39 (3.78), 15.0
COP W/W(kcal/hw), BTU/hw Heating; 4.16 (3.58), 14.2
Starting Current A 4.20
Piping Connection Port
(Flare piping)
inch G; Half Union 3/8" G; 3-way valve 3/8"
inch L; Half Union 1/4" L; 2-way valve 1/4"
Piping Size
(Flare piping)
inch G; (gas side); 3/8" G; (gas side); 3/8"
inch L; (liquid side); 1/4" L; (liquid side); 1/4"
Drain Hose
Inner diameter mm 15 —
Length m 220 —
Power Cord Length — —
Number of core-wire — —
Dimensions
Height (inch) mm 23-5/8 (600) 21-1/4 (540)
Width (inch) mm 27-9/16 (700) 30-23/32 (780)
Depth (inch) mm 8-9/32 (210) 11-3/8 (289)
Net Weight Ib (kg) 31 (14) 82 (37)
