16 Disassembly and Assembly Instructions
16.1. Indoor Electronic Controllers, Cross Flow Fan And Indoor Fan Motor
Removal Procedures

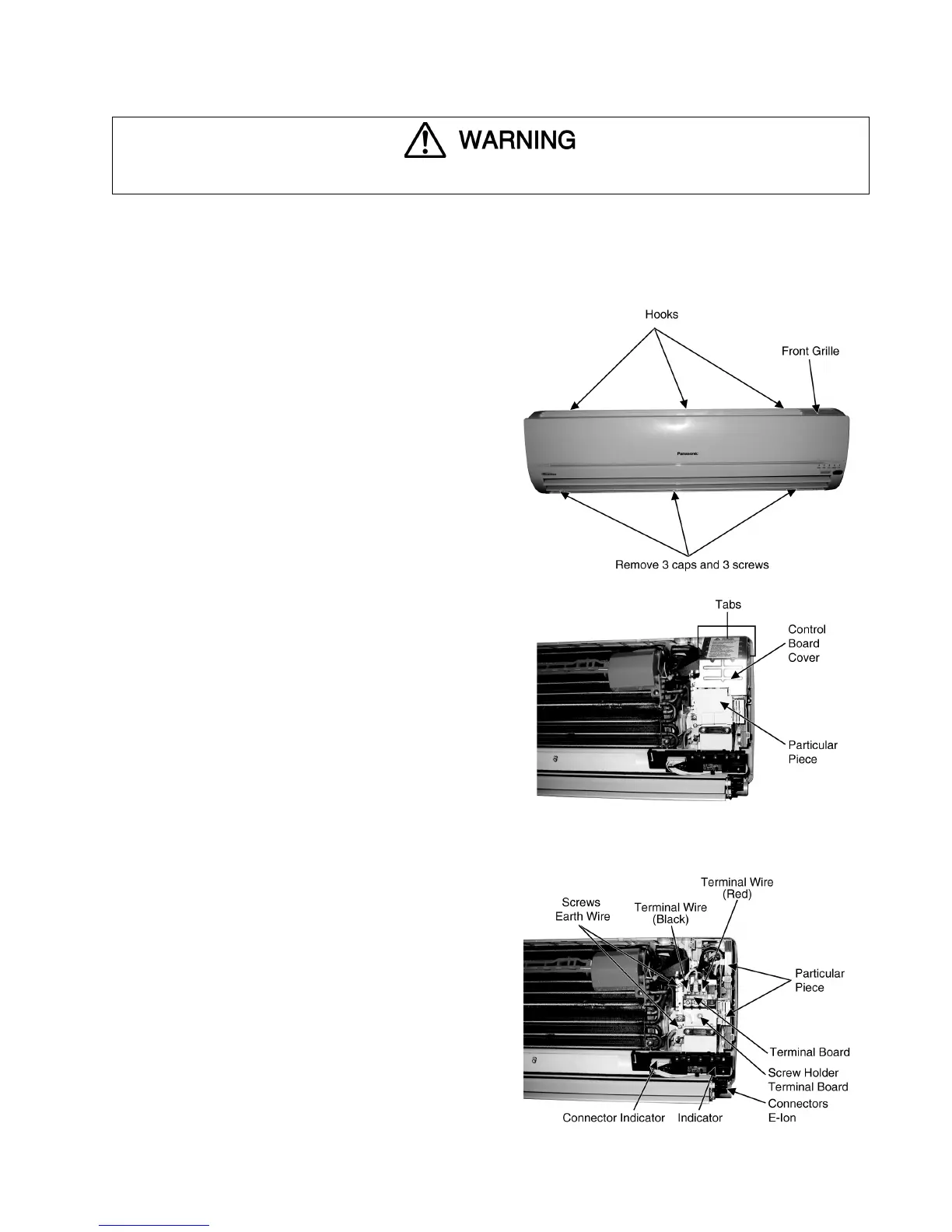

16.1.1. To remove the Front Grille
• Lift to open the vertical vent gently. Remove the 3 caps and
3 screws at the bottom of discharge vent. (Fig. 1)
• Remove the Front Grille by releasing the 3 hooks at the top
of the Front Grille. Hold both sides of the Front Grille and
remove it by pulling up and towards you gently. (Fig. 1)
• Unhook the tabs at the Control Board to remove the Control
Board Cover. (Fig. 2)
• Release the Particular Piece. (Fig. 2)
Fig. 1
Fig. 2
16.1.2. To remove the Main Electronic Controller
• Release the 2 screws for the earth wire. (Fig. 3)
• Pull out 2 terminal wires (Red and Black) from the Terminal
Board. (Fig. 3)
• Detach the connector Indicator and release the Indicator.
(Fig. 3)
• Release the 2 Particular Piece. (Fig. 3)
• Release the screw Holder Terminal Board. (Fig. 3)
• Release the 2 connector E-Ion. (Fig. 3)
Fig. 3
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
