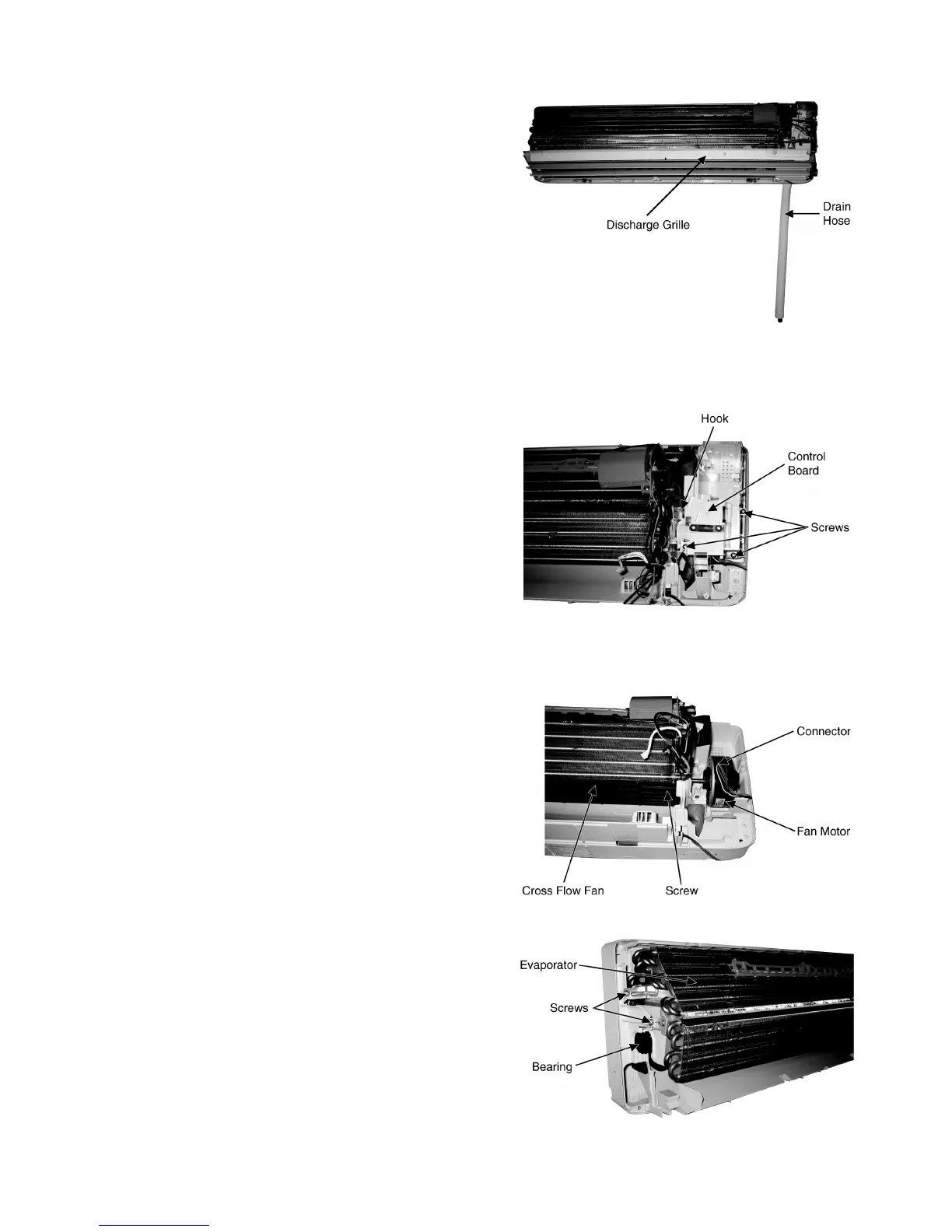

16.1.4. To remove the Discharge Grille
• Pull out the Drain Hose (Behind the Discharge Grille) from
outlet to remove the Discharge Grille. (Fig. 8)
Fig. 8
16.1.5. To remove the Control Board
• Release the 3 screws (Fig. 9)
• By pressing down the hook at the left, you will be able to
remove the Control Board. (Fig. 9)
Fig. 9
16.1.6. To remove the Cross Flow Fan and Indoor Fan Motor
• Remove the screw at the Cross Flow Fan. (Fig. 10)
Reminder:-
To reinstall the Fan Motor, please adjust the connector
location is positioned 90° with Fan Motor before fixing
Control Board. (Fig. 10)
• Remove the Bearing. (Fig. 11)
• Remove the screws at the left of the Evaporator. (Fig. 11)
Fig. 10
Fig. 11
