12.10. Indication Panel
Note:
• If POWER LED is blinking, the possible operation of the unit are Hot Start, during Deice operation, operation mode judgment, or
ON timer sampling.
• If Timer LED is blinking, there is an abnormality operation occurs.
• If e-ion LED is blinking, there is an abnormality of e-ion occurs.
• If PATROL LED is blinking, there is a gas sensor error detection.

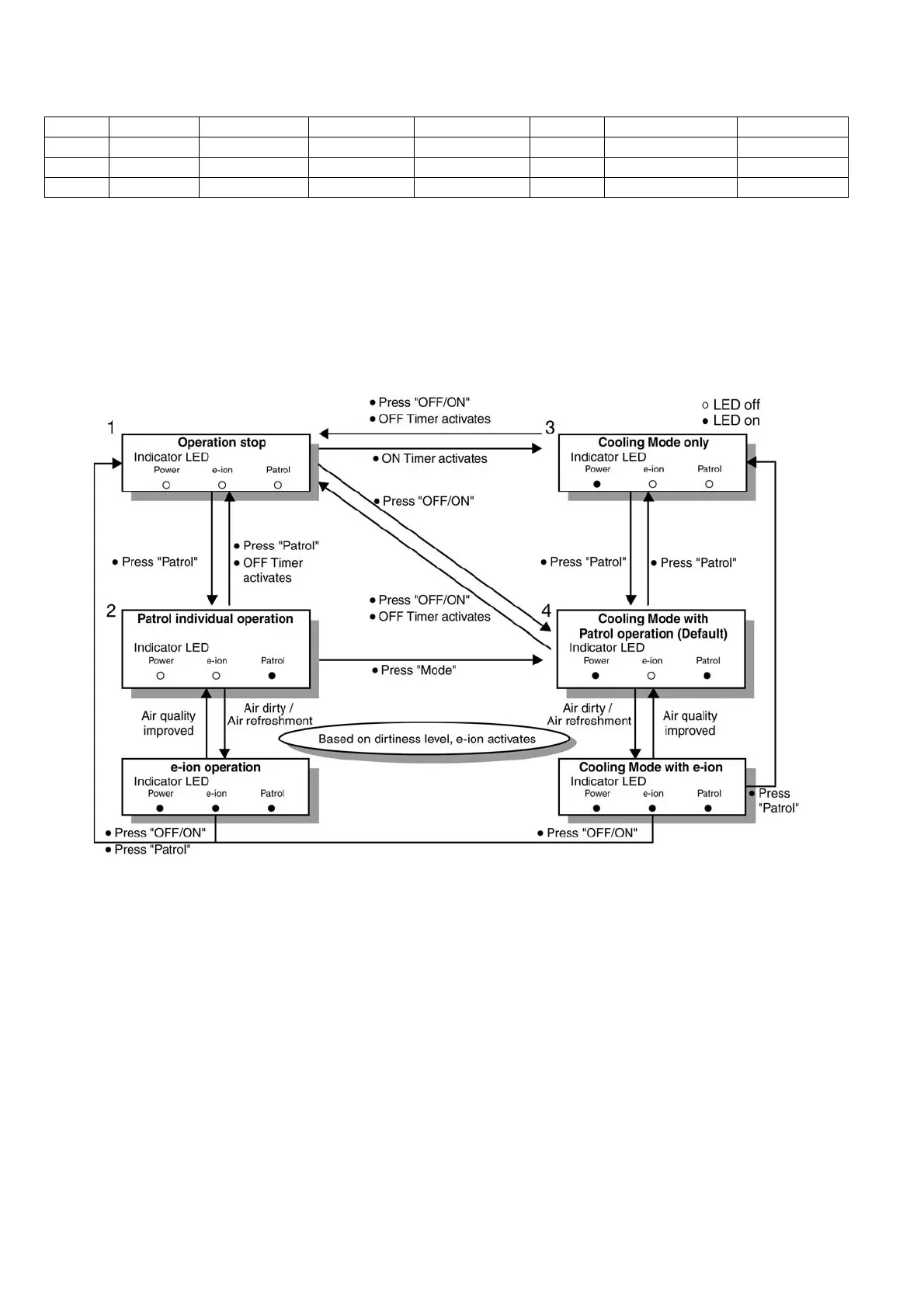

12.11. Patrol Operation
A. Purpose
To monitor air dirtiness level by using Patrol sensor and to maintain air freshness by activates e-ion operation.
B. Control Condition
a. Patrol operation start condition
• When the unit operation is started with “OFF/ON” button.
• When the unit stops, “Patrol” button is pressed, Patrol individual operation will start.
• During cooling only operation, “Patrol” button is pressed.
b. Patrol operation stop condition
When any of the following condition is fulfilled:
• When “OFF/ON” button is pressed.
• During any operation with Patrol, “Patrol” button is pressed again.
• When “e-ion” button is pressed.
• When OFF Timer activates.
LED POWER TIMER QUIET POWERFUL e-ion Mild Dry Cooling PATROL SENSOR
Color Green Orange Orange Orange Blue Blue Blue
Light ON Operation ON Timer Setting ON Quiet Mode ON Powerful Mode ON e-ion ON Mild Dry Cooling ON PATROL ON
Light OFF Operation OFF Timer Setting OFF Quiet Mode OFF Powerful Mode OFF e-ion OFF Mild Dry Cooling OFF PATROL OFF
