66
e. Indicator
• When Patrol operation starts, Patrol Sensor indicator ON.
• When e-ion operation starts based on dirtiness level, e-ion indicator ON.
g. Timer Control
• When ON timer activates when unit stops, previous operation resumes and restored last saved patrol operation status.
• When ON timer activates during any operation, no change and carry on current operation.
• When OFF timer activates during any operation, all operation stops and the latest patrol operation status is saved.
h. Power failure
• During Patrol individual operation, if power failure occurs, after power resumes, Patrol individual operation resumes
immediately.
• During combination operation, if power failure occurs, after power resumes combination operation resume immediately.
i. Error Detection Control
• The Patrol error detection control starts once the power is supplied to Patrol sensor. However, the error will display when the
Patrol operation is ON.
• Error detection method:
- If the Patrol sensor feedback is 0V or 5V continuous for 6 hours, Patrol sensor error occurs. However, the error will display
only when the Patrol operation is ON.
• Patrol Sensor Control after error occurs
- During any operation mode combines with Patrol operation
Power supply to Patrol sensor is OFF
Air conditioner normal mode operation continues with Patrol LED and Timer LED blinking and “H58” is indicated.
Timer LED will always blinking and the Patrol LED continues blinking if the Patrol operation is ON and stops blinking if the
patrol operation is OFF.
- During Patrol individual mode
Power supply to Patrol sensor is OFF
Patrol LED and Timer LED blinking and “H58” is indicated.
Timer LED will always blinking and the Patrol LED continues blinking if the Patrol operation is ON and stops blinking if the
Patrol operation is OFF.
• Error cancel condition:
- Power supply reset

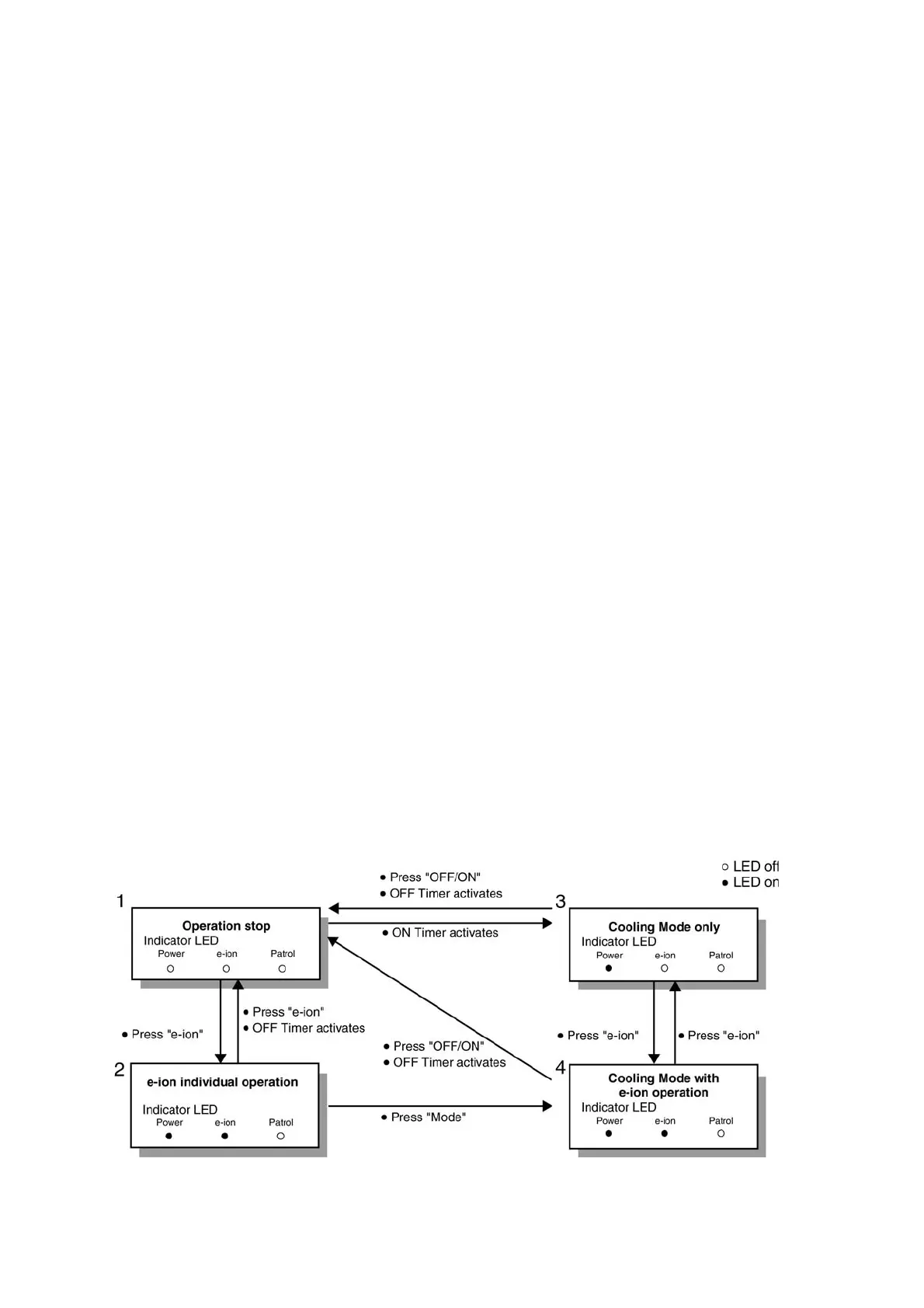

12.12. e-ion Operation
A. Purpose
This operation provides clean air by producing negative ions to attract dust captured at the positively charged e-ion filters.
f. Remote Control Receiving Sound
• Normal Operation
• Patrol Mode
• Patrol Mode
• Stop
Patrol Mode
Stop
Normal Operation
Patrol
:
:
:
:
Beep
Long Beep
Beep
Beep
