101

16.4.27 F97 (Compressor Overheating)

Malfunction Decision Conditions

 During operation of cooling and heating, when compressor tank temperature data (112°C) is detected by the

compressor tank temperature sensor.

Malfunction Caused

 Faulty compressor tank temperature sensor

 2/3 way valve closed

 Refrigerant shortage (refrigerant leakage)

 Faulty outdoor unit PCB

 Faulty compressor

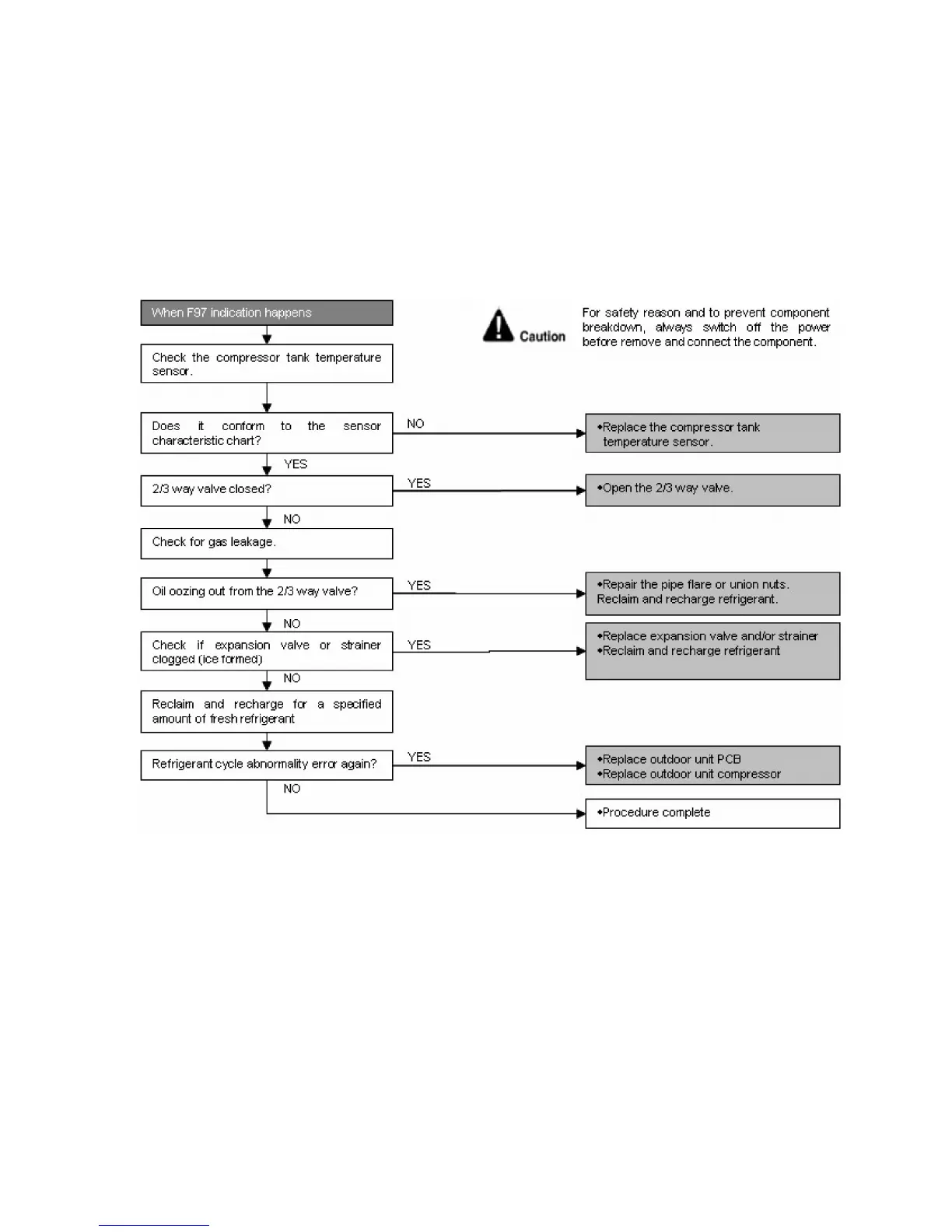

Troubleshooting
