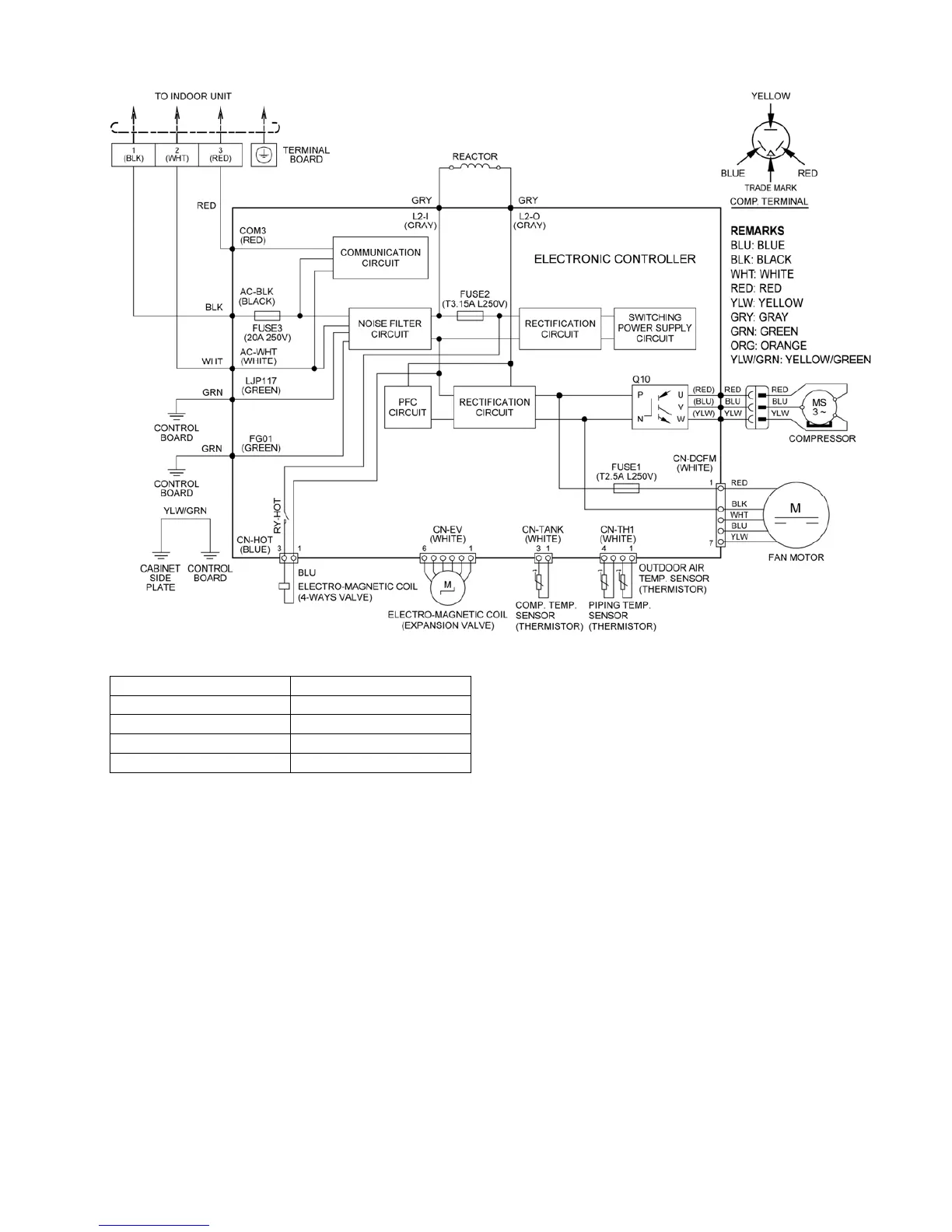

8.2.2 CU-E15PKEA CU-E18PKEA

Resistance of Compressor Windings

MODEL CU-E15PKEA / CU-E18PKEA

CONNECTION 5RD132XBA21 (Ω)

U-V 1.897

U-W 1.907

V-W 1.882

Note: Resistance at 20°C of ambient temperature.

Default Chapter2
- Table of Contents2
1 Safety Precautions3
2 Specifications5
3 Features14
4 Location of Controls and Components15
5 Dimensions16
- Indoor Unit16
- Outdoor Unit18
6 Refrigeration Cycle Diagram19
- Cu-E9Pkea Cu-E12Pkea19
- Cu-E15Pkea Cu-E18Pkea20
7 Block Diagram21
- Cs-E9Pkea Cu-E9Pkea Cs-E12Pkea Cu-E12Pkea21
- Cs-E15Pkea Cu-E15Pkea Cs-E18Pkea Cu-E18Pkea22
8 Wiring Connection Diagram23
- Indoor Unit23
- Outdoor Unit24
9 Electronic Circuit Diagram26
- Indoor Unit26
- Outdoor Unit27
10 Printed Circuit Board29
- Indoor Unit29
- Outdoor Unit30
11 Installation Instruction32
12 Operation Control41
13 Protection Control50
14 Servicing Mode54
- Auto OFF/ON Button54
- Remote Control Button55
15 Troubleshooting Guide56
16 Disassembly and Assembly Instructions89
17 Technical Data100
- Operation Characteristics100
- Sensible Capacity Chart116
18 Exploded View and Replacement Parts List117
- Indoor Unit117
- Outdoor Unit123
