WARNING
16. Disassembly and Assembly Instructions
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
16.1 CS-E9PKEA CS-E12PKEA CS-E15PKEA
16.1.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

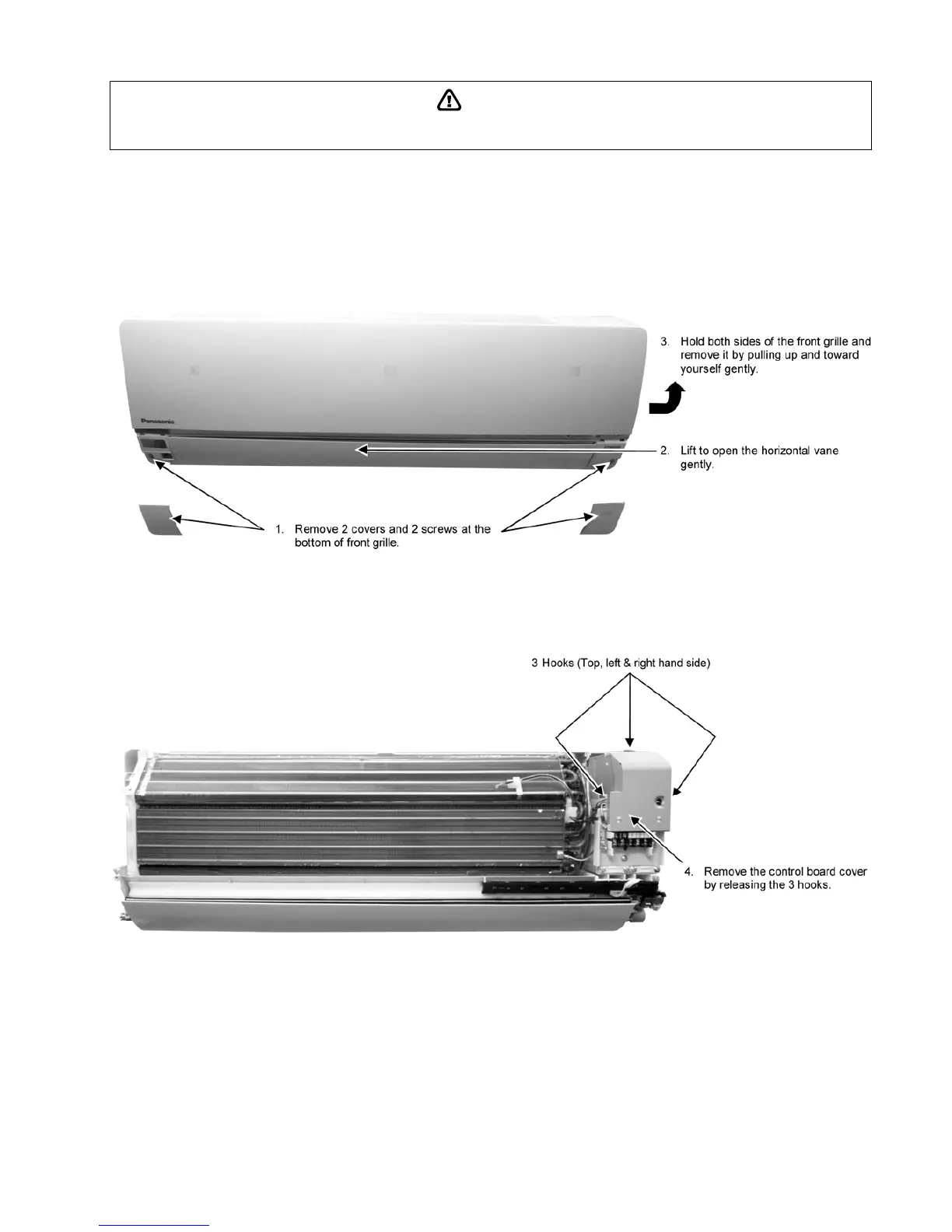

16.1.1.1 To remove front grille
Figure 1
16.1.1.2 To remove electronic controller
Figure 2
To Next Page
