12.4.2 Horizontal Airflow

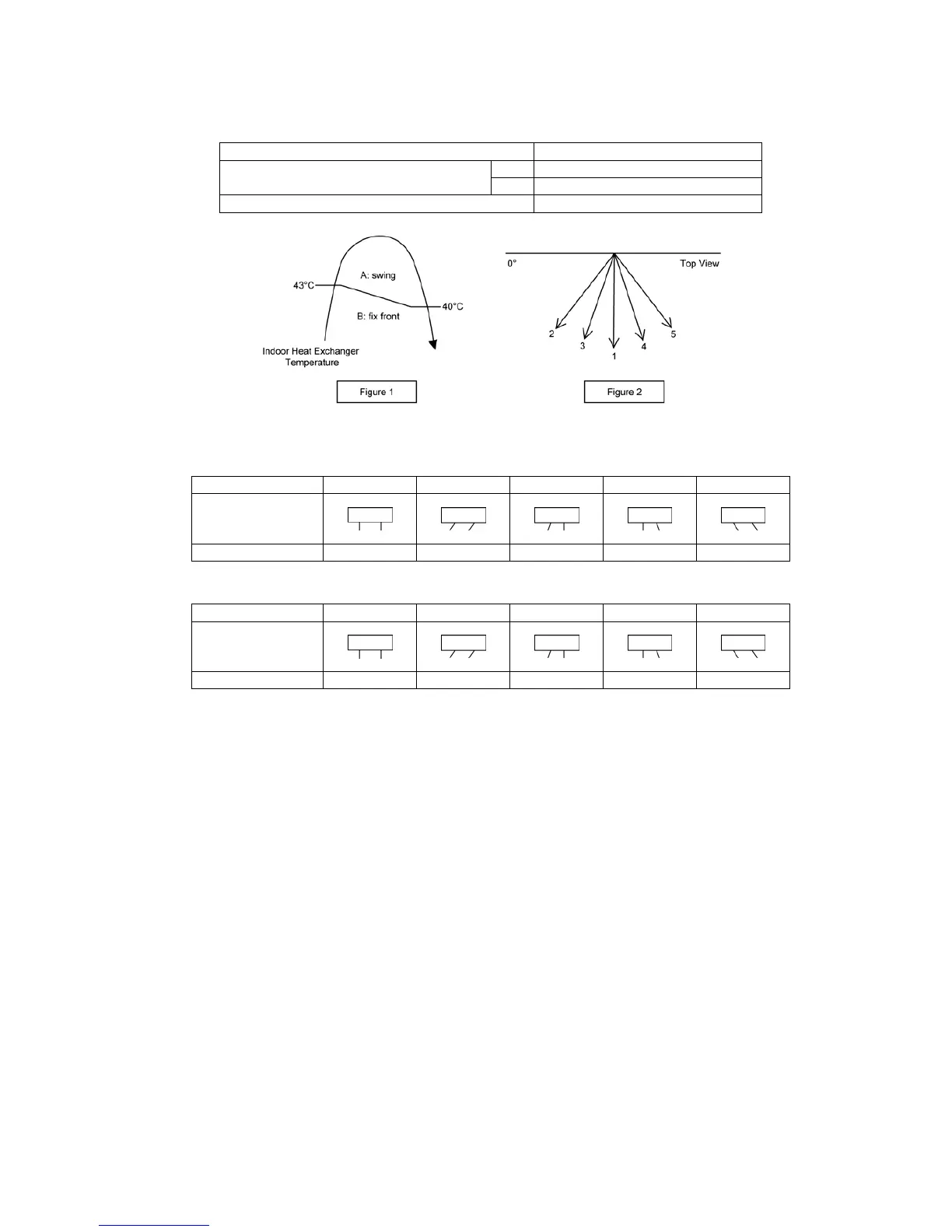

• Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the
angles as stated below. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop.
Operation Mode Vane Angle (°)
A 65 ~115
Heating, with heat exchanger temperature
B 90
Cooling and soft dry 65 ~115
• Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated below
and the positions of the vane are as Figure 2 above.
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 65 77.5 102.5 115
CS-E9/12/15PKEA
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 70 80 100 110
CS-E18PKEA
12.5 Quiet operation (Cooling Mode/Cooling area of Dry Mode)
• Purpose
o To provide quiet cooling operation compare to normal operation.
• Control condition
o Quiet operation start condition
 When “POWERFUL/QUIET” button at remote control is pressed twice.
POWERFUL/QUIET LED illuminates.
o Quiet operation stop condition
 When one of the following conditions is satisfied, quiet operation stops:
• POWERFUL/QUIET button is pressed again.
• Stop by OFF/ON switch.
• Timer “off” activates.
 When quiet operation is stopped, operation is shifted to normal operation with previous setting.
 When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.
 When operation mode is changed, quiet operation is shifted to quiet operation of the new mode.
 During quiet operation, if timer “on” activates, quiet operation maintains.
 After off, when on back, quiet operation is not memorised.
• Control contents
o Fan speed is changed from normal setting to quiet setting of respective fan speed.
o Fan speed for quiet operation is reduced from setting fan speed.
