46

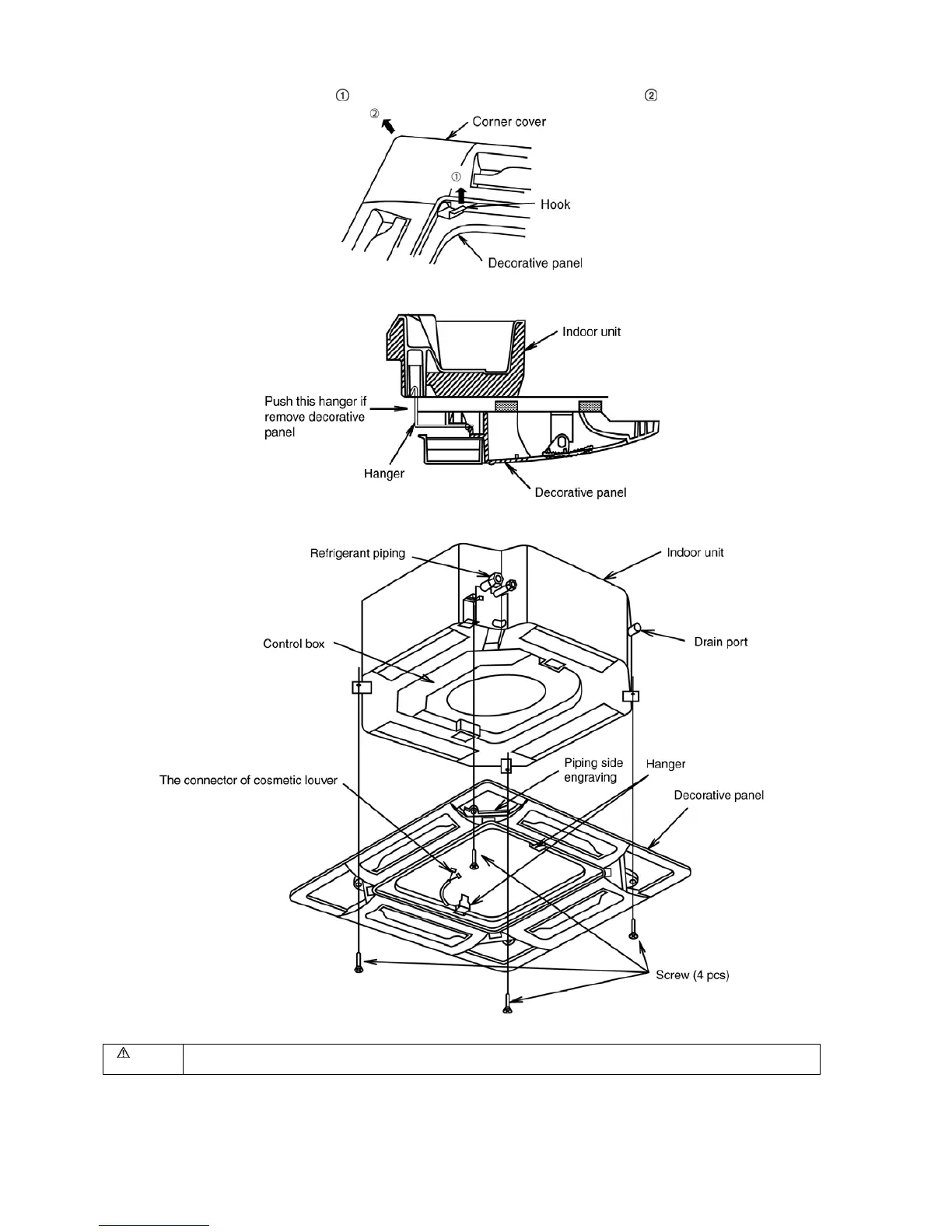

2. Remove the corner cover in 4 corner places.
Pull hook of corner cover as direction , at same time remove it by sliding out in direction .
3. Fix the hanger (2 pieces) of the decorative panel to the indoor unit.
There is direction information at decorative panel [PIPING SIDE] indication meaning the direction of piping side.
4. Adjust between decorative panel fixing hole and indoor unit screw hole.
5. Fix decorative panel with 4 screws with already fix at paper model for installation.
Caution
Install certainly the decorative panel.
Cool air leakage causes sweating. → Water drops fall.
To Next Page
