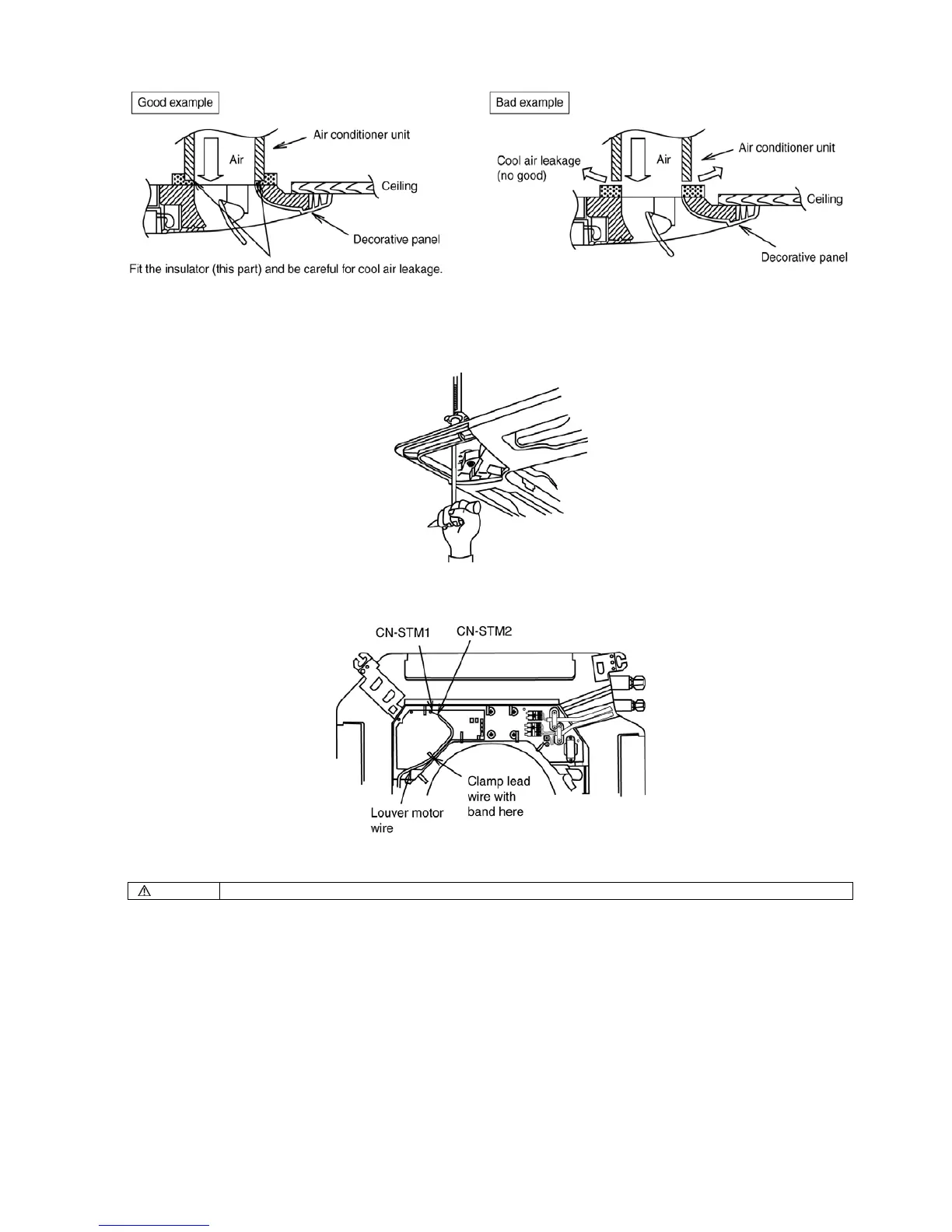

6. Adhere the cosmetic panel and ceiling wall together and corfirm no gap in between. Readjust indoor unit height, if there is a
gap between ceiling wall and decorative panel although it have been fixed by screw.
If there are no effect to the indoor unit level and drain piping etc., the adjustment of indoor unit height can be adjusted through
the corner hole. Tighten back firmly the fixing nut of indoor unit after adjustment has been made.
7. Open the indoor control box cover. (2 pcs)
8. Insert firmly the connector of cosmetic louver to indoor pcb CN-STM1 and CN-STM2.
Be caution not to clamp the cord in between control board and control board cover.
9. After complete, install back removed part follow opposite procedure.
If fixing wireless remocon, follow the instruction manual that include inside wireless remocon accessory.
(Remote Control Address Setting)
(Refer to the Installation Manual which is provided with the remote controller for details.)
• Two remote controllers (including the wireless remote controller) can be connected. However, remote control thermistor setting is
not possible.
• As for [master/slave] setting of remote controller, the automatic setting and manual setting are possible. Since manual setting is
priority.
• Two remote controllers, which both are wireless, cannot be connected.
Warning
Be sure to hook the air inlet grill string, to prevent grill from falling and causing injury from it.
