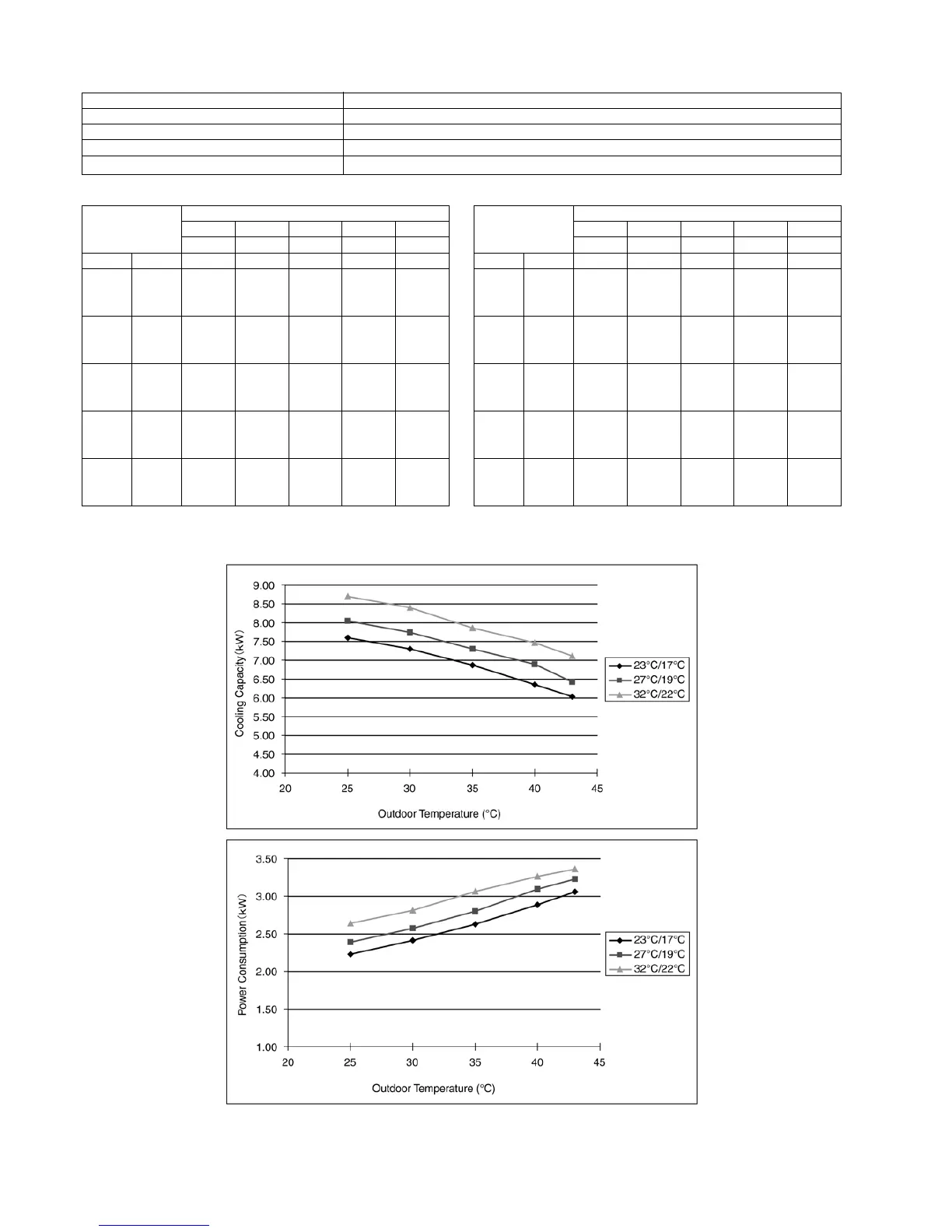

TC: Cooling Capacity IPT: Cooling Power Consumption
Model Cooling capacities are based on conditions
CS-F28DB4E5 Single phase, 50Hz 230V
Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.
7.3kW Outdoor temp. 35°C D.B.
Standard air volume 20 m
3
/min
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C30°C35°C40°C43°C
Air TCTCTCTCTC
D.B. W.B. kW kW kW kW kW
17 7.60 7.30 6.87 6.35 5.98
23 19 8.02 7.77 7.38 6.88 6.53
22 8.76 8.53 8.14 7.61 7.25
17 7.51 7.22 6.80 6.31 5.95
25 19 8.03 7.76 7.34 6.83 6.48
22 8.76 8.49 8.08 7.52 7.19
17 7.42 7.13 6.73 6.26 5.92
27 19 8.04 7.74 7.30 6.79 6.42
22 8.75 8.46 8.02 7.45 7.12
17 7.40 7.14 6.72 6.31 6.00
29 19 8.03 7.74 7.30 6.84 6.50
22 8.72 8.42 7.96 7.46 7.11
17 7.39 7.14 6.24 6.34 6.04
32 19 8.02 7.74 7.30 6.88 6.56
22 8.69 8.40 7.95 7.46 7.11
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C30°C35°C40°C43°C
Air IPT IPT IPT IPT IPT
D.B. W.B. kW kW kW kW kW
17 2.23 2.41 2.63 2.88 3.06
23 19 2.36 2.56 2.79 3.06 3.24
22 2.55 2.76 3.01 3.30 3.50
17 2.23 2.41 2.62 2.87 3.04
25 19 2.38 2.57 2.79 3.05 3.23
22 2.57 2.77 3.02 3.29 3.49
17 2.23 2.41 2.62 2.85 3.02
27 19 2.39 2.57 2.80 3.04 3.23
22 2.58 2.78 3.02 3.29 3.48
17 2.22 2.40 2.59 2.78 2.90
29 19 2.37 2.57 2.77 2.97 3.10
22 2.61 2.83 3.05 3.27 3.41
17 2.21 2.40 2.57 2.73 2.82
32 19 2.36 2.56 2.74 2.92 3.01
22 2.64 2.86 3.06 3.26 3.36
