Manual louver setting
Auto louver setting
• Temperature range for louver control during heating operation is as follows; decide by indoor heat exchanger temperature.
9.6.4. Cooling Outdoor Fan Control
• During cooling operation, outdoor fan speed changes according to outdoor pipe temperature.
• The fan speed is controlled by the timing of turning the outdoor fan ON and OFF within an interval.
• When outdoor pipe temperature increase, interval timing increased.
• Outdoor fan ON time is a variable with the range of 200ms to 2000ms.
• After 2 minutes, the outdoor pipe temperature is detected and the outdoor unit fan speed is changed automatically.

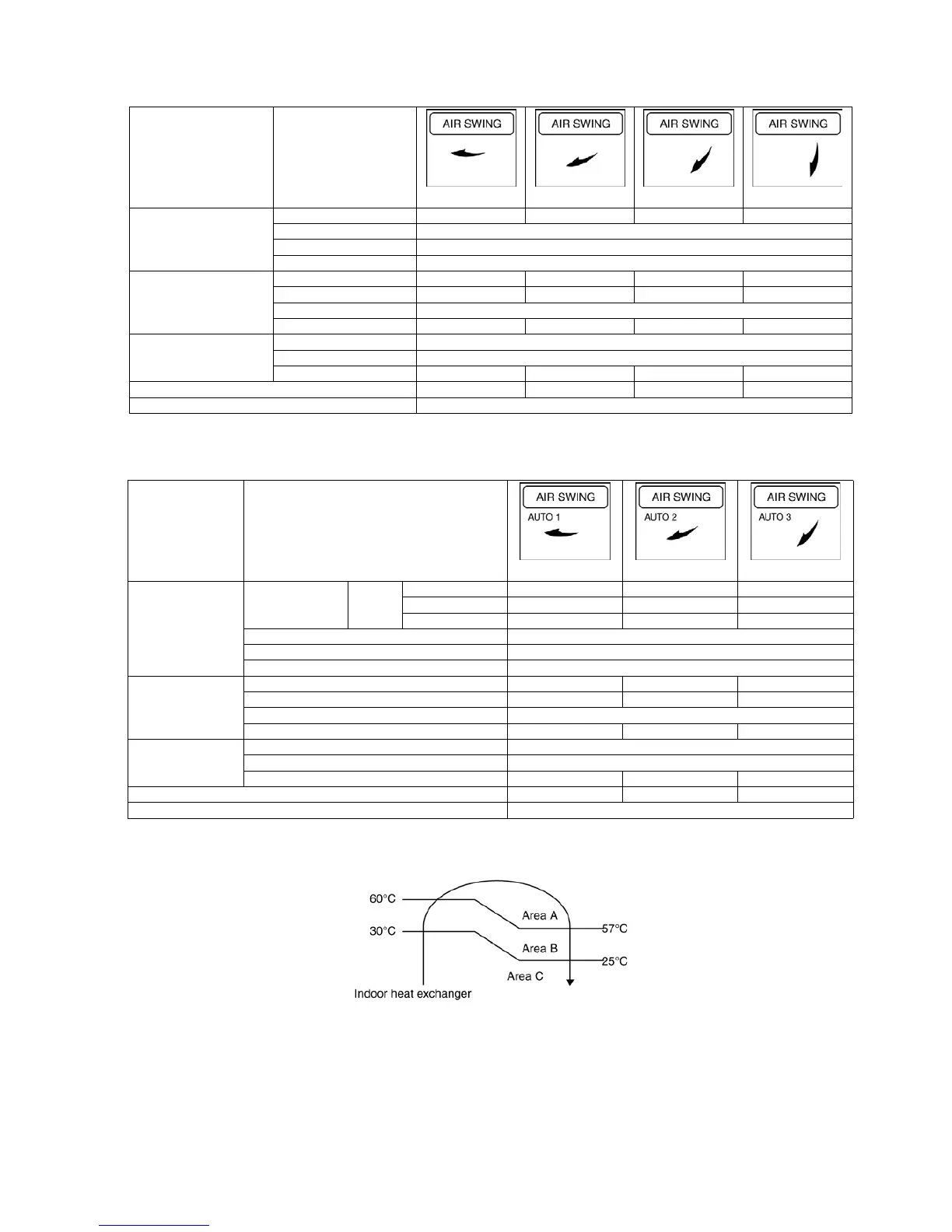

Operation Mode Display manual
Set 1 Set 2 Set 3 Set 4
Normal 20° 35° 50° 70°
Heating Deice 10°
Hot start 10°
Thermostat Off 20°
Fan 20° 35° 50° 70°
Cooling Normal 20° 35° 50° 70°
(Fan) Dew Control 50°
Thermostat Off 20° 35° 50° 70°
Normal 30°
Soft Dry Dew Control 50°
Thermostat Off 20° 35° 50° 70°
Operation mode judge 20° 35° 50° 70°
Stop Mode 0°
Operation Display
auto
set
AUTO 1 AUTO 2 AUTO 3
A70° 70° 70°
Normal Sensor B 20° - 70° 20° - 50° 40° - 70°
Heating C 20° 20° 20°
Deice 10°
Hot Start 10°
Thermostat Off 20°
Fan 20° - 70
° 20° - 50° 40° - 70°
Cooling Normal 20° - 70° 20° - 50° 40° - 70°
(Fan) Dew Control 50°
Thermostat Off 20° - 70° 20° - 50° 40° - 70°
Normal 30°
Soft Dry Dew Control 50°
Thermostat Off 20° - 70° 20° - 50° 40° - 70°
Operation mode judge 20° 20° 20°
Stop Mode 0°
