60

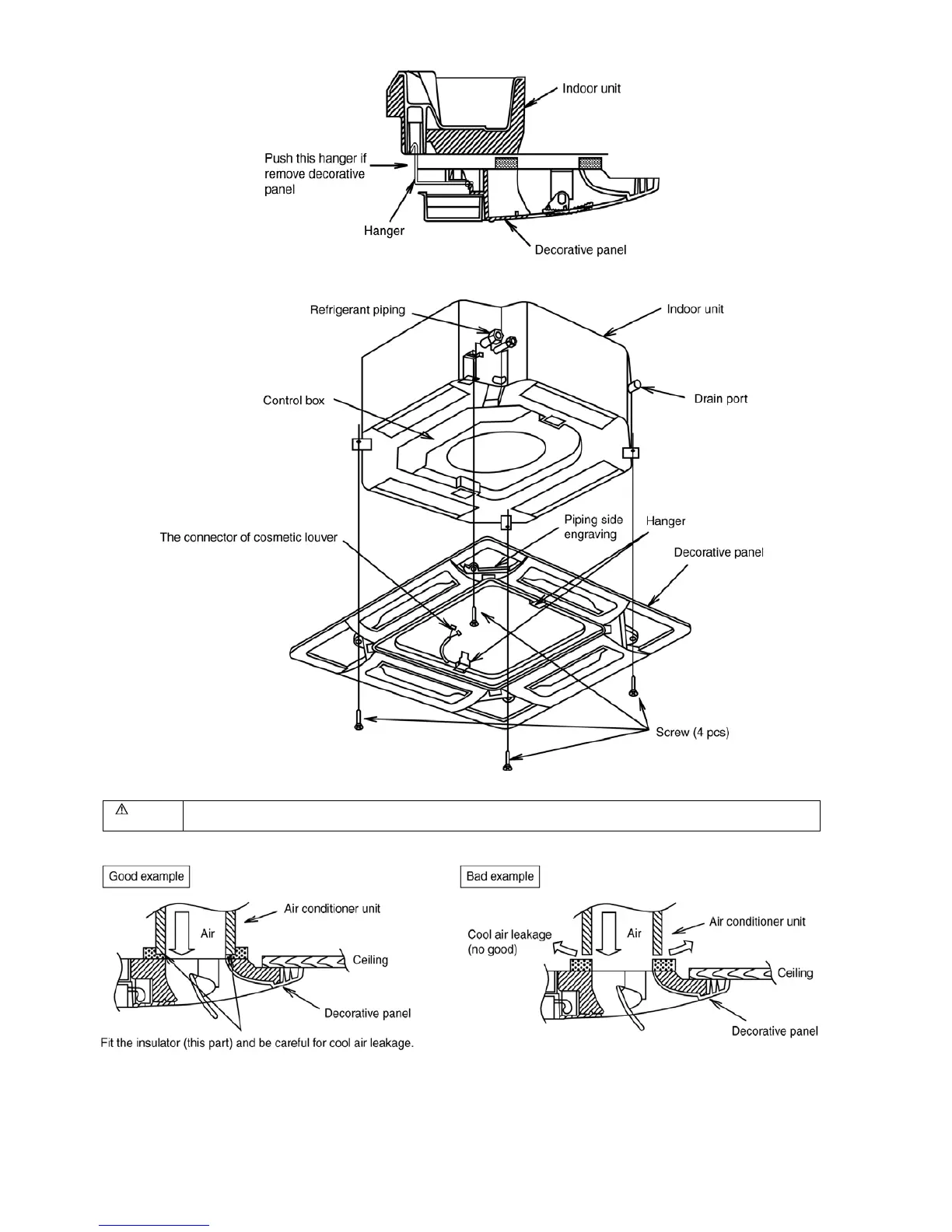

4. Adjust between decorative panel fixing hole and indoor unit screw hole.
5. Fix decorative panel with 4 screws with already fix at paper model for installation.
6. Adhere the cosmetic panel and ceiling wall together and corfirm no gap in between. Readjust indoor unit height, if there is a
gap between ceiling wall and decorative panel although it have been fixed by screw.
If there are no effect to the indoor unit level and drain piping etc., the adjustment of indoor unit height can be adjusted through
the corner hole. Tighten back firmly the fixing nut of indoor unit after adjustment has been made.
Caution
Install certainly the decorative panel.
Cool air leakage causes sweating. → Water drops fall.
To Next Page
