• Installing the wireless remote controller to a wall (for remote control storage).
• If using a single remote controller to operate several air conditioners, address setting will be required. (Refer to later in this
manual.)
• For twin and triple types, install to the main unit only. (Accordingly, the installation and wiring operations described later in this
manual are for the main unit only.)

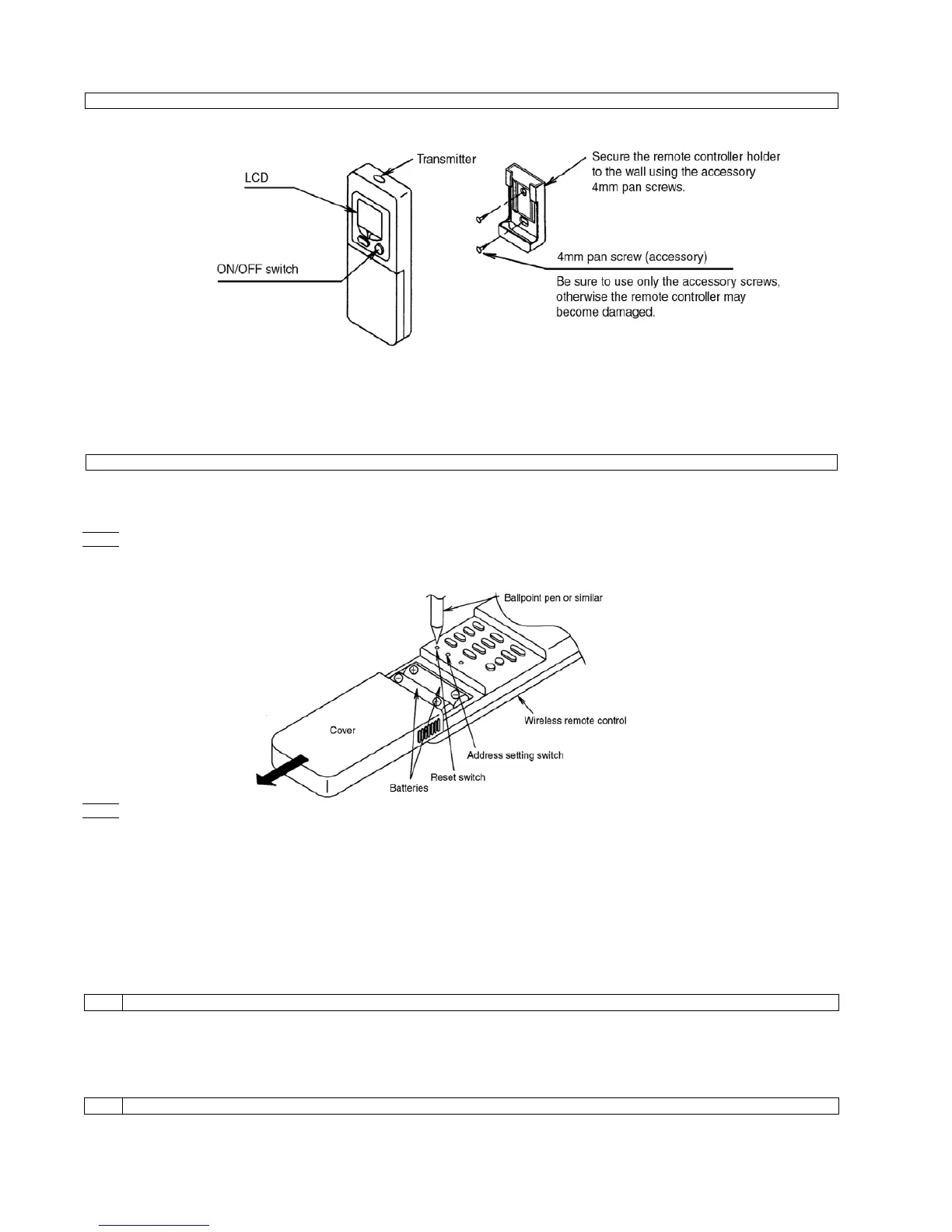

• Remove the battery compartment cover of the wireless remote controller, and then insert the two accessory R03 size batteries.
(Be sure not to make a mistake with the polarities.)
NOTE
The accessory batteries are to be used when checking operation. They should be replaced with new batteries as soon as possible.
(Be sure not to make a mistake with the polarities.)
NOTE
• When inserting the batteries for the first time, or when replacing the batteries, the remote controller may stop working. In such
case, use a ballpoint pen or similar object to push the reset switch.
The remote controller should then start working normally.
• Replace the batteries with two new batteries of the same kind.
• Rechargeable (Ni-Cd) batteries differ in aspects such as shape and performance, and thus cannot be use.
10.7.3. Installing the receptor unit
Receptor unit (for four-way cassette type) assembly procedure
1. Remove the “corner cover” at the decorative panel indicate “Panasonic” logo left side.
2. Attach the receptor unit which same position.
Wireless remote control installation procedure
Inserting the batteries
1 Attach the receptor unit onto the decorative panel of the indoor unit as shown in the figure below.
2 Route the joint cord for wiring and connect it to P.C.B connector <CN-DISP> in the control box of the indoor unit.
