Panasonic CS-F50DTE5 Simplified Service Manual

17

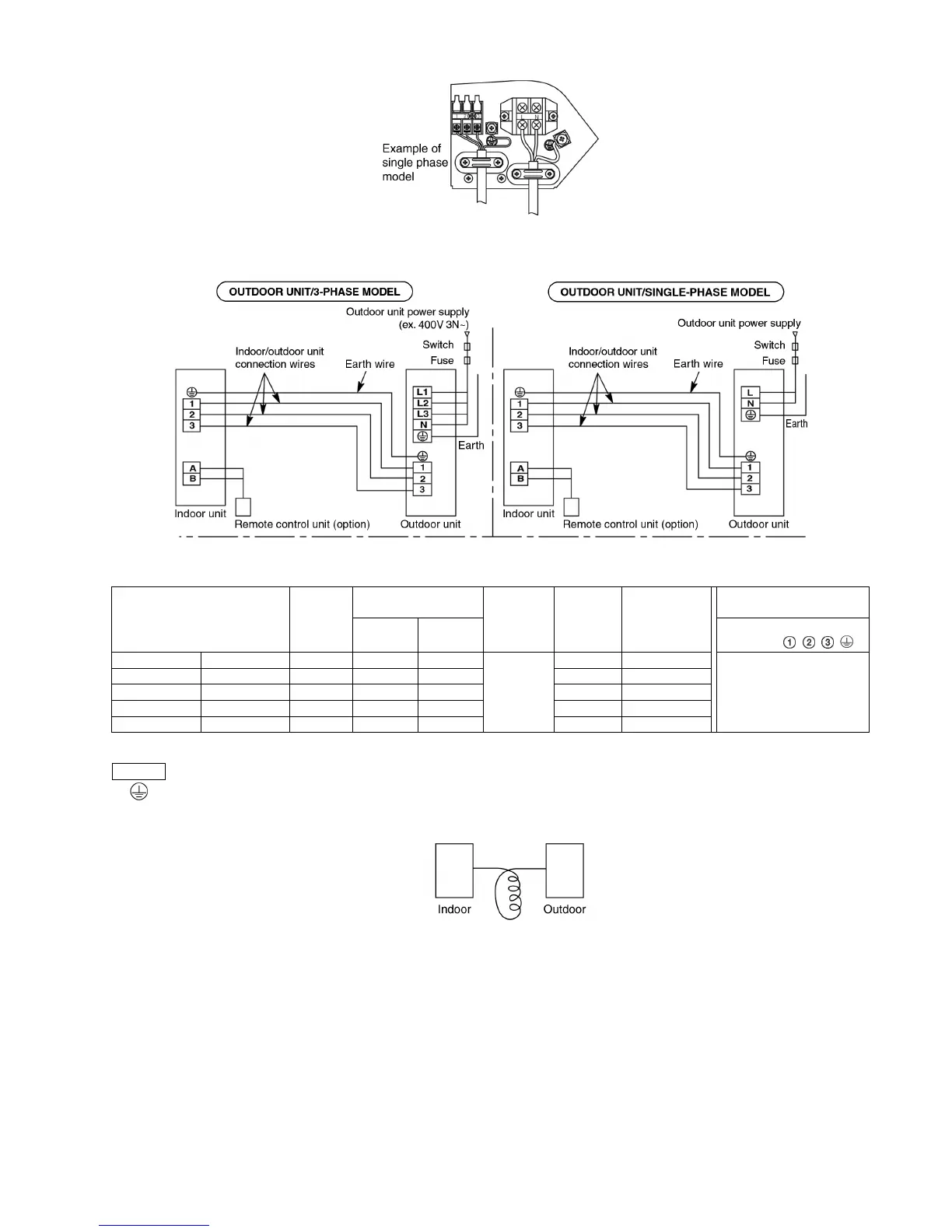

Earth lead wire shall be longer than other lead wires as shown in the figure for the electrical safety in case of the slipping out of the
cord from the anchorage.
• Power supply specifications
Model name Leakage
current
breaker
(A)
Circuit breaker
(Minimum Capacity)
Minimum
power
supply
cables
4mm
2
cable
based on
length (m)
Maximum
permissible
impedance
(Ω)
Indoor/outdoor
unit connection
Switch
(A)
Fuse
(A)
power cables
(terminals , , , )
CU-L24DB*** 220V-240V~ 30 30 20
4mm
2
14 0.1
2.5 mm
2
x 4
CU-L28DB*** 220V-240V~ 30 30 20 14 0.1
CU-L34DB*** 220V-240V~ 40 40 30 9 0.05
CU-L43DB*** 220V-240V~ 40 40 40 8 0.05
CU-L50DBE5 240V~ 40 40 40 8
NOTE
1. Where ground work (earth) is carried out, do not connect the ground return to the gas pipe, water line pipe, grounded circuit of the
telephone and lightning rod, or ground circuit of other product in which earth leakage breaker is incorporated. (Such action is
prohibited by statute, etc.)
Make sure the indoor and outdoor connection wires are detangled. (There might be effect to received outside noise.)
2. Use the standard power supply cables for Europe (such as H05RN-F or H07RN-F which conforms to CENELEC (HAR) rating
specifications) or use the cables based on IEC standard. (245IEC57, 245IEC66)
3. Select the particular size of electrical wire for power supply cables in accordance with the standards of the given nation and
region.

Panasonic CS-F50DTE5 Specifications

General

Indoor unit type	Ceiling
Indoor unit weight	47000 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	1600 x 700 x 250 mm
Indoor unit noise level (high speed)	50 dB
Outdoor unit weight	105000 g
Outdoor unit noise level	56 dB
Outdoor unit dimensions (WxDxH)	900 x 320 x 1340 mm
Hose length (max)	50 m
Inverter technology	Yes
Refrigerating medium	R410A
Cooling capacity (max)	47700 BTU/h
Heating capacity (max)	54600 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (max)	16000 W
Cooling energy efficiency (EER, W/W)	2.91
Heating energy efficiency (COP, W/W)	3.41
