Warning
Operation Precautions
Do not share outlet.
Do not insert plug to operate the unit. Do not
pull out plug to stop the unit.
Do not operate with wet hands.
Do not damage or modify the power cord.
Do not insert finger or other objects into the
indoor or outdoor units.
Do not expose directly to cold air for a long
period.
Do not touch the back of the outdoor unit by
hands.
Plug in properly.
Use specified power cord.
If abnormal condition (burnt smell, etc.)
occurs, switch off and unplug the power
supply.
Caution
Do not pull the cord to disconnect the plug.
Do not wash the unit with water.
Do not use for other purposes such as
preservation.
Do not use any combustible equipment at
airflow direction.
Do not sit or place anything on the outdoor unit.
Ventilate the room regularly.
Pay attention as to whether the installation
rack is damaged after long period of usage.
Switch off the power supply if the unit is not
used for a long period.

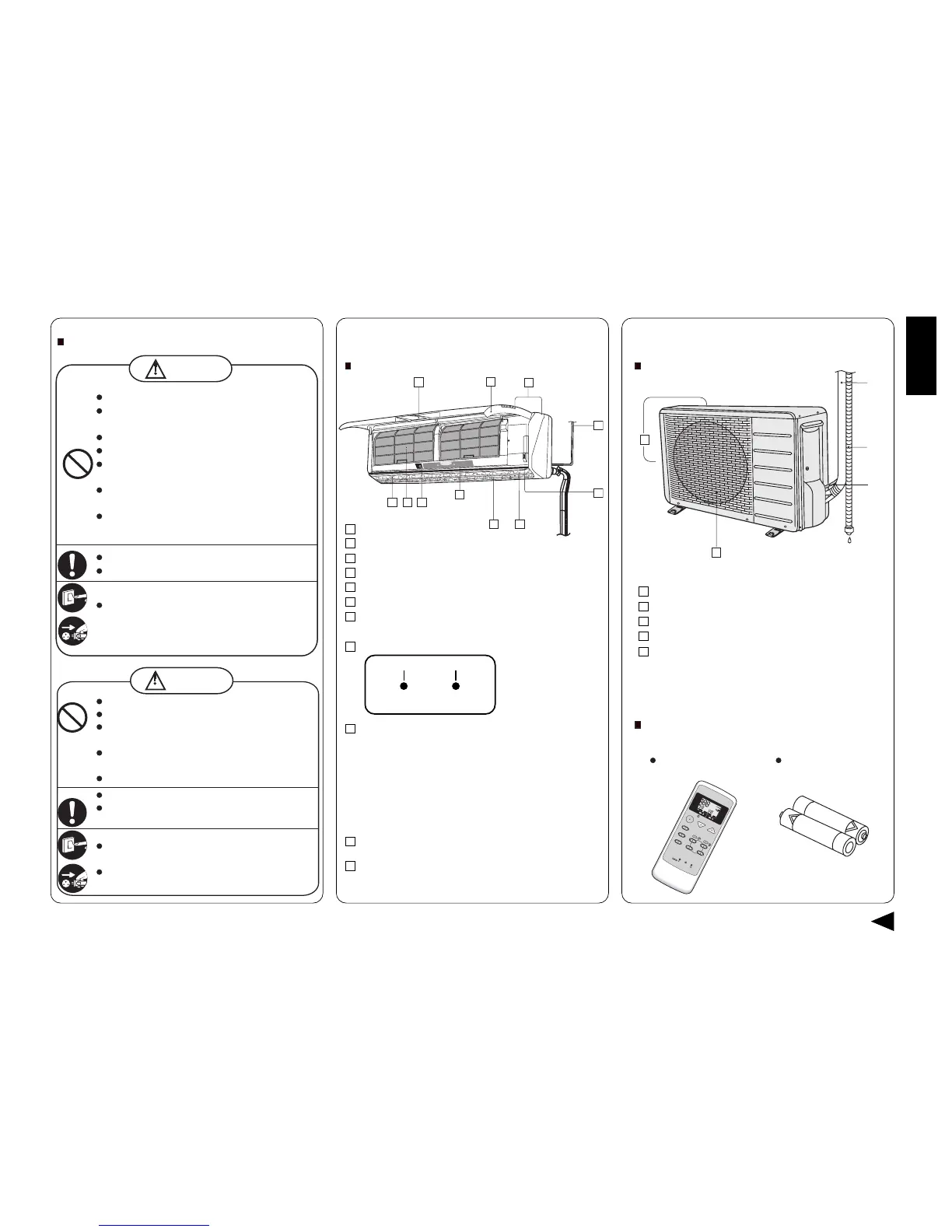

Names of Each Part
Indoor Unit
Outdoor Unit
Inverter
3
1
4
5
6
7
8
910
11
Intake Grille
Remote Control Signal Receiver
Vertical Airflow Direction Louver
Horizontal Airflow Direction
Louver(manually adjusted)
Operation Indicator
Auto Operation / Test Run Operation
If the remote control not available, press the
button for Auto Operation. Keeping this but-
ton depressed for more than 5 seconds to
start the Test Operation (Cool Operation) and
8 seconds to start the Test Operation (Heat
Operation), for the purpose of installation or
repairment only.
Air Filter
Air Outlet Vent
1
5
6
7
8
9
10
11
Air Inlet Vent
Pipes
Connecting Cables
Drain Hose
Air Outlet Vent
Accessories
Remote Control Two dry-cell batteries.
1
2
3
4
5
Switch off the power supply before cleaning.
ENGLISH
2
Air Intake Vent
3
Power Supply Cord
4
Intake Grille Opener
2
Green
POWER
Orange
TIMER
hr
DELAY
hr
DELAY
OFF ON
SELECT
SET/CANCEL
ERROR RESET
ON OFF
AUTO
HEAT
COOL
DRY
FAN
AIR
SWING
SPEED
AUTO
AUTO
A
B
OFF/ON
TEMP
MODE
FAN SPEED
AIR SWING
TIMER
A
B
RESET
