Panasonic CS-PS36RKV

67
14.4.3 H14 (Indoor Intake Air Temperature Sensor Abnormality)
Malfunction Decision Conditions
• During startup and operation of cooling and heating, the temperatures detected by the indoor intake air
temperature sensor are used to determine sensor errors.
Malfunction Caused
• Faulty connector connection.
• Faulty sensor.
• Faulty PCB.

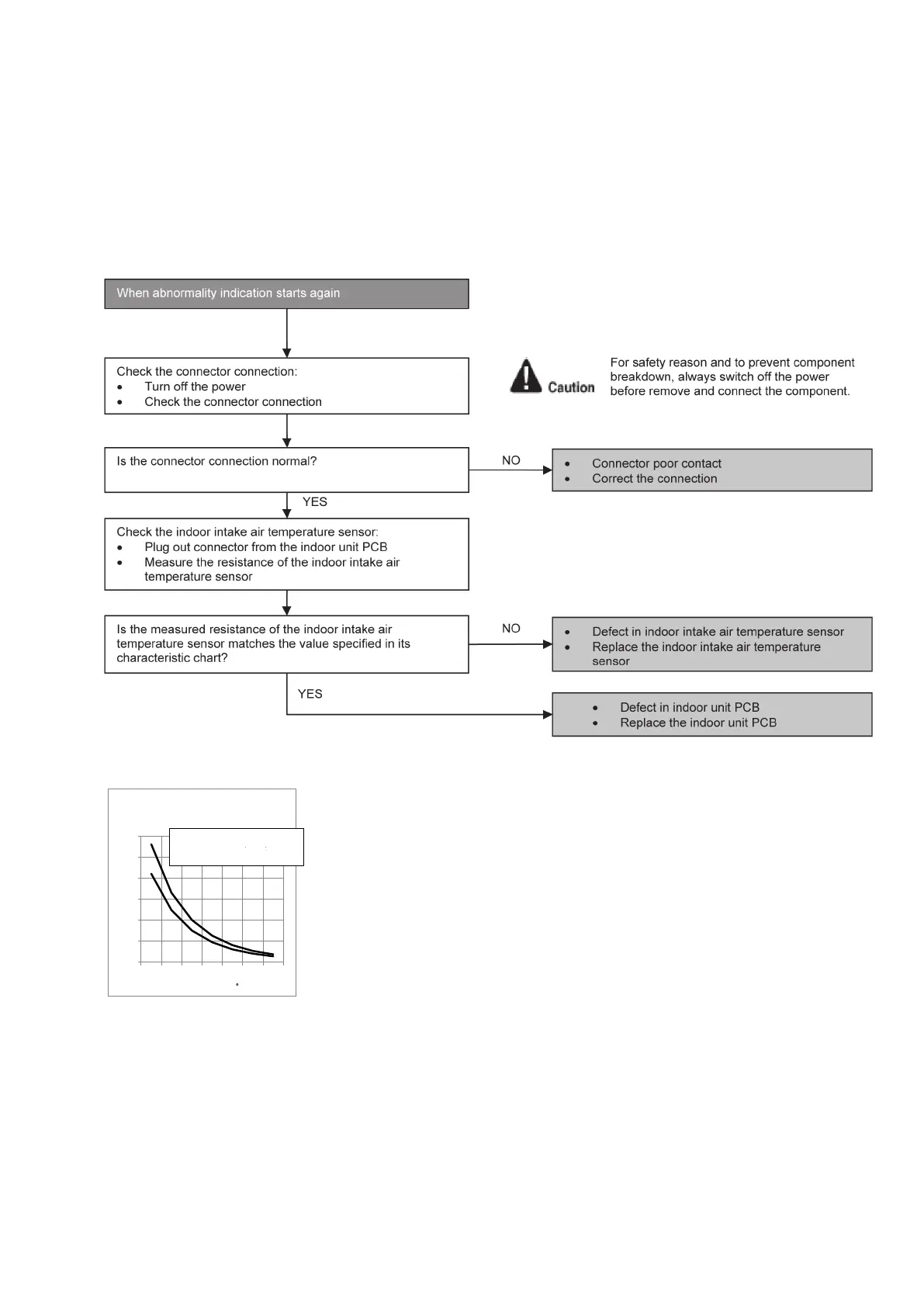

Troubleshooting
Sensor
(Thermistor)
Characteristic
Resistance(kΩ)
Temperature(°C)
Pipe Temp.Sensor
Intake Air Temp.Sensor
-10 112.2 84.15
0 65.92 49.44
10 40 29.99
20 25.02 18.77
30 16.1 12.07
40 10.62 7.968
50 7.17 5.382
0
20
40
60
80
100
120
-10 0 10 20 30 40 50
Resistance(kΩ)
Temperature(°C)
Sensor(Thermistor)
Characteristics
①Pipe Temp.Sensor
②Intake Air Temp.Sensor
①
②
Sensor
(Thermistor)
Characteristic
Resistance(kΩ)
Temperature(°C)
Pipe Temp.Sensor
Intake Air Temp.Sensor
-10 112.2 84.15
0 65.92 49.44
10 40 29.99
20 25.02 18.77
30 16.1 12.07
40 10.62 7.968
50 7.17 5.382
0
20
40
60
80
100
120
-10 0 10 20 30 40 50
Resistance(kΩ)
Temperature(°C)
Sensor(Thermistor)
Characteristics
①Pipe Temp.Sensor
②Intake Air Temp.Sensor
①
②
Sensor
(Thermistor)
Characteristic
Resistance(kΩ)
Temperature(°C)
Pipe Temp.Sensor
Intake Air Temp.Sensor
-10 112.2 84.15
0 65.92 49.44
10 40 29.99
20 25.02 18.77
30 16.1 12.07
40 10.62 7.968
50 7.17 5.382
0
20
40
60
80
100
120
-10 0 10 20 30 40 50
Resistance(kΩ)
Temperature(°C)
Sensor(Thermistor)
Characteristics
①Pipe Temp.Sensor
②Intake Air Temp.Sensor
①
②
