72

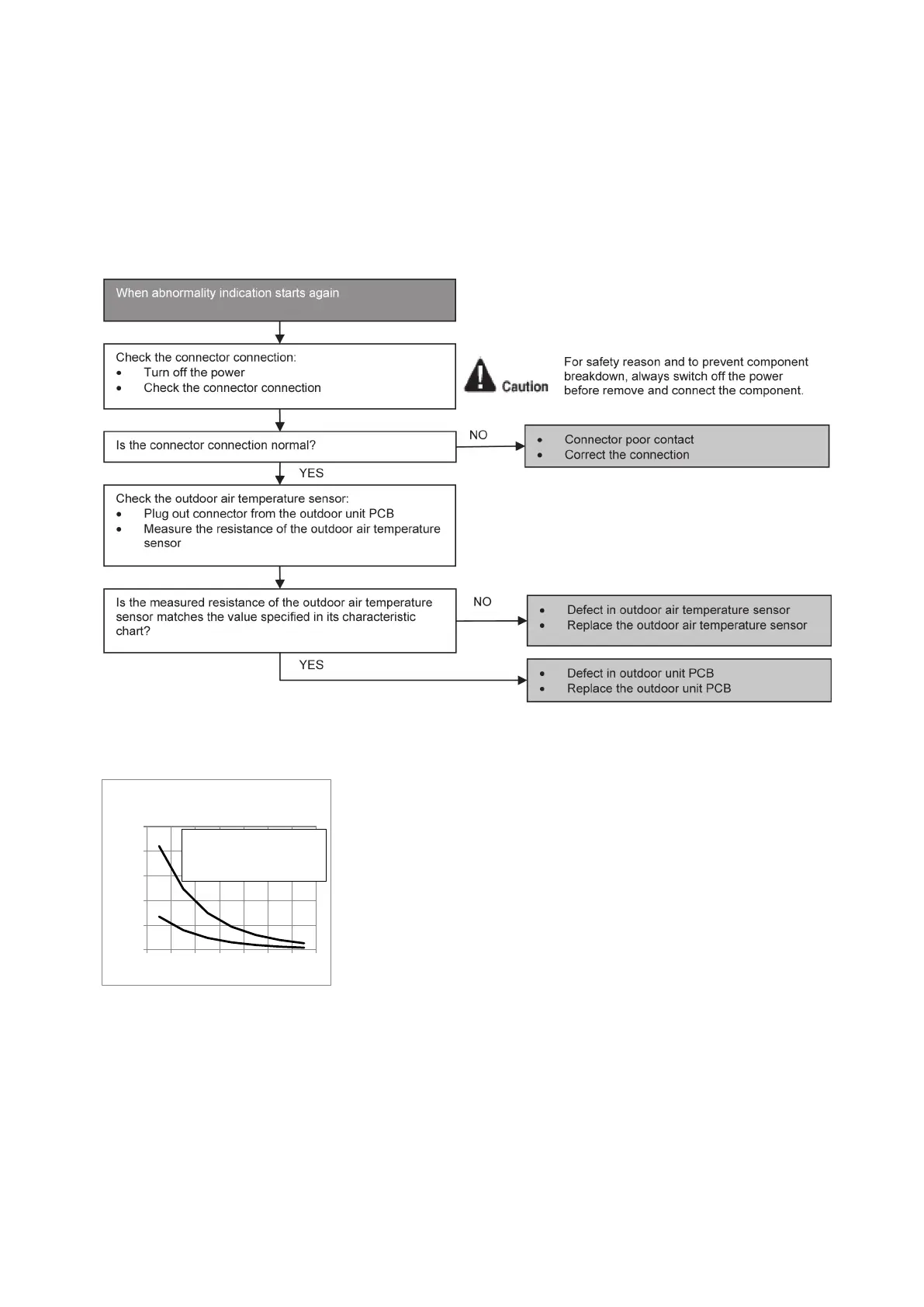

14.4.8 H27 (Outdoor Air Temperature Sensor Abnormality)
Malfunction Decision Conditions
• During startup and operation of cooling and heating, the temperatures detected by the outdoor air temperature
sensor are used to determine sensor errors.
Malfunction Caused
• Faulty connector connection.
• Faulty sensor.
• Faulty PCB.
Troubleshooting
Sensor
(Thermistor)
Characteristics
Resistance(k!)
Temperature(°C) Outdoor Air Sensor Ourdoor Heat Exchanger Sensor
-10 84.15 26.97
0 49.44 15.95
10 29.99 9.741
20 18.77 6.132
30 12.07 3.967
40 7.968 2.632
50 5.382 1.787
Sensor
(Thermistor)
Characteristics
Resistance(k!)
Temperature(°C) Compressor Temp Sensor
20 62.55
40 26.56
60 12.39
80 6.25
100 3.372
120 1.929
140 1.159
!"
#!"
$!"
%!"
&!"
'!!"
('!" !" '!" #!" )!" $!" *!"
!"#$#%&'(")*+,
-"./"0&%10")23,
4"'#506)-7"0.$#%50,6
37&0&(%"0$#8(#

+,-.//0"120"3456/0"

+,0.//0"748-"9:;<85=40""
3456/0


!"
'!"
#!"
)!"
$!"
*!"
%!"
>!"
#!" $!" %!" &!" '!!" '#!" '$!"
!"#$#%&'(")*+,
-"./"0&%10")23,
Compressor Temp
(Thermistor)
Characteristics
47
