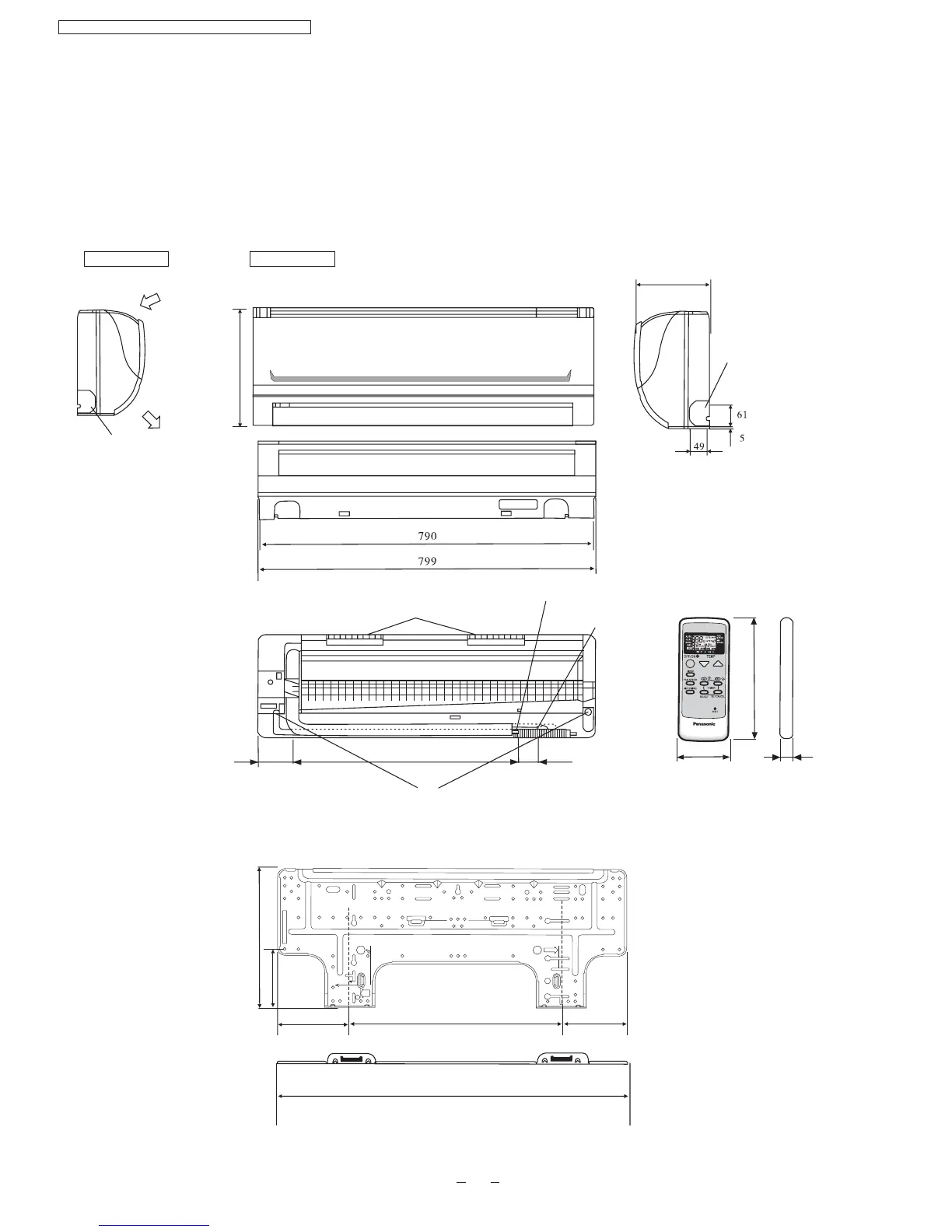

4 Dimensions
10
CS-PW9DKE / CU-PW9DKE / CS-PW12DKE / CU-PW12DKE
Indoor Unit
B
A
254
(631)
(382) (118)
(131)
95
(420)
(50)
Front View
<Back View>
Installation Plate Hook
Gas Side
Liquid
Side
Drain Port
Air intake
280
Side view
183
Air outlet
Left Piping
Hole
Right Piping
Hole
(100)
141

57
Unit:mm
Installation plate (Front View)
CS-PW9DKE
CS-PW12DKE
