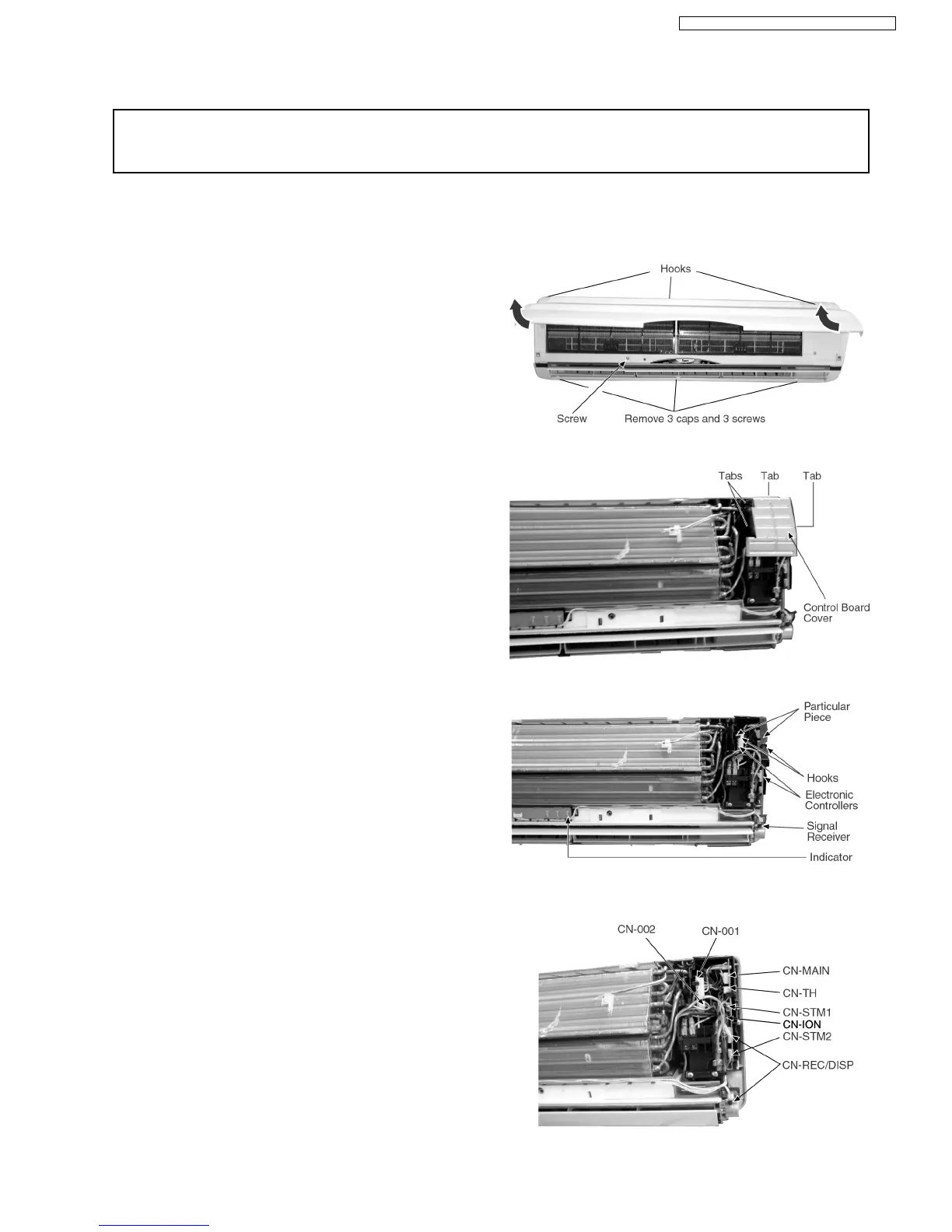

1. The Electronic Controller, a Signal Receiver and an
Indicator (Fig. 3) can be seen by the below steps:
Open the Intake Grille and remove the screw at the front
of the Front Grille. (Fig. 1).
Remove the 3 caps and 3 screws at the bottom of the
Front Grille. (Fig. 1)
Remove the Front Grille by releasing the 3 hooks at the
top of the Front Grille. (Fig. 1)
Unhook the tabs at the Control Board to remove the
Control Board Cover. (Fig. 2)
2. To remove the Electronic Controllers:
Release the 2 Particular Piece. (Fig. 3)
Release the CN-REC/DISP connectors. (Fig. 4)
Release the CN-TH connector. (Fig. 4)
Release the CN-MAIN connector. (Fig. 4)
Release the CN-001 connector. (Fig. 4)
Release the CN-002 connector. (Fig. 4)
Release the CN-STM1 connector. (Fig. 4)
Release the CN-STM2 connector. (Fig. 4)
Release the CN-ION connector. (Fig. 4)
Release the hooks that hold the Electronic Controller.
(Fig. 3)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
12 Servicing Information
Caution:
Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use
a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F(3710°C).
Pb free solder will tend to splash when heated too high (about 1100° F/600°C).
12.1. Indoor Electronic Controllers Removal Procedures
59
CS-V18CKE CU-V18CKE / CS-V24CKE CU-V24CKE
