20.3.2 CS-Z42TKR CU-Z42TKR CS-Z50TKR CU-Z50TKR

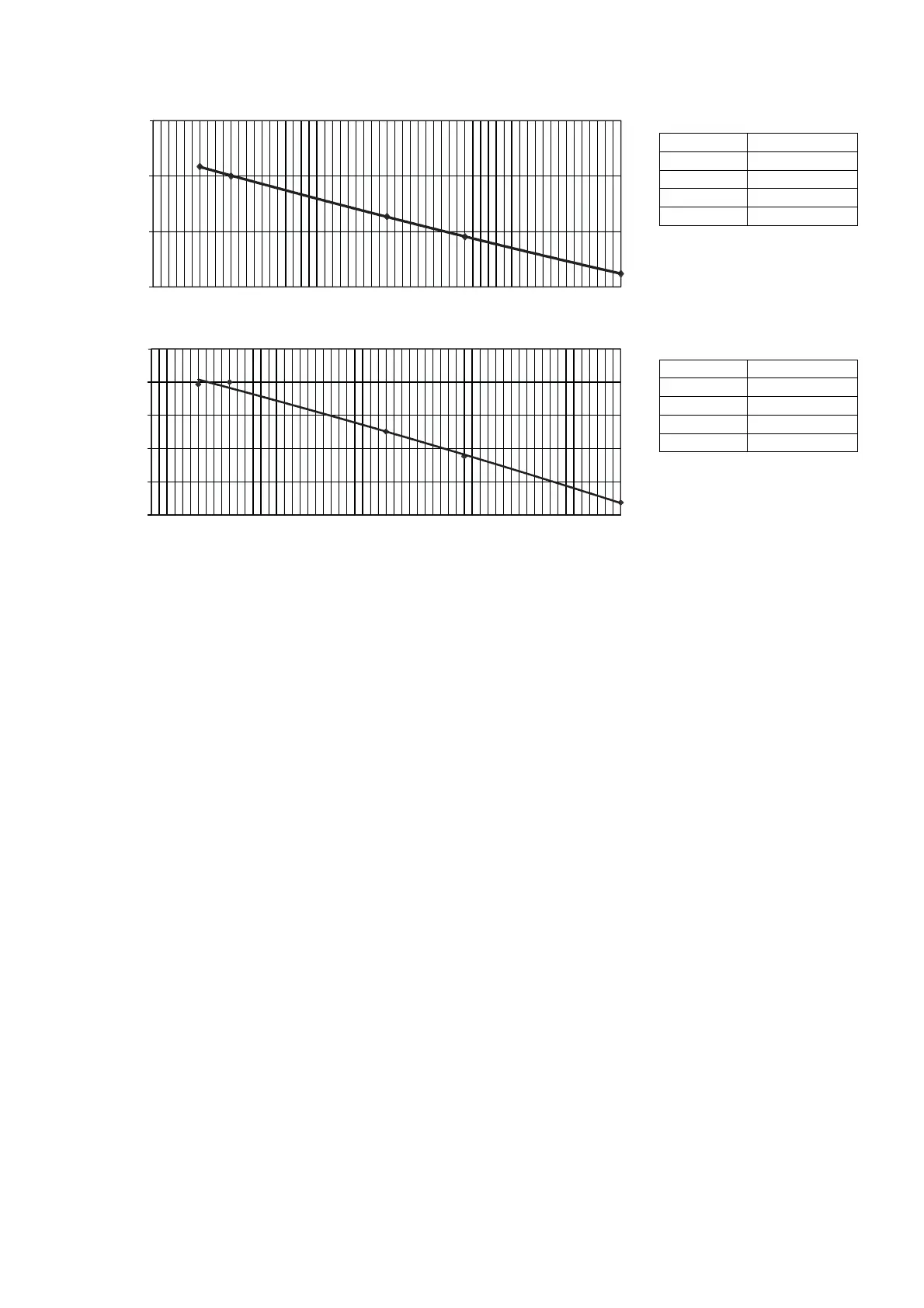

Cooling Capacity
Correction Factor
Pipe Length (m)
0.90
0.95
1.00
1.05
012345678 9 101112131415161718 19 20 21 22 23 24 25 26 27 28 29 30
Cooling Capacity
3 1.0086
5 1.0000
15 0.9635
20 0.9452
30 0.9119
Heating Capacity
Correction Factor
Pipe Length (m)
0.80
0.85
0.90
0.95
1.00
1.05
012345678 9 101112131415161718 19 20 21 22 23 24 25 26 27 28 29 30
Heating Capacity
3 0.9967
5 1.0000
15 0.9256
20 0.8883
30 0.8188
Note: The graphs show the factor after added right amount of additional refrigerant.
