20.3.3 CS-Z60TKR CU-Z60TKR CS-Z71TKR CU-Z71TKR CS-Z80TKR CU-Z80TKR

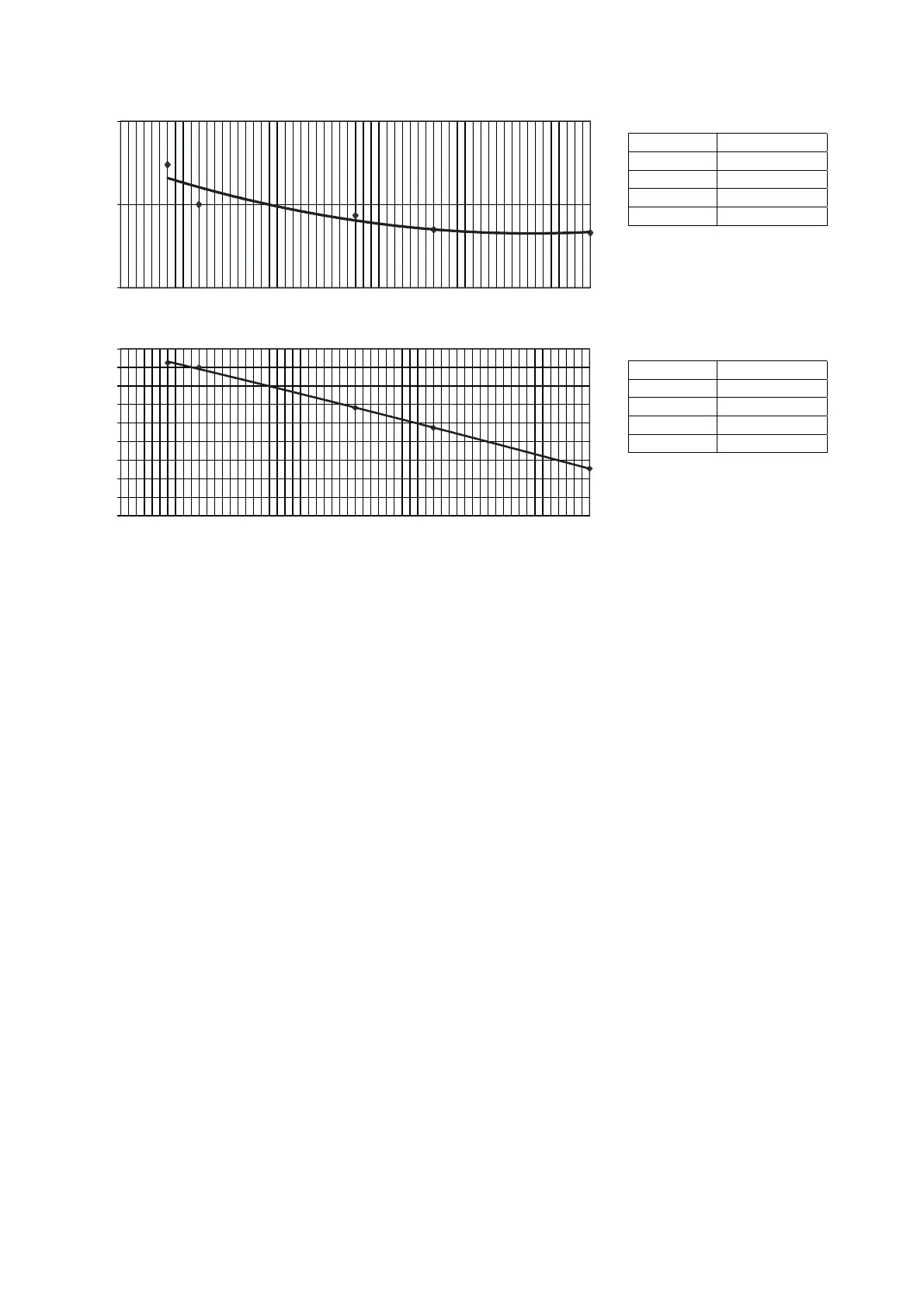

Cooling Capacity
Correction Factor
Pipe Length (m)
0.95
1.00
1.05
012345678 9 101112131415161718 19 20 21 22 23 24 25 26 27 28 29 30
Cooling Capacity
3 1.0239
5 1.0000
15 0.9934
20 0.9849
30 0.9830
Heating Capacity
Correction Factor
Pipe Length (m)
0.60
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
012345678 9 101112131415161718 19 20 21 22 23 24 25 26 27 28 29 30
Heating Capacity
3 1.0120
5 1.0000
15 0.8910
20 0.8370
30 0.7270
Note: The graphs show the factor after added right amount of additional refrigerant.
