B. If Remote Controller Cable is Exposed

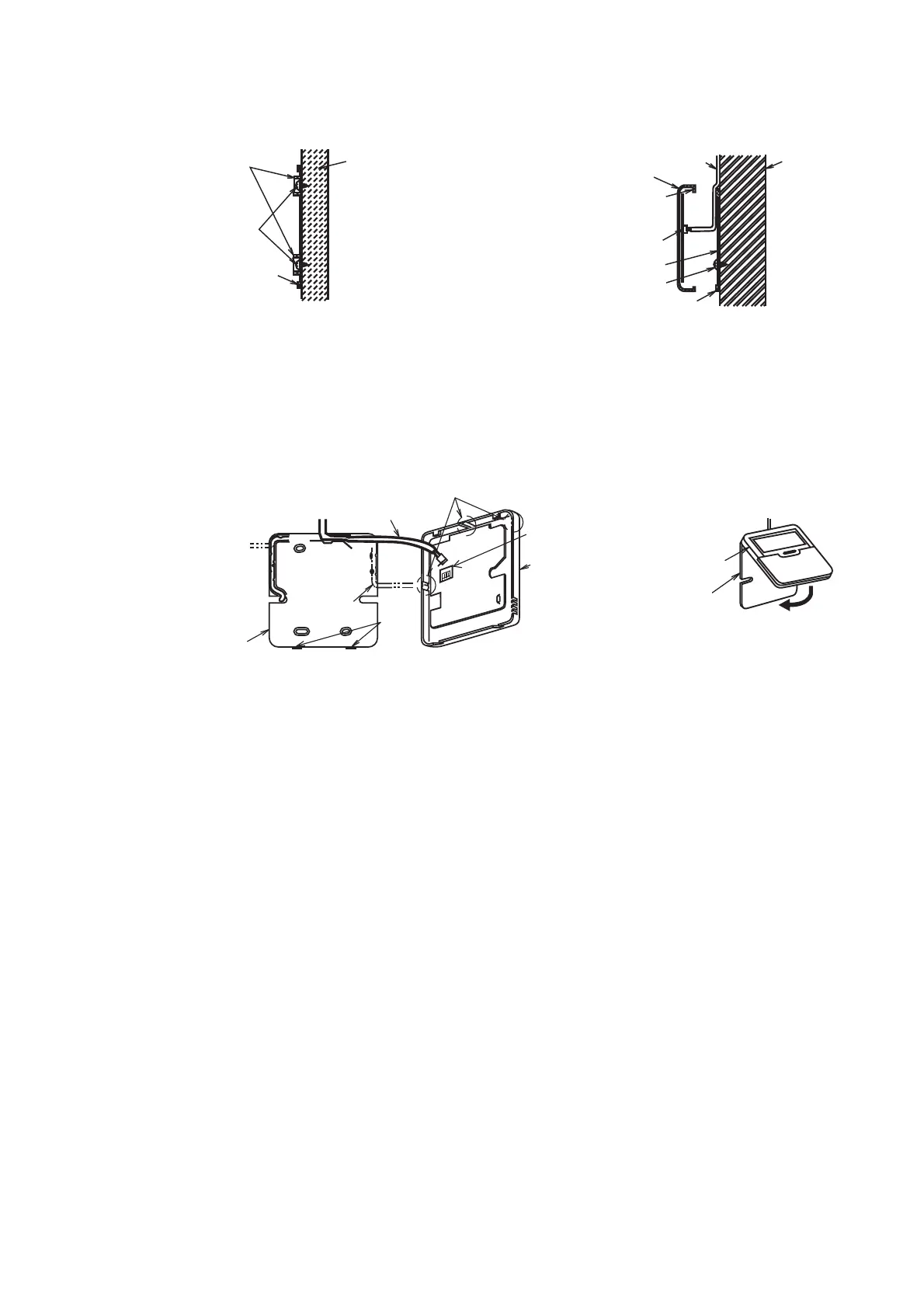

1 Install the remote controller lower case to the wall with the two accessory screws 4.
2 Fasten the screws properly until screw head is lower than the rib and reach the base of remote controller
lower case to ensure they do not damage the PCB inside the remote controller 1.
Wall
Upper case
Upper tab
Lower case
Scews 4
Lower tab
Remote controller cable 2
Connector (CON1)
Rib
Screws 4
Wall
Remote
controller lower
case
3 The feeding-out direction for the remote controller cable can be either via top, left or right side.
4 Use nipper to cut a notch at the upper case. (Select the intended feeding-out position)
5 Route the remote controller cable 2 inside the lower case in accordance with the intended feeding-out
direction. (Refer to the illustration at below)
6 Insert firmly the connector of remote controller cable 2 to connector (CON1) in the upper case circuit board.
(Refer to the illustration at below)
7 Secure the remote controller upper case to the lower case with the tabs provided.
