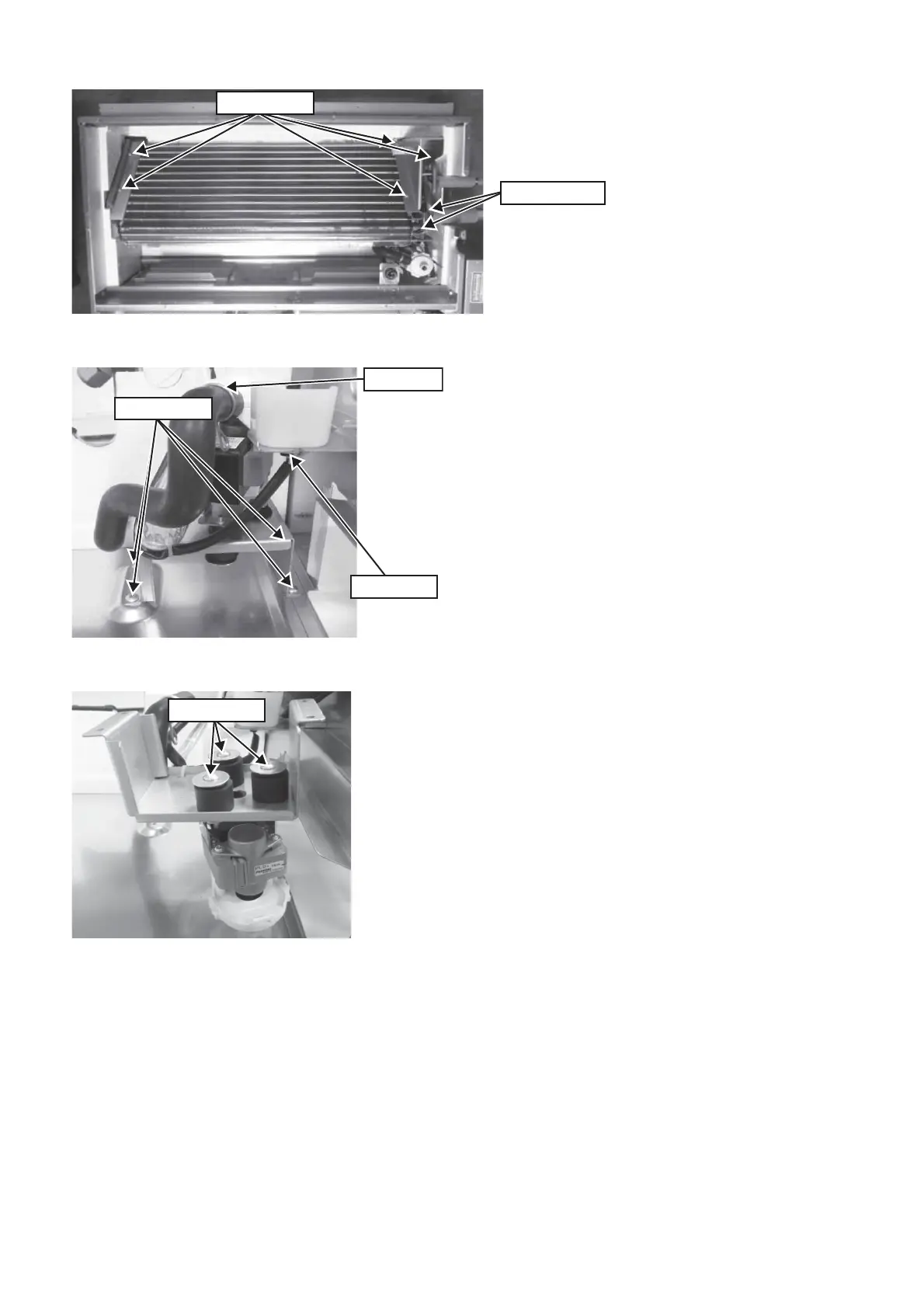

2 Unscrew 5 screws on the Evaporator and remove 2 sensor from holder and remove Evaporator from the unit.
Remove Screw
Remove Sensor
3 Unscrew 4 screws, 1 nut and 1 Spring Clip on the Drain Motor Bracket and remove Drain Motor from unit.
Remove Nut
Spring Clip
Remove Screw
4 Unscrew 3 screws on the Drain Motor and detach the Drain Motor from Drain Motor Bracket.
Remove Screw
